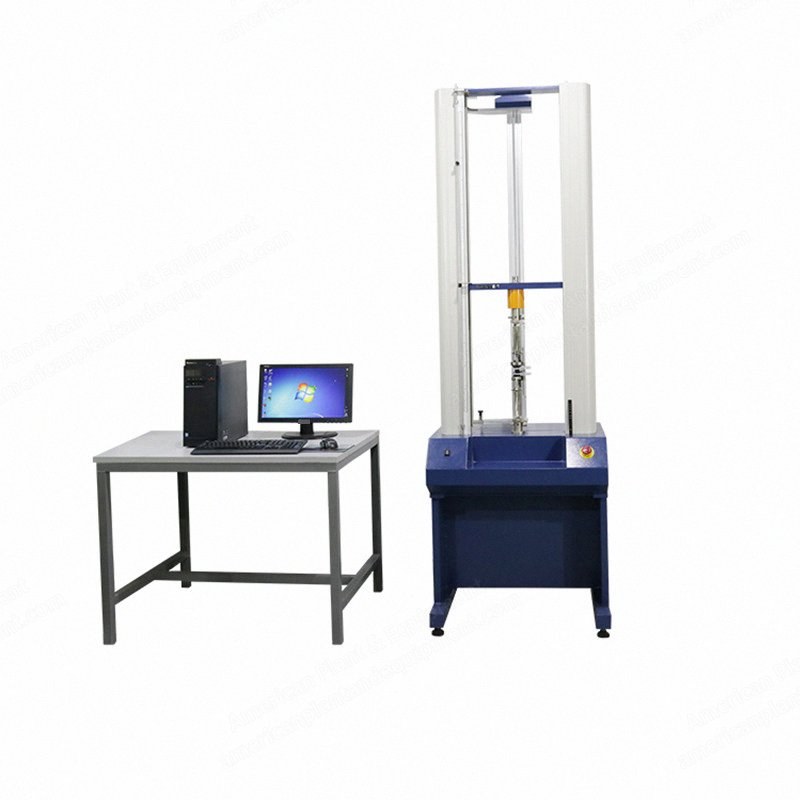

NovaStar, MC267, Dual Column Computerised Universal Testing Machine, 300 kN Capacity, 400mm Test Width (New)

NovaStar, MC267, Dual Column Computerised Universal Testing Machine, 300 kN Capacity, 400mm Test Width

Description

  1. Overview
    1. Dual column universal testing machine with customizable fixtures.
    2. Maximum capacity up to 300 kn.
    3. Offers CE certificate and ISO17025 calibration certificate.
    4. Designed for conducting tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for shoes, rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.
    5. Basic equipment for quality control, receiving inspection, physical test, mechanics research, material development.
    6. Performs tension, compression, flexure/bending and shearing for specimens.
    7. Suitable for metal and nonmetal material, such as iron, steel, steel bar, rebar, rod, spring steel, wire, cable and so on.
    8. Matched with various test fixtures, like peal, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used for metal, non-metal, composite material like rubber, steel wire, plastic, seat belt, textile character test.
  2. Power System
    1. Servo motor and servo drivers and worm gear and rod reducer and ball screw.
    2. Machine drive: servo motor drive, synchronous wheel and precision ball screw drive.
  3. Control System
    1. Adopting pulse command control method, it will be more accuracy and easy to control.
    2. Data transmission mode: RS232 transmission.
    3. Can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode which can meet the test requirements of the ordinary.
    4. Display: computer display mode.
  4. Specifications
    1. Maximum capacity: 5 kn, 10 kn, 20 kn.
    2. Force resolution: 1/100,000.
    3. Force accuracy: ≤ +/-0.5%.
    4. Stroke resolution: 0.001 mm.
    5. Extensometer resolution: 0.001 mm.
    6. Test speed: 0.001-1000 mm/min.
    7. Speed control range: 0.001-500 mm or 0.001-1000 mm/min (option).
    8. Walking space: 1400 mm (it can be custom-tailor according to their requirements).
    9. Testing space: test width is 400 mm (standard).
    10. All plate walking space: 1500 mm (excluding fixture, according to the customer requirements).
    11. Force unit switch: kgf, N, ibf, g, ton, MPa.
    12. Power supply: AC 220 V 50/60 Hz 10 A.
    13. Dimensions: 1100 x 700 x 2400 mm (W x D x H).
    14. Weight: 370 kg.
  5. Features
    1. The intermediate plate adjustment is both fast coarse and slow fine-tuning.
    2. It will return to original site and save automatically after testing.
    3. The entire displacement: the encoder is 1800 P/R, it can improve 4 times accuracy.
    4. Using the line drive encoder strong anti-interference ability displacement resolution 0.001 mm.
    5. Safety device: overload emergency stop device, up and down stroke limit device, leakage automatic blackout system, automatic breakpoint stop function.
    6. Stop mode: overload stop, emergency stop button, specimen damage automatic stop, upper and lower limit set automatic stop, automatic reset function.
  6. Included Accessories
    1. 1 set - manual grips.
    2. 1 pc - English operation software.
    3. 1 pc - cable connect with PC.
    4. 1 set - extensometer.
  7. Optional Accessories
    1. Desk top computer.
    2. Other grips.
