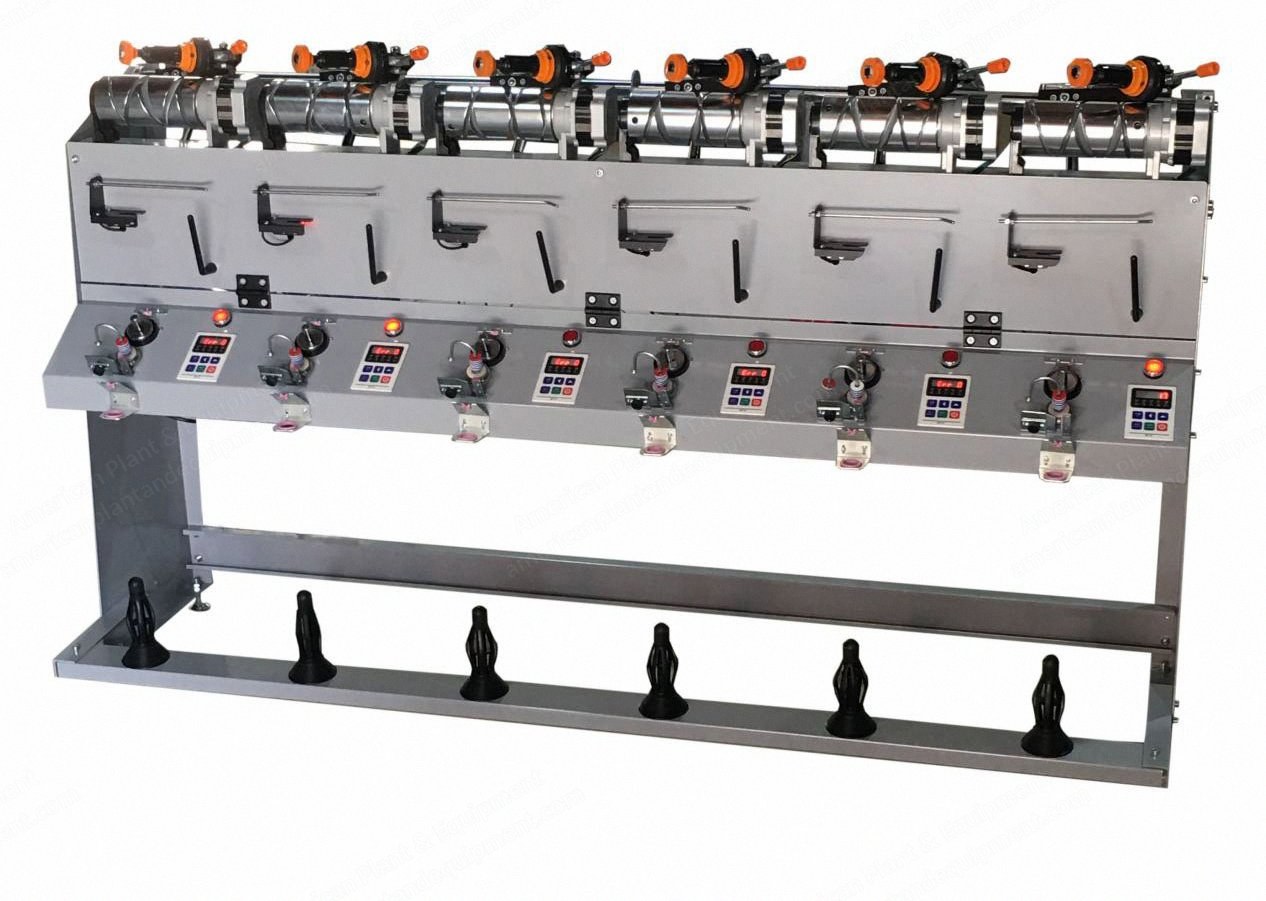

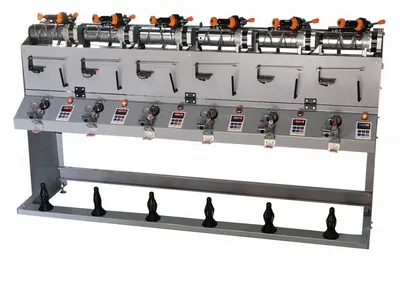

Mechanical speed: maximum 1000 meters per minute (depending on yarn quality and count), minimum speed 100 meters per minute
Package bobbin: 0°, 3°30’, 4°20’, 5°57’, 9°15'
Package diameter: up to φ 290mm
Package weight: up to 3 kg
Yarns / count: cotton, flax, wool, silk, chemical fiber / ne 6 to ne 180
Power consumption: installed power 100 watts per spindle, power consumption 65 watts per spindle
Automatic length setting: maximum 999999 meters
Slow start for smooth start and better winding quality, supporting individual slow start for each spindle
External dimensions: 1860mm x 440mm x 1140mm
Weight: 1 spindle 80 kg, 2 spindles 120 kg
Power supply: 1 phased 220 volts, 50/60Hz
Crated weight: 180 to 200 kg
Features
Using high quality alloy drums with optimized groove shape, which has the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination
Single winding motor control for each spindle, electronic fixed-length and single spindle automatic stop while yarn breaking or fully filled
High-speed creel with gas spring, which can keep constant winding pressure; this creel is stable and reliable
Auto stop while yarn break: with electronic yarn sensor, the spindle will stop when yarn breaks
Optional Equipment
Electronic yarn clearer
Air splicer
Travelling blower/suction unit, power consumption 1.1 kw
