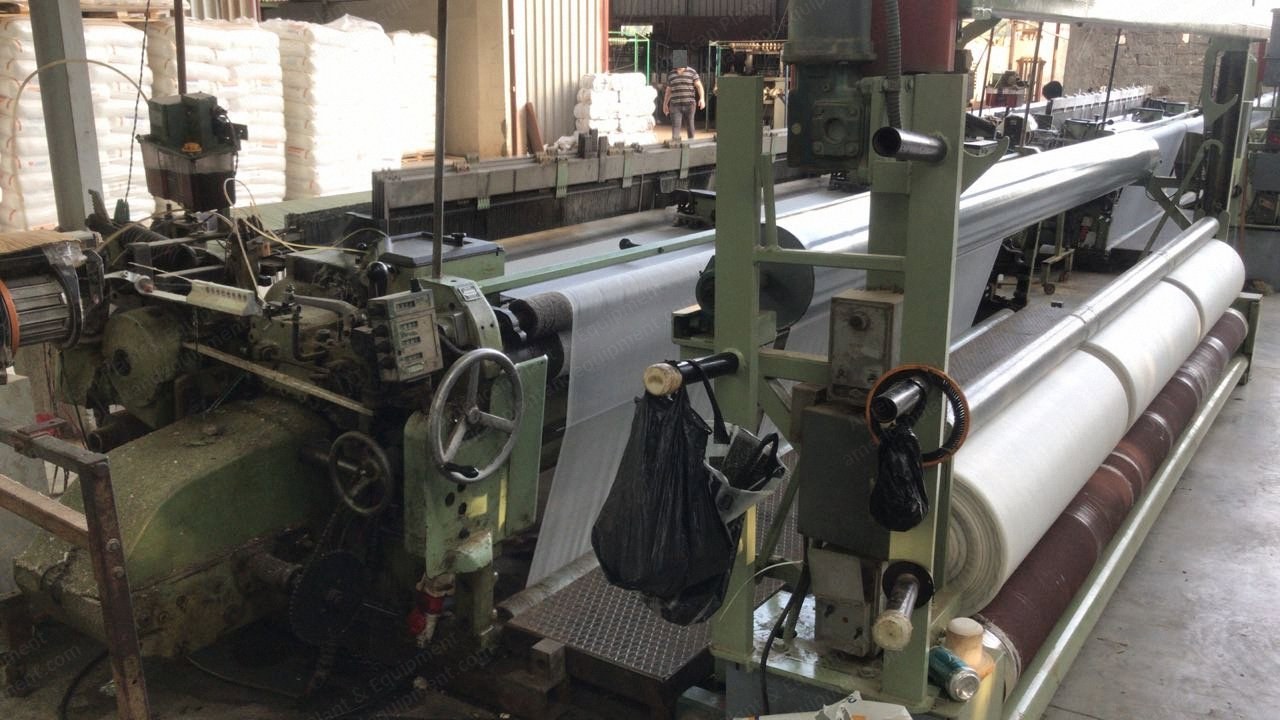

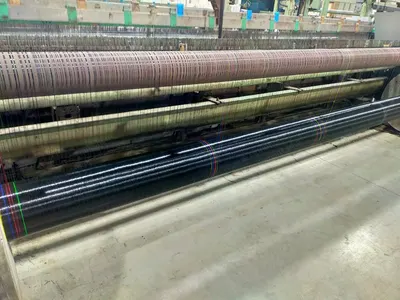

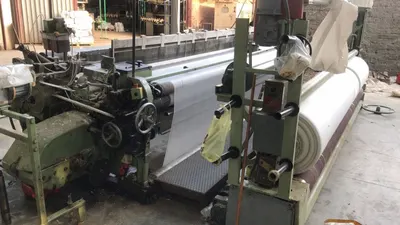

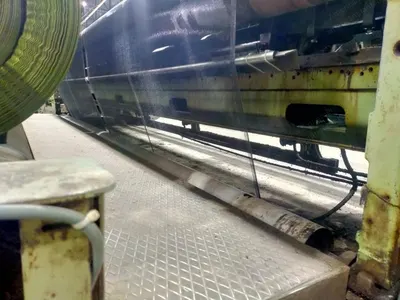

Description Overview Working width 173 inches (4400 mm) Model: TW11 ES 105 E10 – mechanically upgraded to P7100 for higher speed Year: 1972 to 1976 Single color cam motion Single color filling insertion ES Specifications 1 set of lateral TL tuckers FA & SA, 1 center tucker TLL 4 harness frames, 13 inch 4 undermotion installed 4 cams installed, max capacity 10 cams (E10) 1 el. filling feeder with creel 1 duck bill (spoon) filling brake or loepfe PP brake if installed 1 warp stop motion with 4 contact bar min. 2 half beams with 940 mm flanges 1 electronic let off with set up for split beam 1 heavy duty off loom take up with top pressure roller Droppers and heddles as installed (but min. 2000) Conversion To P7100 From TW11 19 mm torsion rod, torsion tube Picking shaft (hollow version) Back plate for picking unit 37 mm picking lever, barrel cam modified to accept larger roller Firing cam, firing cam rollers (020, roller holder) hollow shaft bushing (brass) Hollow shaft shims and seal P7100 oil brake Projectile brake, bottom plate modified to thicker P7100 brakes Condition Currently running
