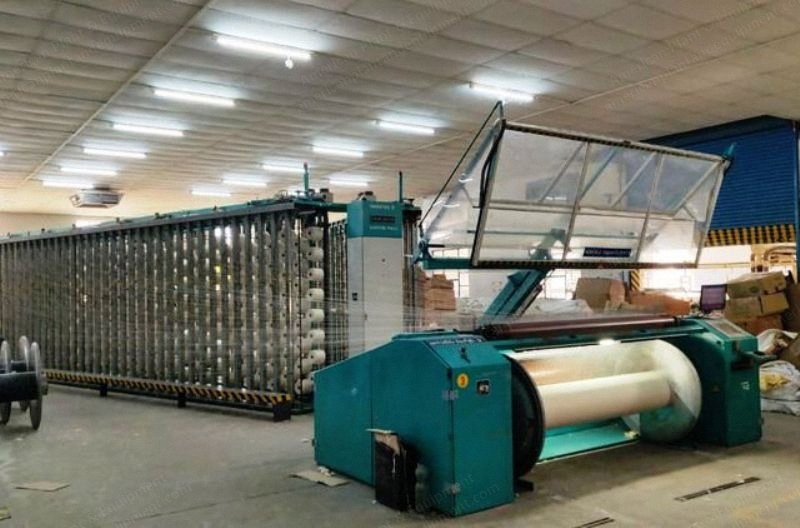

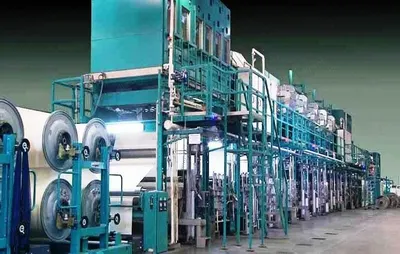

Description Overview Production capacity: 26,000 meters per day x 30 = 750,000 meters per month 15.5 ons, 24 hours 9,360,000 (10 million) meters per year Total length of machine: 77,000 mm Total width of machine: 5,200 mm Item 001: Direct Warping Machine Brand: Karl Mayer Year: 2005 Width: 1,800 mm Diameter: 1,100 mm Speed: 650 m/min V creel with 2,400 spindles Warp beam: aluminum, original, 24 units Item 002: Indigo Denim Coloring Plant Brand: HTP Karl Mayer Year: 2005 Working width: 1,800 mm 16 beams 13 box dyeing/coloring devices 1 coloring stocking dosing group Speed: 28 m/7 min Complete Item 003: Entry Creel Trademark: HTP Karl Mayer Year: 2005 Entry creel with 14 beams and pneumatic brake Beam diameter: 1,400 mm Beam length: 1,800 mm Roll width: 2,000 mm Item 004: Dyeing Section 1 box prewetting rubber roll, 10 ton each 2 box washing (double squeezing) 4 box indigo dyeing 1 box double squeezing indigo dyeing reactor with nitrogen and steamer (closed box, also for black dyeing) 1 box washing with double squeezing 1 topping box 10 box indigo circulation with 3 pumps, 60 ton 2 washing box with double squeezing 3 chemical dosing tanks, capacity 1,200 lt, with double pumps (one active, one standby) 1 chemical box level control, 2 chemical box dosing with flowmeter 1 tank for preparation tank 1 section caustic soda tank and pump 1 sodium hydrosulphite feeding system Pre-drying section with teflon coated 8 drying cylinders, 800 mm diameter Non-stop yarn accumulator with 41 rolls, yarn capacity 100 mts Item 005: Sizing Section 1 box sizing box (double nip double dip) 12 drying cylinders for sizing (4 drying cylinders teflon coated) 1 small accumulator for nonstop working Moisture control Beam delivery section with working length 2,600 mm, diameter 1,100 mm 4 reserve tanks, capacity 10 ton each 1 sizing dosing tank, capacity 1,200 1 number size cooking tank, 1,000 lt Complete line
