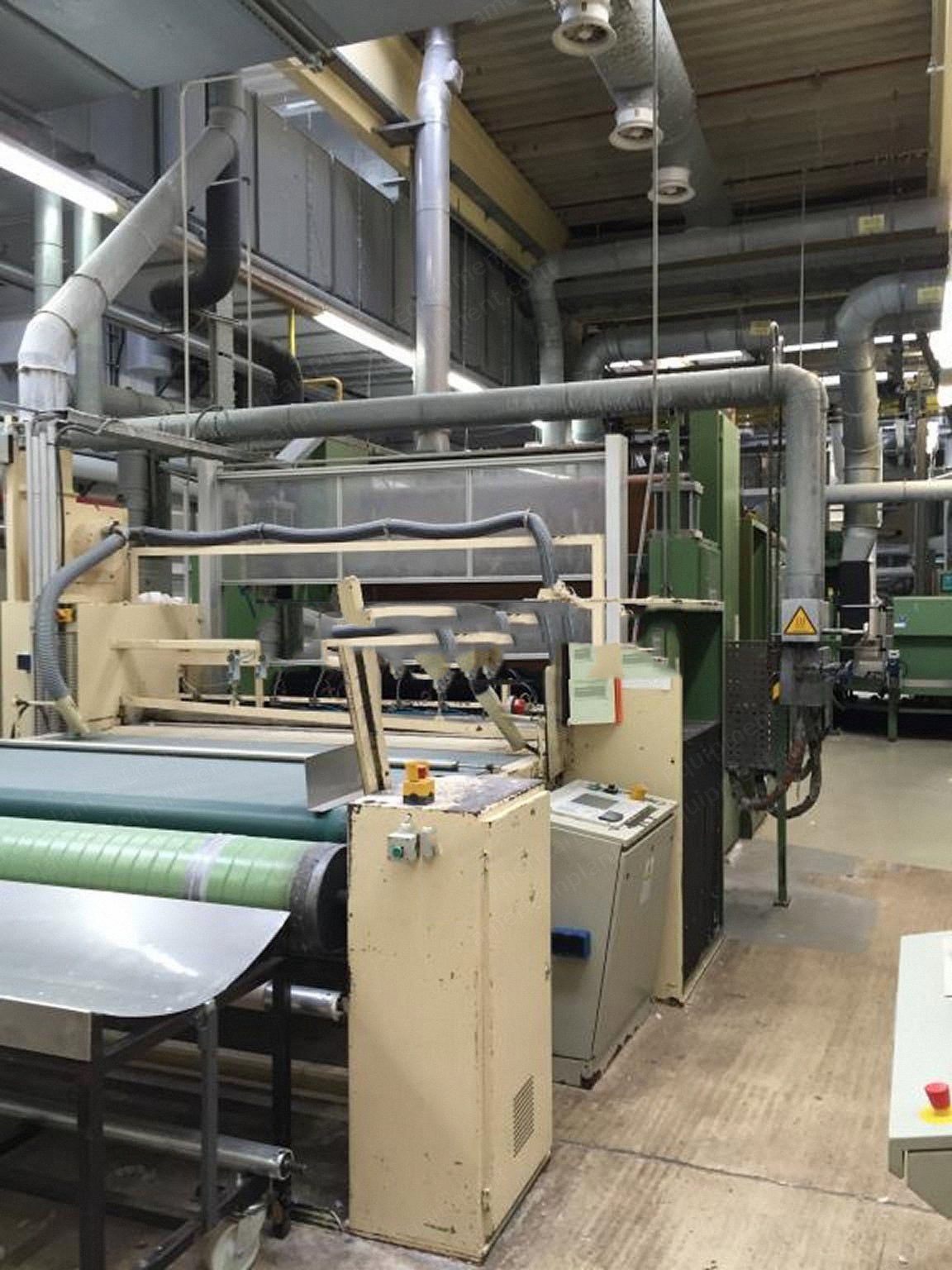

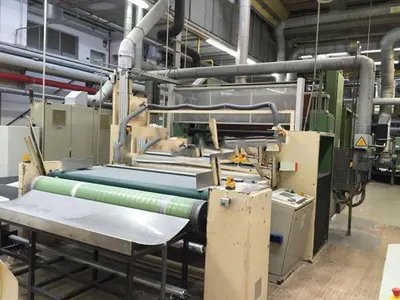

Trutzschler, Hergeth, Schott & Meissner Thermobond Line, 1995, 2500mm, 300 kg/hr

Trutzschler, Hergeth, Schott & Meissner Thermobond Line, 1995, 2500mm, 300 kg/hr

Description

  1. Overview
    1. Trutzschler/Hergeth/Schott & Meissner thermobond line
    2. Width: 2500 mm
    3. Year: 1995 to 1998
    4. Electrical: 380/3/50
    5. Complete thermobonding line, maximum speed 15 m/min, capacity up to 300 gsm, throughput up to 300 kg/hr depending on type of fiber, currently running a blend of cotton and viscose.
  2. Weighing And Blending Section

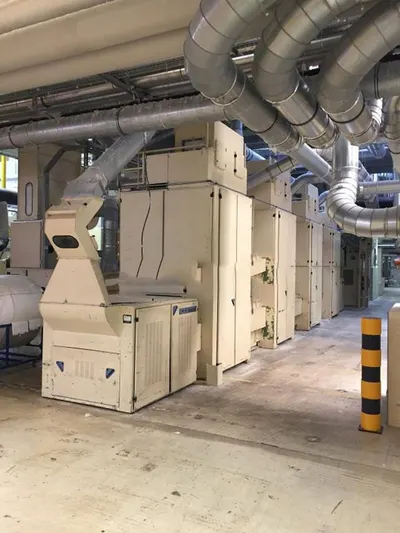

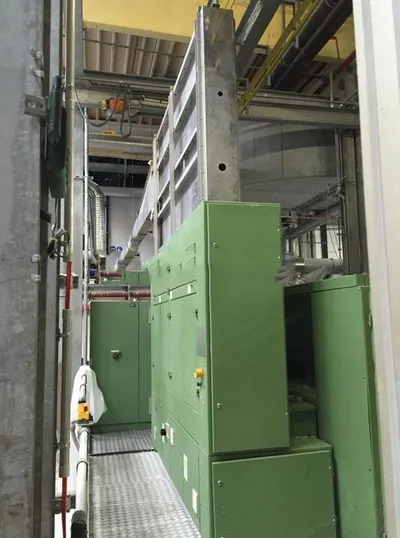

    1. 4 x Trutzschler PWSE weighing towers, working width: 1200 mm, with mechanical weight feeders, fed by condensator
    2. 1 x collection belt
    3. 2 x Trutzschler FM tuftblenders (one on each end of the conveyor belt)
    4. 1 x magnet trap + 1 x TV425 fan and including Trutzschler WC weightcommander. All equipment from 1995.
  3. Opening And Feeding

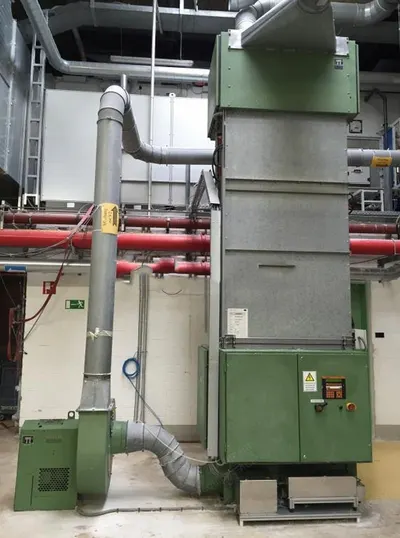

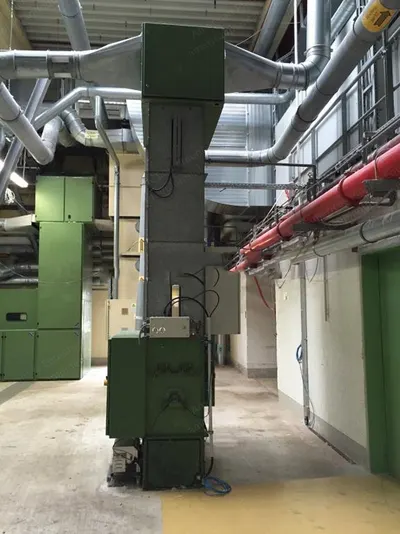

    1. 1 x TFV4 fine opener, 4 cylinders, working width: 1200 mm, including BE1200 feeding tower, fed by condensator and TV425 fan, year: 1997
    2. 1 x Hergeth FS/5 feed tower, working width: 1200 mm, year: 1995, fed by condensator
    3. 1 x Hergeth MC/W masterchute, working width: 2500 mm, year: 1996
  4. Card And Web Forming

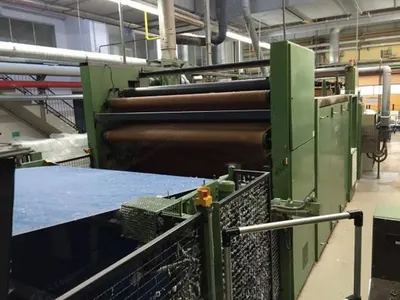

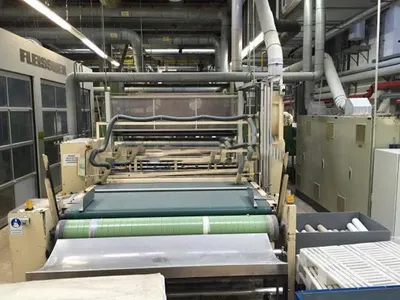

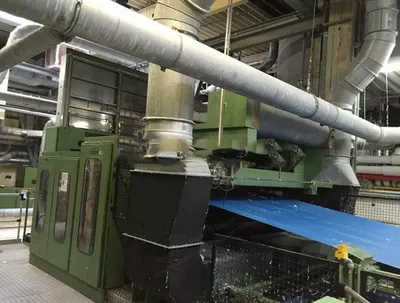

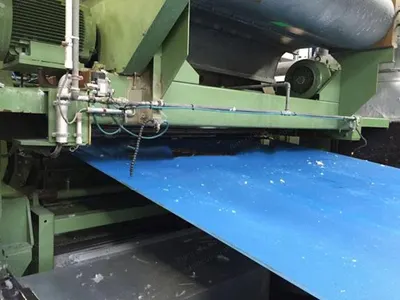

    1. 1 x Hergeth card, working width: 2500 mm, year: 1995, including also weighing belt, blowing fan and suction fan for aerodynamic web forming with turbo roll.
  5. Oven

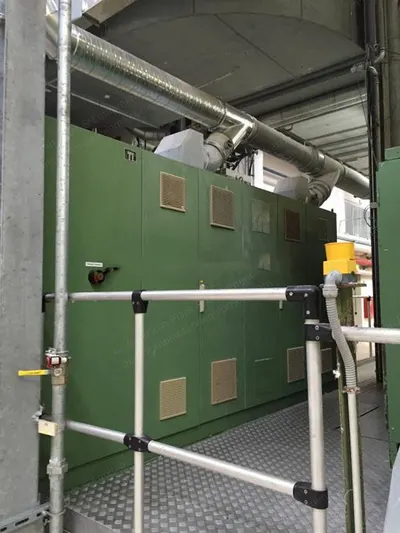

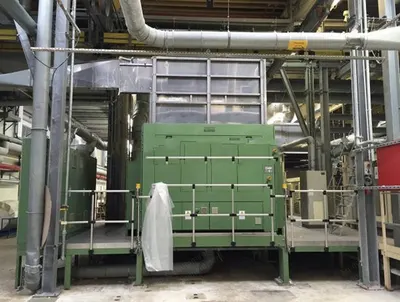

    1. 1 x Schott & Meissner Topcon LP oven, working width: 2500 mm, year: 1995, gas heated, single burner up to 350 kW, circulation fan 15 kW or 15,000 m3/hr, including cooling chamber with separate exhaust fan, double belt - max gap 20 mm.
  6. Calender

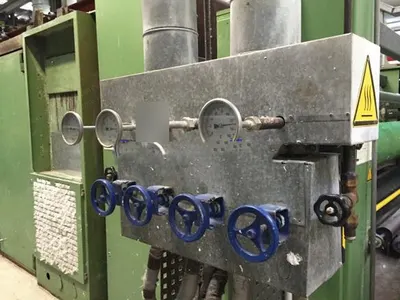

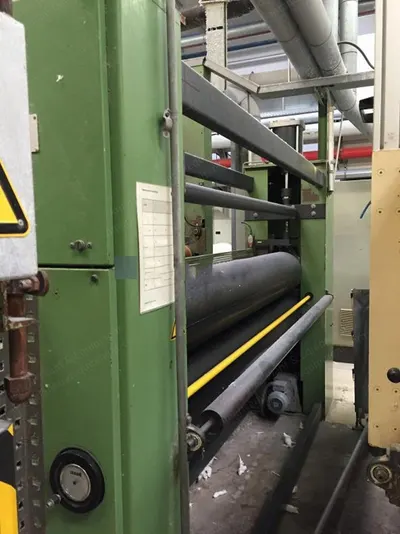

    1. 1 x Schott & Meissner smoothing calender, working width: 2500 mm, year: 1998, pressure 4 tons on full width, thermo-oil heated (boiler not included), 2 cylinders, fabric guiding with two guide rollers for s-guiding as well as feed table for tensionless infeed.
  7. Slitter And Cross-Cut

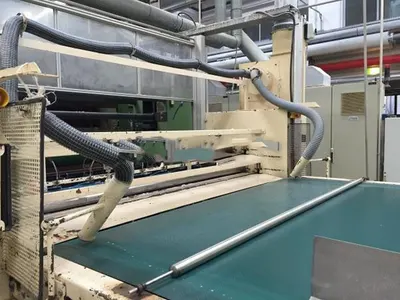

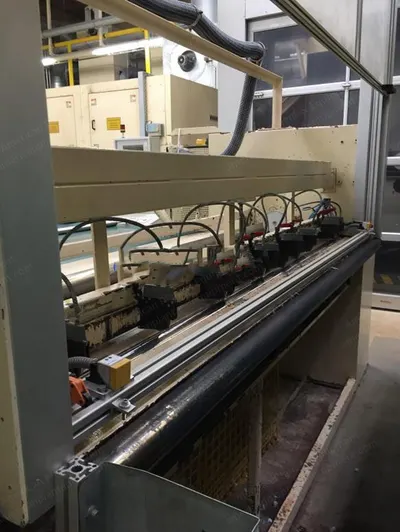

    1. 1 x Schott & Meissner slitter and cross-cut, working width: 2500 mm, year: 1995, including 10 circular knives, cross-cut with 130 mm diameter circular blade, selvedge suction on both sides with central opening fan.
  8. Winder

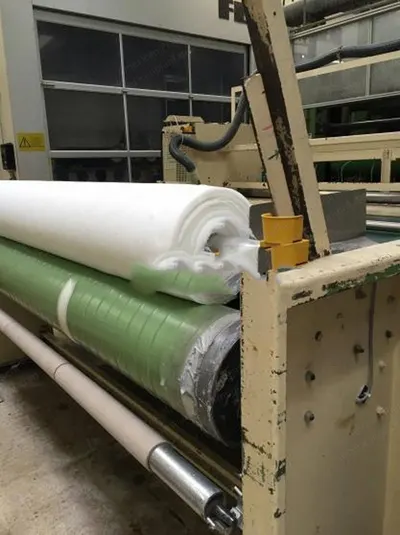

    1. 1 x Schott & Meissner inclined batch winder with one driven roll and one driven belt, working width: 2500 mm, year: 1998, max winding diameter 1500 mm.
