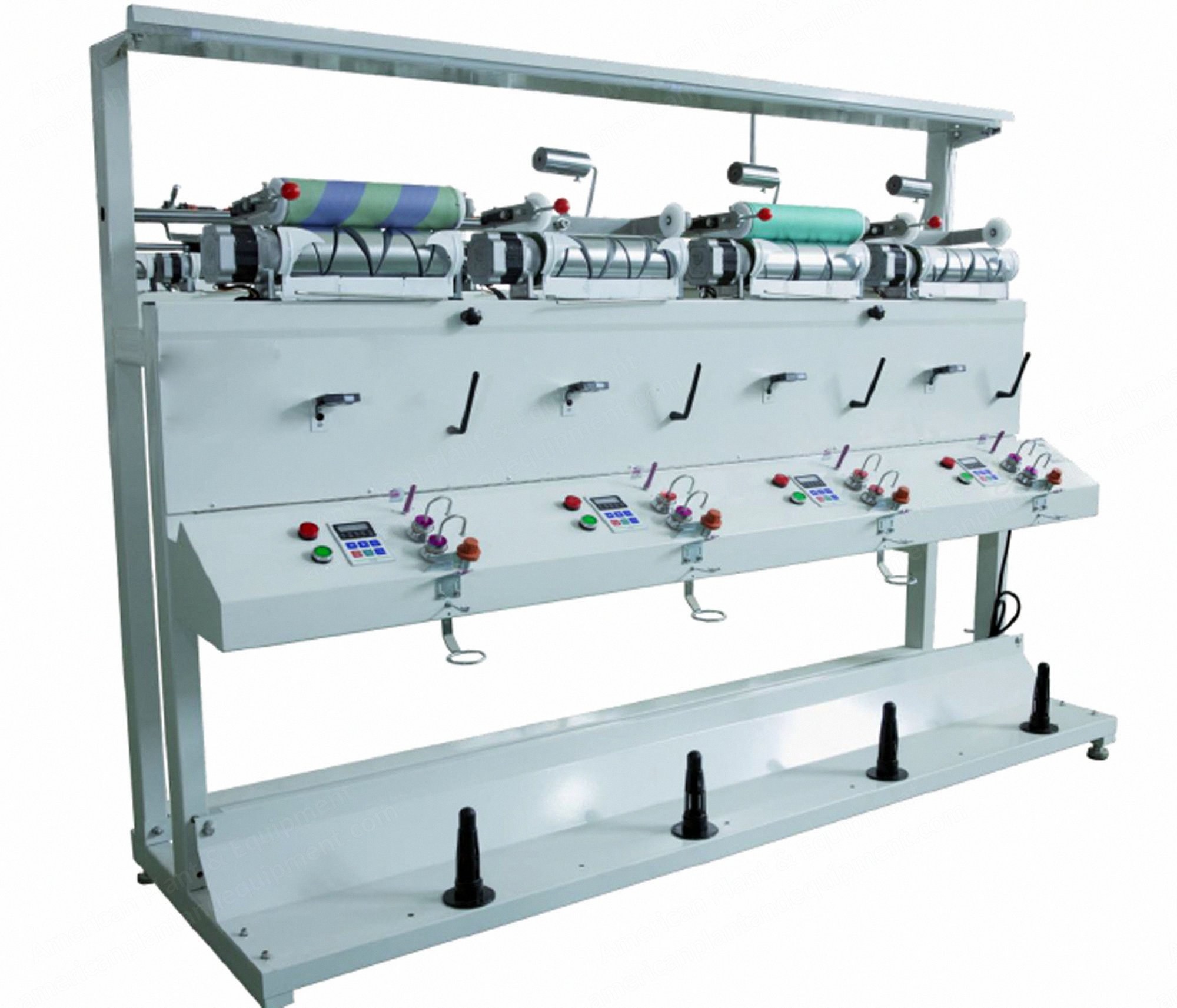

NovaStar, WN319, High Speed Bobbin Winding Machine, Traverse 250mm, 4 Spindles per Side (New)

NovaStar, WN319, High Speed Bobbin Winding Machine, Traverse 250mm, 4 Spindles per Side

Description

  1. Overview
    1. High speed bobbin winding machine
    2. High speed large package winder, used in chemical fiber, cotton yarn, industrial filament, low elastic yarn, mop line, winding into a conical or cylindrical, for the next process, good forming, high efficiency, without the phenomenon of edge collapse, type high-speed automatic function to alleviate the labor intensity of the process, adaptation high speed production
    3. Elastic type: the yarn bobbin inverted into a soft, for the next process (high temperature and high pressure dyeing machine)
  2. Specifications
    1. Size: 1920 x 850 x 1500 mm (1 side); 1920 x 1200 x 1500 mm (2 sides)
    2. Configuration: 4 spindles per set (1 side); 8 spindles per set (2 sides)
    3. Bobbin spec: 10" (280 mm to 300 mm)
    4. Traverse: 250 mm
    5. Take-up package: cylindrical (0°); cone, can winding 8 kg yarn
    6. Power supply: three-phase 480 V 50/60 Hz (ordered separately)
    7. Zinc alloy drum
    8. Yarn sensor: electronic yarn break stop
    9. Packaging: wooden box
    10. Layout: double sides, per machine has (4-48) spindles
    11. Power supply: three-phase 480 V 50/60 Hz
    12. Transmission: every spindle is driven by an AC motor individually
    13. Power consumption: 0.18 kW per spindle
    14. Take-up package: cylindrical (0°); cone
    15. Package diameter: max. 200 and 300 mm
    16. Yarn speed: 300 to 1000 m/min
    17. Anti overlapping electronic device: inverter control
    18. Length counting device: programmable controller (PLC) centralized control / display meter
    19. Tension device: every spindle has a self-cleaning yarn tension and waxer adjusting device
    20. Slub catcher: every spindle has a mechanical slub catcher
    21. Yarn break control device: the spindle will stop when the yarn breaks by a yarn break control device
    22. Speed regulation: frequency control
    23. Electronic slub catcher: ordered separately
    24. Air splicer: ordered separately
    25. Lighting system dimensions: lamp 1920 (length) x 850 (width) x 650 (height) mm (4 spindles size)
  3. Condition
    1. Used
  4. Included
    1. 2 sets (8 spindles) LCL
