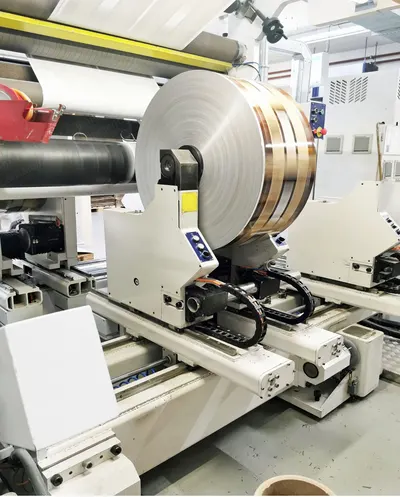

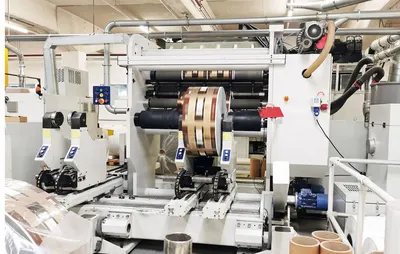

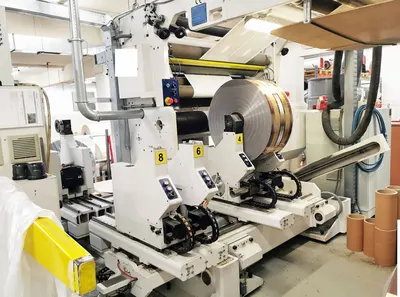

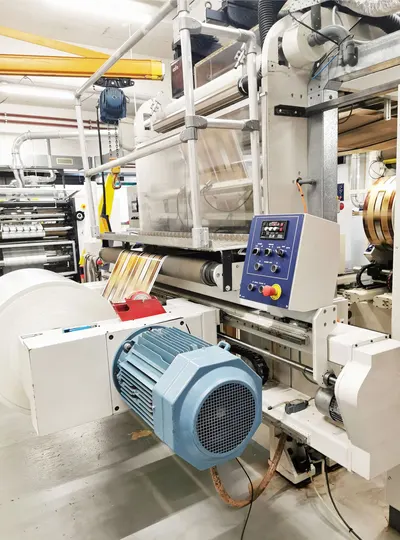

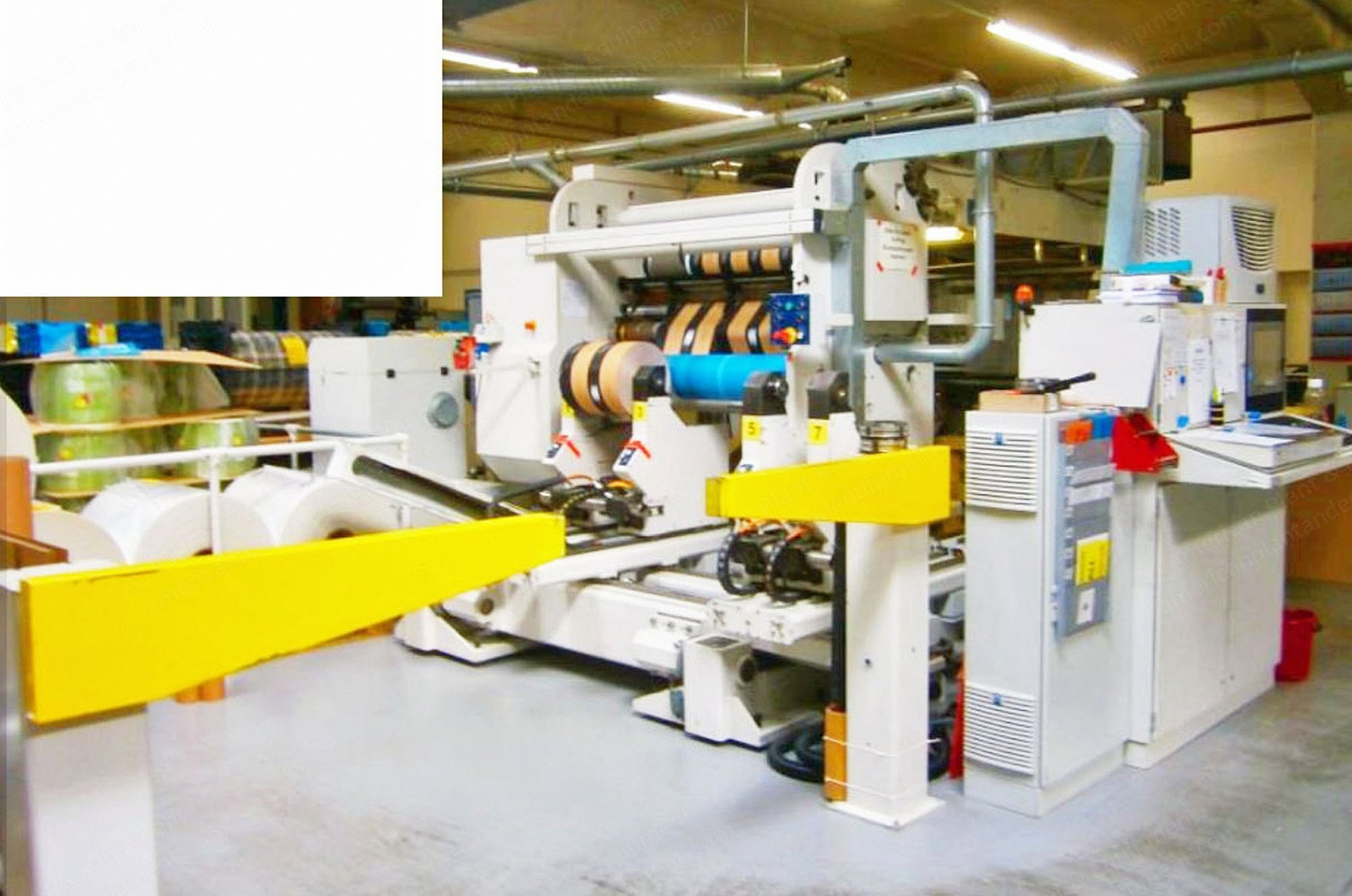

Ashe, Jade, 2005, 1200mm Working Width, 350 m/min Speed

Ashe, Jade, 2005, 1200mm Working Width, 350 m/min Speed

Description

  1. Overview
    1. Labelstock / paper slitter rewinder with superior winding quality even at high speed.
    2. With centre surface capabilities the machine is able to wind with individual rewind stations, a full width differential rewind shaft, or with an airshaft.
    3. The shaftless or shafted rewinding system both utilise a linear tracking system away from the contract roller to give a perfect finished roll, in profile and tension.
    4. As with all Ashe machines, our vacuum roller is utilised on the machine to give perfect tension isolation and does not scratch or deform the most sensitive of labelstocks and papers.
    5. A range of options, such as automatic unloading systems are available on the machine with online roll wrapping and weighing.
    6. Other options such as knife positioning systems, web cleaners etc, are all available on the machine.
    7. We are also able to produce a range of two drum surface winders, for paper mills and paper converters.
    8. We are able to produce such machines with rewind diameters of up to 1800mm (70”).
  2. Key Features
    1. All electric systems offered - no hydraulics.
    2. Vacuum roller for tension isolation.
    3. Unique linear tracking system.

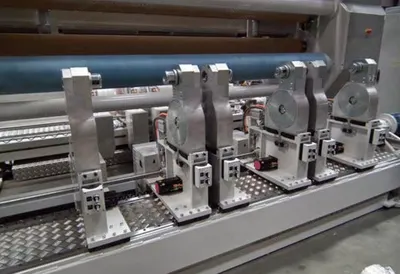

    4. Shaftless rewind stations.
    5. Shafted rewind stations with differential rewinding and patented shaft support system.
    6. Range of offloading options.
  3. Specifications
    1. Machine width: up to 3000mm (up to 120”).
    2. Rewind diameter range: 1000mm to 2000mm (up to 60”).
    3. Maximum machine speed: up to 800 meters per minute (up to 2625 feet per minute).
    4. Minimum slit width: 50mm (2”).
    5. Various slitting configurations available.
    6. Able to handle a wide range of plain, metallised and coated films.
  4. Detailed Specifications
    1. Material-width: maximum 1200mm.
    2. Cores of mother roll: 76+152mm.
    3. Weight of un+rewind-roll: max. 1000 kg.
    4. Unwinder diameter max. 1000mm.
    5. Rewind diameter max 1000mm.
    6. Rewind-roll min. width: 150mm.
    7. One arm max. 219mm / two arms up from 220mm.
    8. Rewind shaft diameter: 50 / 70 / 76mm.
    9. Tension-unwinding: 100 kg.
    10. Tension-rewinding: 20 kg/each arm.
    11. Machine speed max: 350 m/min.
  5. Condition
    1. Machine in very good conditions.
    2. Possible to be viewed in production.

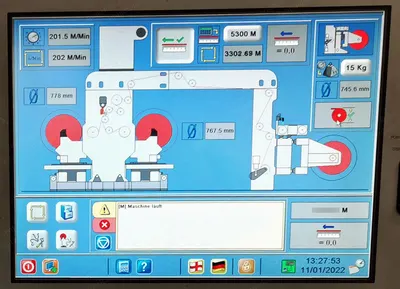

  6. Operation: Webbing the Machine
    1. Position parent reel between the two unwind chucks, use the left and right movement buttons to insert chucks into ends of parent reel core. When both chucks are inserted up to end flanges, inflate with unwind chucks switch.
    2. Raise the unwind roll into the running position.
    3. Confirm that the rewind has been set, and that there are no arm not ready alarms.
    4. Disengage the razors to their fully retracted position and thread the web as shown in the threading diagram, through to, and up between, the rewind rolls.
    5. Fit a full width core into each rewind set and attach the web. Run the machine at slow speed, and when the web has aligned at the rewind, engage the knives. When the slit webs have reached the rewind, stop the machine.
    6. Run the machine, when satisfied with web alignment.
  7. Operation: Unloading
    1. Retract all arms (machine is interlocked).
    2. Rotate beams to unload using appropriate buttons.
    3. The rotation automatically stops when finished rolls touch the unloading trolley, floor or pallet.
    4. Unlock cores using switches on both arms.
    5. Rotate.

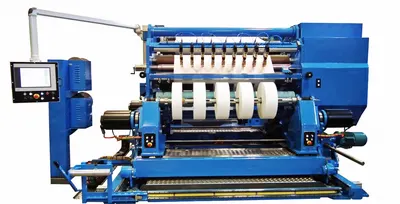

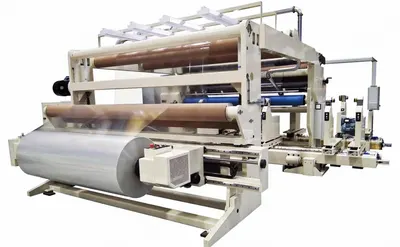

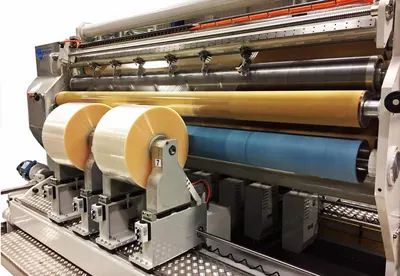

  8. Secondary Film Slitter Rewinders - Jade Series
    1. Superior winding quality even at high speed.
    2. Like the primary slitting machine, the Jade secondary slitter rewinder utilises a linear winding principle, tracking back from a single contact roller per rewind beam.
    3. This winding technology is proven for winding different types of plain, metallised and coated films.
    4. The machine is available in many different configurations for unwind types, slitting systems and rewind configurations.
    5. Once again, the Jade secondary slitter rewinder is an all-electric operation.
    6. The loading of the parent roll and unloading of the finished rolls is all executed electrically, eliminating the need for hydraulic systems on the machine.
    7. Tension isolation is done through our vacuum roller system, which is proven to give superior isolation without damaging sensitive films.
    8. Ever since the machines original design, all drives have been mounted locally on the machine.
  9. Secondary Slitter Rewinder - Key Features
    1. Maximum speed 1200 m/min (3940ft/min) available for optimum productivity.
    2. Perfect tension isolation eliminates creasing and wrinkling even on the most sensitive materials.
    3. All electrical operation makes it the hygienic choice.
    4. Easy to install and maintain.
    5. State of the art AC digital vector drives mounted locally to save space.
    6. Minimise downtime using one common layon roller.
    7. Optional automatic knife and arm positioning available.
    8. Parking areas available.
    9. Driven rollers throughout the machine.
    10. Servo driven rewind stations.
  10. Secondary Slitter Rewinder - Specifications
    1. Machine width: 1600mm to 3500mm (63” to 138”).
    2. Unwind diameter range: 1000mm to 2000mm (40” to 80”).
    3. Rewind core sizes from: 76mm and upwards (3” and upwards).
    4. Maximum rewind diameter: up to 1200mm (up to 48”).
    5. Maximum machine speed: up to 1200m/min (up to 3940ft/min).
    6. Minimum slit width: 250mm (10”).

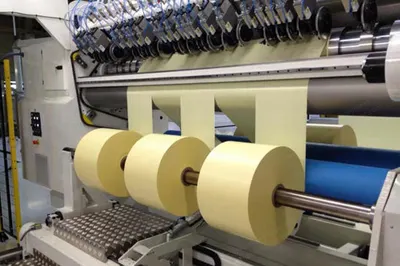

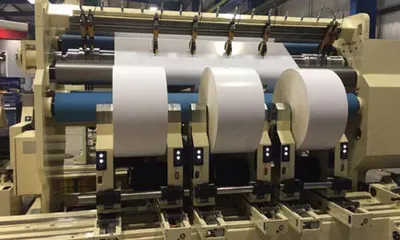

  11. Labelstock / Paper Slitter Rewinders - Jade Series
    1. Superior winding quality even at high speed.
    2. Our labelstock/paper slitter rewinder is based on our Jade series of slitting machines.
    3. With centre surface capabilities the machine is able to wind with individual rewind stations, a full width differential rewind shaft, or with an airshaft.
    4. The shaftless or shafted rewinding system both utilise a linear tracking system away from the contract roller to give a perfect finished roll, in profile and tension.
    5. As with all Ashe machines, our vacuum roller is utilised on the machine to give perfect tension isolation and does not scratch or deform the most sensitive of labelstocks and papers.
    6. A range of options, such as automatic unloading systems are available on the machine with online roll wrapping and weighing.
    7. Other options such as knife positioning systems, web cleaners etc, are all available on the machine.
    8. We are also able to produce a range of two drum surface winders, for paper mills and paper converters.
    9. We are able to produce such machines with rewind diameters of up to 1800mm (70”).
  12. Labelstock / Paper Slitter Rewinder - Key Features
    1. All electric systems offered - no hydraulics.
    2. Vacuum roller for tension isolation.
    3. Unique linear tracking system.
    4. Shaftless rewind stations.
    5. Shafted rewind stations with differential rewinding and patented shaft support system.
    6. Range of offloading options.
  13. Labelstock / Paper Slitter Rewinder - Specifications
    1. Machine width: up to 3000mm (up to 120”).
    2. Rewind diameter range: 1000mm to 2000mm (up to 60”).
    3. Maximum machine speed: up to 800m/min (up to 2625ft/min).
    4. Minimum slit width: 50mm (2”).
