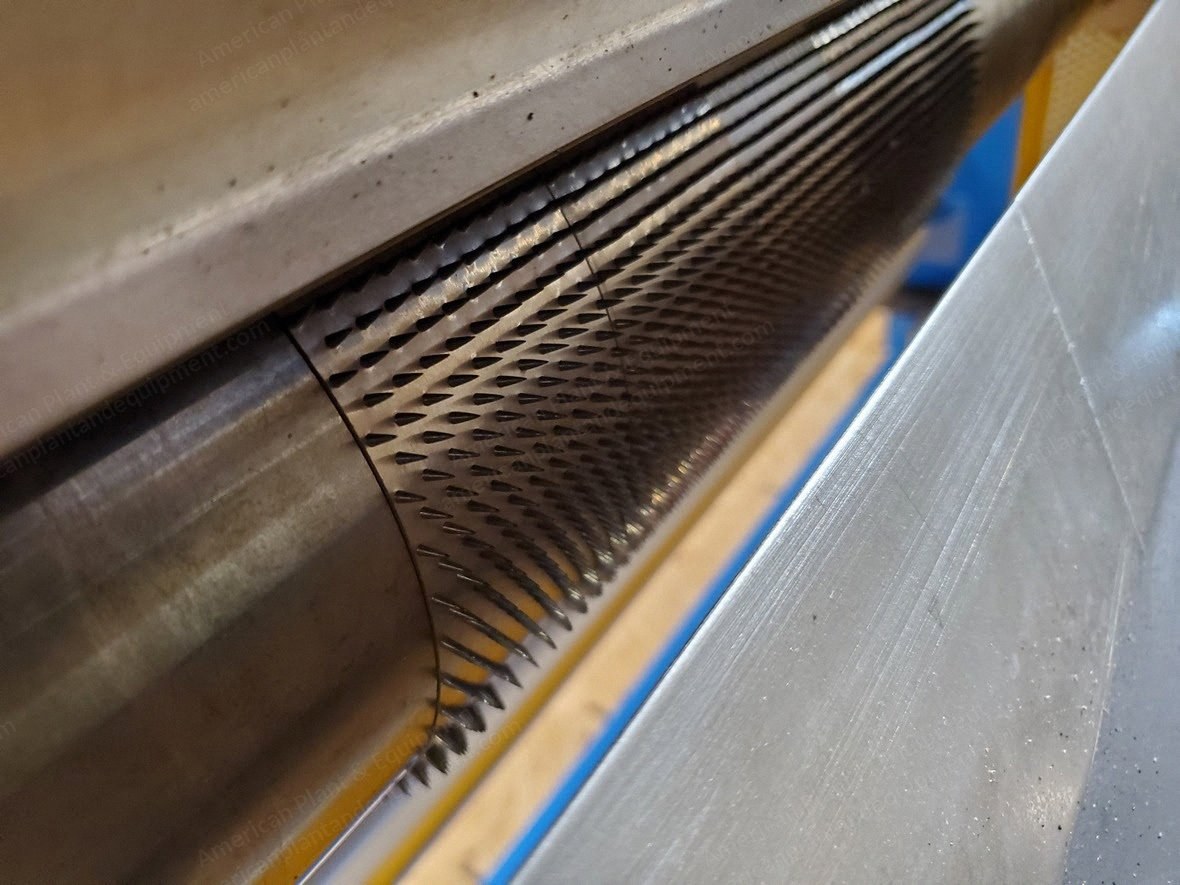

NovaStar, Cold Pin Perforating Unit, Working Width 1100mm, Web Driven

NovaStar, Cold Pin Perforating Unit, Working Width 1100mm, Web Driven

Description

  1. Overview
    1. Cold pin perforating unit
    2. Refurbished
    3. Working width 1100 mm

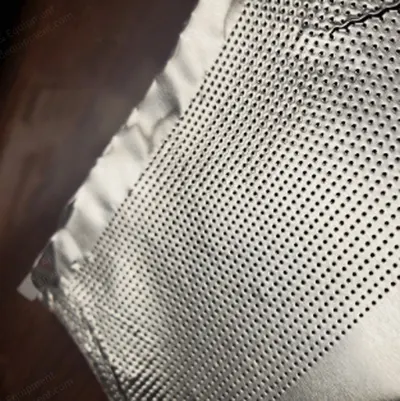

    4. Works with plastic film, foil or paper and some nonwovens
    5. Can be used for perforating or embossing

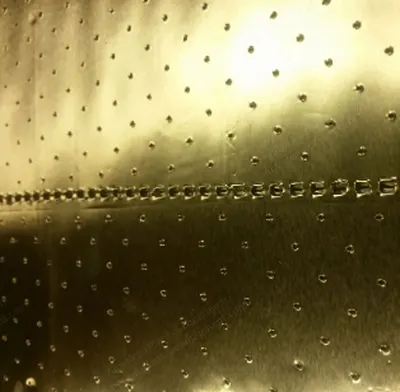

    6. Produce machine direction easy tear lines for bags
    7. Product embossing for grip or identification
  2. Unit Dimensions
    1. 21 in (535 mm) wide x 17 in (432 mm) tall x 69 in (1750 mm) long
    2. Machine approximate dimensions: width 535 mm (21), length 1100 mm (working width) + 650 mm total of 1750 mm (69), height 432 mm (17)
    3. Weight: 400 kg
  3. Included Components
    1. 1 base machine frame aluminium/steel/stainless, 1100 mm working width
    2. 1 pneumatics for actuation and pressure roll control
    3. 1 roller for pinned sleeves, 60 mm diameter with bearings
    4. 1 pressure brush roller with bearings to suit
    5. 2 idler rollers with internal bearings to guide web path
    6. 1 safety guards, sheet steel, and frame powder coated
    7. Both the anvil roller and pinned roller are web driven
    8. No pinned tooling is included with the unit, however, a wide range of pinned tooling can be used with this unit to create an array of hole sizes and patterns
  4. Component Details
    1. Shaft: steel, 60 mm od, polished for ease of pinned sleeve movement
    2. Mounting: perforator simply bolts onto your existing machinery
    3. Penetration depth: the perforator comes standard with manual penetration controls
  5. System Requirements
    1. Air pressure: 6.25-8 bar / 90-100 psi
    2. Power: not required, machine is web driven
    3. There are no electric motors or drives, and there is no link between the rollers, this unit is a precision controlled, web driven perforating nip
  6. Quantity
    1. 2 units available
