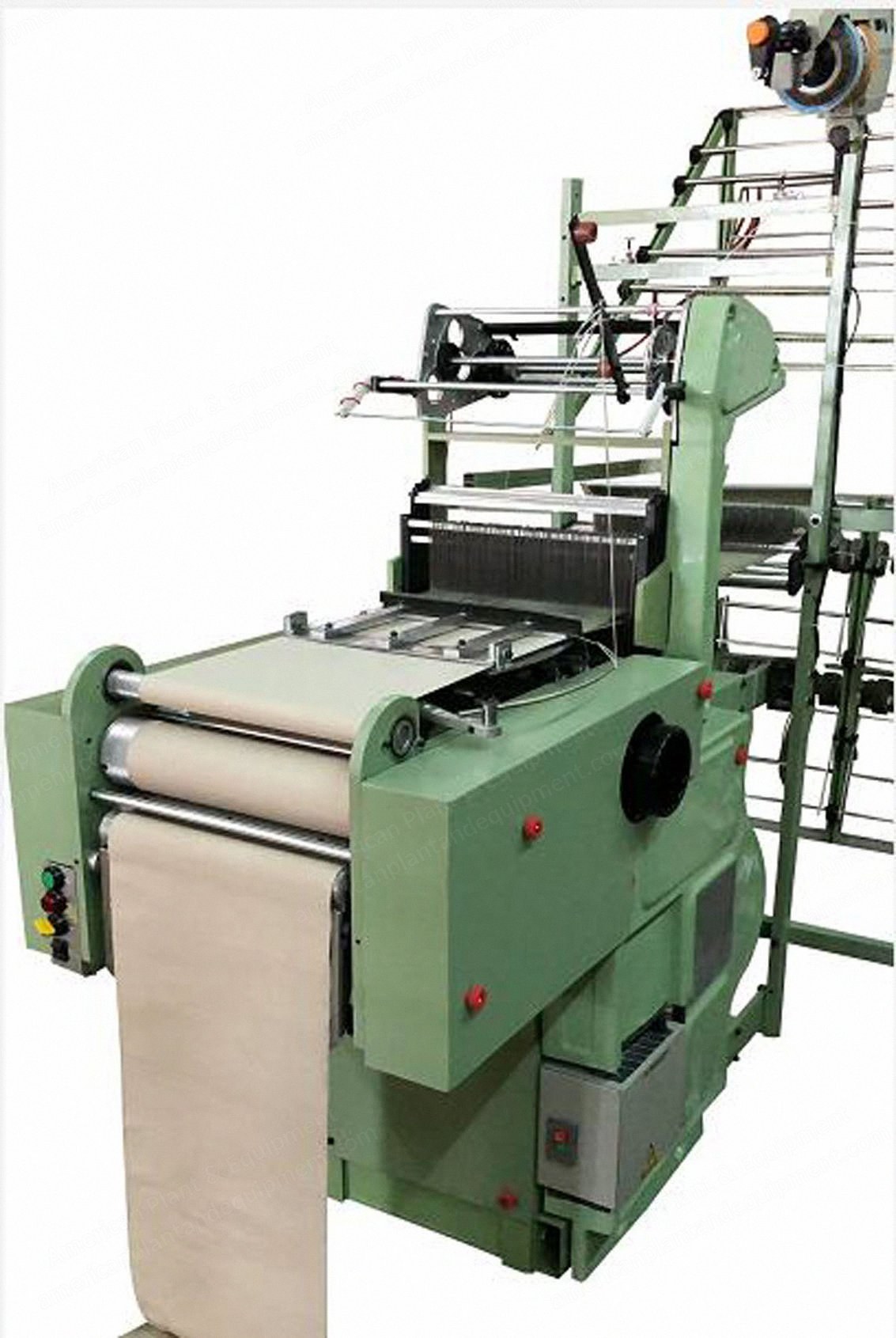

NovaStar, NF165, Wide Needle Loom, 1 Tape, Reed Width 300mm, 2 HP (New)

NovaStar, NF165, Wide Needle Loom, 1 Tape, Reed Width 300mm, 2 HP

Description

  1. Overview
    1. Wide needle loom
    2. Tape: 1
  2. Specifications
    1. Reed width: 300 mm
    2. Motor: 2 hp + 1 hp (two motors)
    3. Speed: 200 – 300 rpm
    4. Heald frame: 8 pieces
    5. Creel ends: 18 pieces
    6. Cam: 8 to 40 pieces
    7. Weft density: 70-730 weft/mm
  3. Dimensions
    1. Machine working size: length 4000 x width 1050 x height 2150 mm
    2. Machine packing size: length 1600 x width 1100 x height 2120 mm
