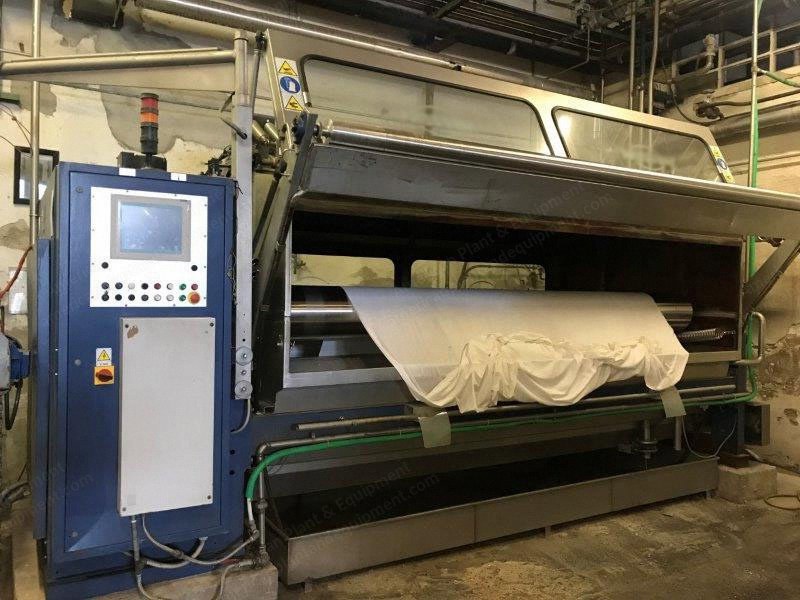

HTP Unitex (Mezzera), VGM/Electric, 2007, 3400mm Width, 1050mm Max Diameter

HTP Unitex (Mezzera), VGM/Electric, 2007, 3400mm Width, 1050mm Max Diameter

Description

  1. Overview
    1. Htp unitex (mezzera) atmospheric jigger
    2. Model vgm/electric
    3. Year 2007
  2. Specifications
    1. Useful width 3400 mm
    2. Maximum diameter 1050 mm
    3. Tension 10 to 100 kg
  3. Drive and Controls
    1. Made of original electric drive

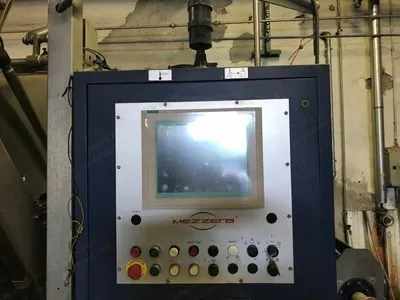

    2. Implemented operator panel - siemens simatic
  4. Included Components
    1. 2 service tanks complete in all their accessories
    2. Cotton type side rocker arms with washing sprayers (missing)
    3. Heating coil in the tank with direct/indirect steam
    4. 1 drain waste
    5. Fabric discharge unit with third electric motor
    6. Perforated cylinder at the bottom of the tank with encoder detector
    7. Possibility to connect the machine to the exhausted steams chimney
    8. Drop collector drainage
