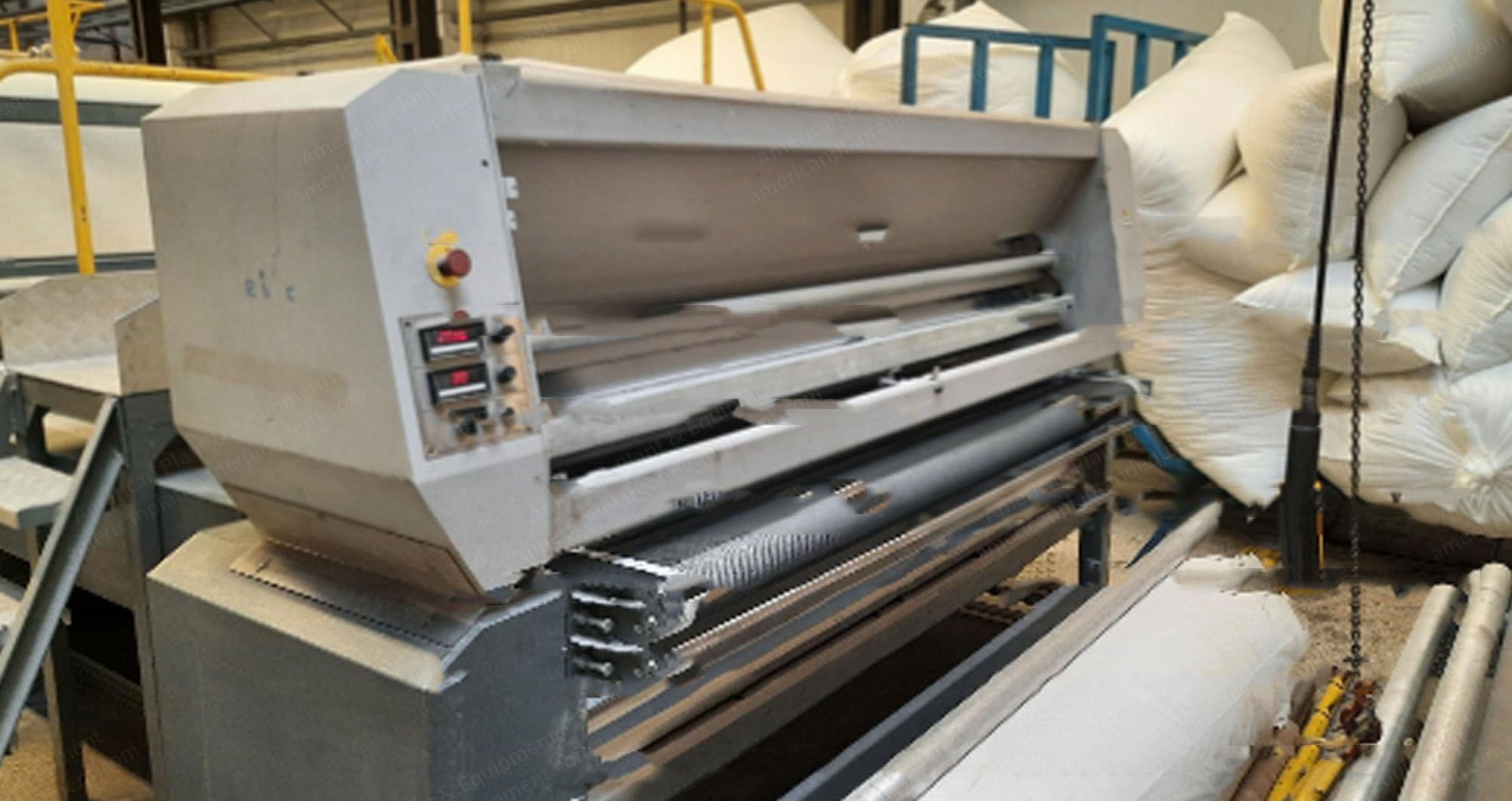

Reliant, Powerbond Mark II, 2003, 2200mm Working Width, 350 kW, 20 m/min

Reliant, Powerbond Mark II, 2003, 2200mm Working Width, 350 kW, 20 m/min Sold

Description

  1. Overview
    1. Reliant line for laminated nonwovens
    2. Year: 2003
    3. Brand: Reliant
    4. The Reliant laminator (year 2003) is a technological line for creating two-layer and three-layer non-woven laminates
    5. The Reliant line allows you to connect layers such as fabric, knitted fabric, various types of nonwovens (fluffy, flat), foil with a width of no more than 2200 mm and a thickness of no more than 150 mm (height of the tunnel)
  2. Components
    1. One unwind stand from the revolutionary back - radiators for winding gates max 1000 mm and max weight 400 kg, shaft 76 mm
    2. Two places from being rolled up without carrying (including the second one) - possibility to unwind the nonwoven fabric with a width of 1000 mm and maximum weight of 400 kg, shaft 76 mm
    3. Two Reliant "Powerline" powder machines with a needle spreading brush with a shaft needle 175 needles per square inch, needle length 1.2 mm
    4. Radiator
    5. Reliant "Powerbond" Mark II laminating machine: heating plate length 2700 mm, length of the cooling tunnel 1000 mm, working width 2200 mm, tunnel height adjustable from 0 to 150 mm
    6. Winding station: Powerline winding unit driven - max roll diameter 1200 mm, max roll weight 700 kg, shaft 76 mm
  3. Specifications
    1. Maximum line speed is 20 meters per minute
    2. Installed electric power is 350 kW
    3. Temperature in the dryer - max 190 degrees Celsius, speed 12 meters per minute
  4. Condition
    1. Machine is in running condition
