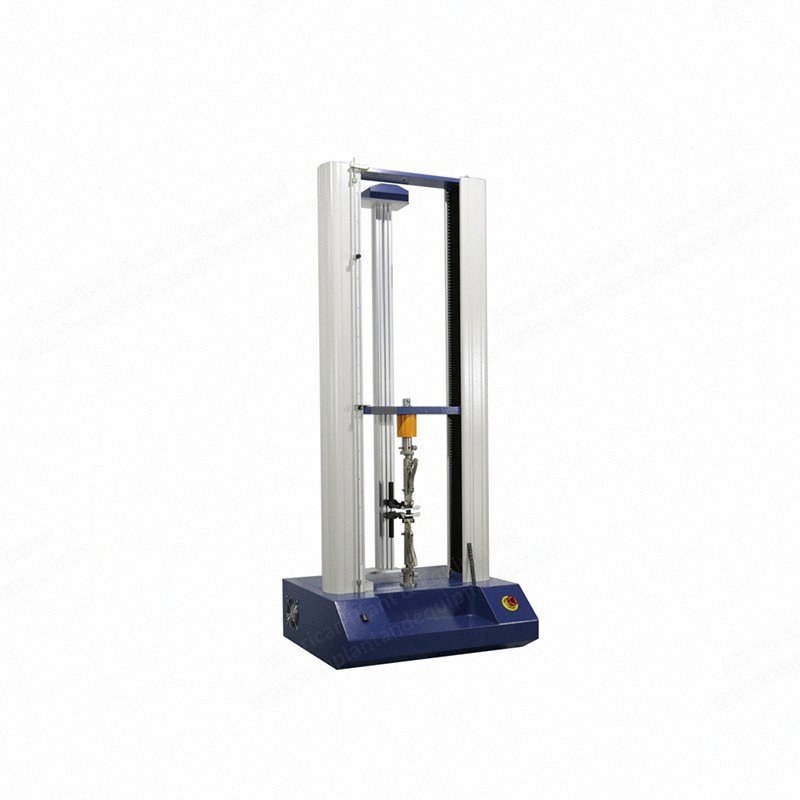

NovaStar, Tensile Strength Testing Machine, 50kN Capacity, 400mm Test Width (New)

NovaStar, Tensile Strength Testing Machine, 50kN Capacity, 400mm Test Width

Description

  1. Overview
    1. Universal tensile strength testing machine
    2. Designed for tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials
    3. Basic equipment for quality control, receiving inspection, physical test, mechanics research, material development
  2. Power System
    1. Servo motor and servo drivers and worm gear and rod reducer and ball screw
  3. Control System
    1. Adopting pulse command control method for more accuracy and easy control
    2. Data transmission mode: RS232 transmission
    3. Can realize constant speed, positioning, constant power, constant stroke control mode and multi-level control mode to meet ordinary test requirements
  4. Speed and Displacement
    1. Speed control range: 0.001-500 mm
    2. Test speed: 0.001-500 mm/min
    3. Intermediate plate adjustment is both fast coarse and slow fine-tuning
    4. Entire displacement encoder is 1800 P/R, can improve 4 times accuracy
    5. Using line drive encoder with strong anti-interference ability, displacement resolution 0.001 mm
    6. Stroke resolution: 0.001 mm

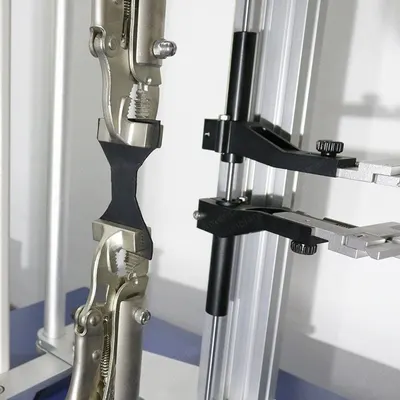

    7. Extensometer resolution: 0.001 mm

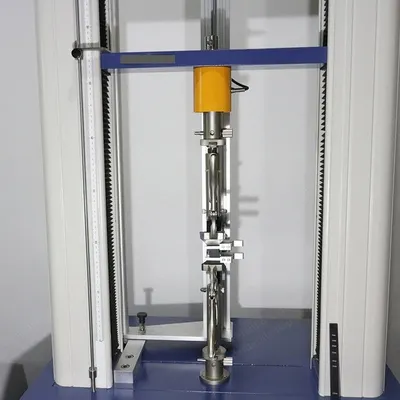

  5. Testing Space
    1. Test width: 400 mm (standard)
    2. All plate walking space: 1500 mm (excluding fixture, according to customer requirements)
    3. Walking space: 1500 mm (can be custom-tailored according to requirements)
  6. Key Specifications
    1. Max. capacity: 50 kN
    2. Control mode: computer control, computer and touch screen control
    3. Force resolution: 1/100,000
    4. Force accuracy: ≤ +/-0.5%
    5. Force unit switch: kgf, N, ibf, g, ton, MPa
    6. Machine drive: servo motor drive, synchronous wheel and precision ball screw drive
    7. Power supply: AC 220V 50/60Hz 10A
    8. Dimensions: 750 x 700 x 1700 mm (W x D x H)
    9. Weight: 300 kg
  7. Safety and Stop Features
    1. Overload emergency stop device
    2. Up and down stroke limit device
    3. Leakage automatic blackout system
    4. Automatic breakpoint stop function
    5. Stop mode: overload stop, emergency stop button, specimen damage automatic stop, upper and lower limit set automatic stop, automatic reset function
    6. Tensile pull test equipment will return to original site and save automatically after testing
