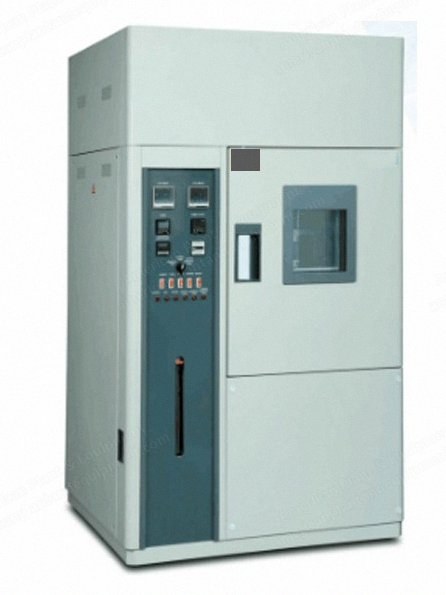

NovaStar, EC131, Ozone Test Chamber, 500x500x500mm, 40 to 60C (New)

NovaStar, EC131, Ozone Test Chamber, 500x500x500mm, 40 to 60C

Description

  1. Overview
    1. Ozone test chamber designed to determine the aging resistance against ozone for rubbers and automotive parts.
    2. Ozone aging test chamber can simulate and strengthen the condition of ozone.
    3. Determines the ozone-resistant aging property of rubber and function of antiozonant.
    4. Both static tensile test method and dynamic tensile test method can be option.
    5. Principle: There is only a little of ozone in the atmosphere, but that is the main factor causing rubber cracking.
    6. Ozone test chamber can simulate and strengthen the condition of ozone, fastly determine the ozone-resistant aging property of rubber and function of antiozonant.
  2. Construction And Features
    1. Inside the test tank: SUS 304# stainless steel; machine outer body: steel plate body coating.
    2. Insulation device: PU foam insulation cotton.
    3. The sample holder and clamp are made of SUS 304# stainless steel, which can be used for static, dynamic and static & dynamic discontinuous cycle tests.
    4. Ozone generation system: air compressor + ozone generator + high voltage power supply.
    5. Ozone detection system: UV-100 UV absorption ozone analyzer.
    6. Air circulation and ventilation system: multi-wing circulation fan, air flow meter and regulating valve, air filter mixing and thinning release device, exhaust emission dilution device.
    7. Chamber door: single open, single window, flat handle, window 210 x 270 x 35 mm, with lights inside.
  3. Specifications
    1. Temperature range: (40 to 60) °C ± 2 °C.
    2. Ozone concentrations: 25 ± 5; 50 ± 5; 100 ± 10 pphm; 200 ± 20 pphm; 500 ± 50 pphm.
    3. Inner dimension: 500 x 500 x 500 mm (W x H x D), made by SUS 304# stainless steel.
    4. Outer dimension: 1050 x 1900 x 880 mm (W x H x D).
    5. Air ventilation volume: ≥ 100 liters/minute.
    6. Power supply: 3 phase, 4 wire, 480 V ± 10%, 60 Hz (R, S, T, N, earth line).
    7. Capacity: 125 Liters
  4. Included Accessories
    1. Standard accessories: 1 pc cutting die (dumb-bell).
