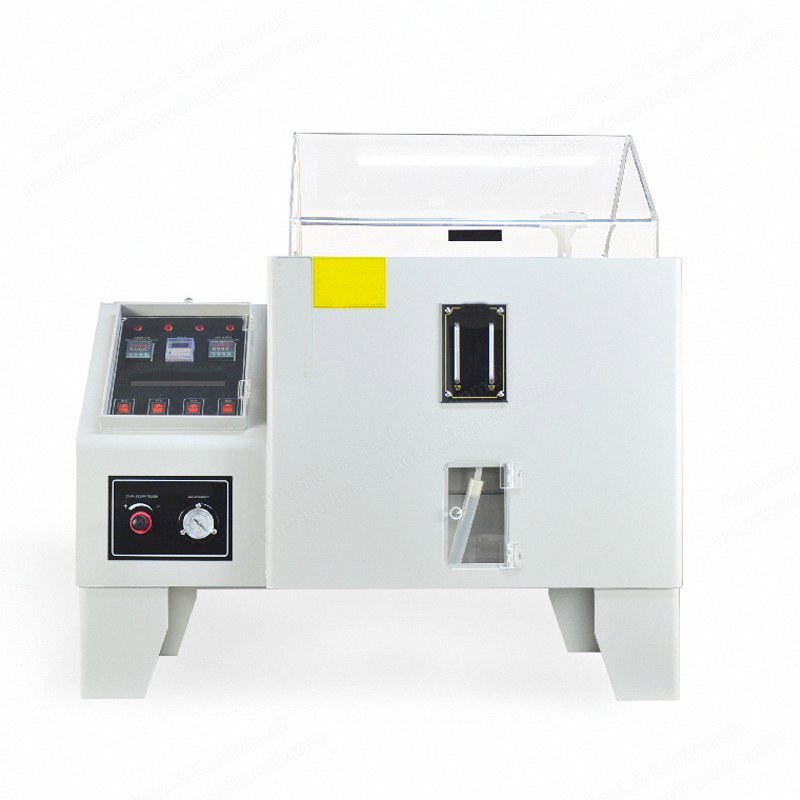

NovaStar, EC136, Salt Spray Corrosion Test Chamber, 108 to 1440 Liters, AC220V (New)

NovaStar, EC136, Salt Spray Corrosion Test Chamber, 108 to 1440 Liters, AC220V

Description

  1. Overview
    1. Salt spray corrosion test chamber suitable for neutral salt spray test (NSS).
    2. Heating method: test room adopts steam direct heating method, temperature rise fast and uniform, reduce the standby time; the heating tube is made from titanium tube with high corrosion resistance.
    3. Laboratory commodity shelf uses plane dividing shelf; commodity shelf is the 10 mm toughened glass rod with corrosion resistance.
    4. Plastic steel V type shelf and glass rod placing objects make sure the sample 30 degree bevel angle; the angle can be arbitrarily adjusted; the direction of spray falling around is the same as the direction of spray receiving; test piece is set with large quantity.
    5. Sample supplement jar adopts hidden and water level perspective window attached; it is easy to clean and not easy cracking.
    6. Salt spray test aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment.
  2. Key Specifications
    1. Inside chamber dimension (W x D x H mm): 600 x 450 x 400, 900 x 600 x 500, 1200 x 1000 x 500, 1600 x 1000 x 500, 2000 x 1200 x 600
    2. Outside chamber dimension (W x D x H mm): 1070 x 600 x 1180, 1410 x 880 x 1280, 1900 x 1300 x 1400, 2300 x 1400 x 1400, 2700 x 1500 x 1500
    3. Test chamber volume: 108 liters, 270 liters, 600 liters, 800 liters, 1440 liters
    4. Brine tank: 15 liters, 25 liters, 40 liters
    5. Control method: LED meter
    6. Plastic plate thickness: 5 mm
    7. Temperature of test chamber: brine test method 35 °C ± 1 °C
    8. Temperature of pressure barrel: brine test method 47 °C ± 1 °C
    9. Brine temperature: 35 °C to 50 °C
    10. Brine concentration: 5% sodium chloride solution concentration
    11. Compressed air pressure: 1.00 ± 0.01 kgf/cm²
    12. Spray volume: 1.0 to 2.0 ml/80 cm²/hour (gather at least 16 hours, take its average)
    13. Relative temperature of test chamber: above 85%
    14. pH-value: neutral 6.5 to 7.2
    15. Spray method: continuous spray or intermittent spray
    16. Power supply: AC220V 1Φ 10A, AC220V 1Φ 15A, AC220V 1Φ 30A
  3. Temperature Range
    1. Laboratory temperature: 35 °C to 50 °C (can be arbitrarily set)
    2. Pressure barrel temperature: 47 °C to 63 °C (can be arbitrarily set)
  4. Temperature Rising Speed
    1. Laboratory room temperature → 35 °C: about 35 minutes
    2. Pressure barrel room temperature → 47 °C: about 15 minutes
    3. Temperature accuracy: ± 1 °C
  5. Specifications
    1. Test chamber temperature: 35 to 50 degrees C
