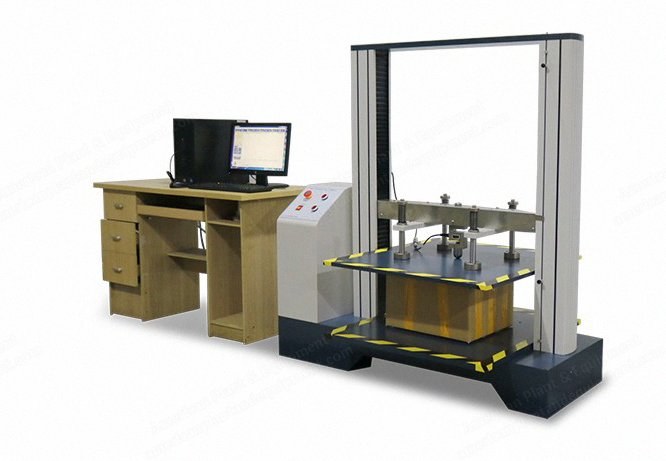

NovaStar, MC289, Box Compression Tester, 100kN Max Capacity, Servo Motor Drive (New)

NovaStar, MC289, Box Compression Tester, 100kN Max Capacity, Servo Motor Drive

Description

  1. Overview
    1. Box compression tester (computer model) with advanced mechanical structure of a pair of threaded shafts and guide pillars and imported motor for control.
    2. Designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100 kn.
    3. Features good parallelism, reliable measure precision and high return speed.
  2. Testing Functions
    1. Strength test: a destructive test used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
    2. Constant value test: two parameters to set: load force value.
    3. Stacking test: used to check whether the sample can endure a constant pressure in a given time period; set up two parameters: compressive strength and testing time (hour).
  3. Specifications
    1. Plate size (mm): 500 x 500, 600 x 600, 800 x 800, 1000 x 1000
    2. Max stroke (mm): 500, 600, 800, 1000
    3. Column number: 2
    4. Measuring range: 0-10 kn, 20 kn, 30 kn, 50 kn, 70 kn, 100 kn (optional)
    5. Indication error: ±0.5%
    6. Test speed: 0.001-500 mm/minute, can set by computer, with up and down fast adjustment button of grips
    7. Force unit switch: kgf, n, ibf, g, ton, mpa
    8. Display: computer display mode
    9. Stop mode: overload stop, emergency stop button, specimen damage automatic stop, upper and lower limit set automatic stop, automatic reset function
    10. Machine drive: servo motor drive, synchronous wheel and precision ball screw drive
    11. Power supply: ac 220v 5a 50hz
  4. Condition
    1. Overall system is in good parallelism, stationarity and high return speed.
