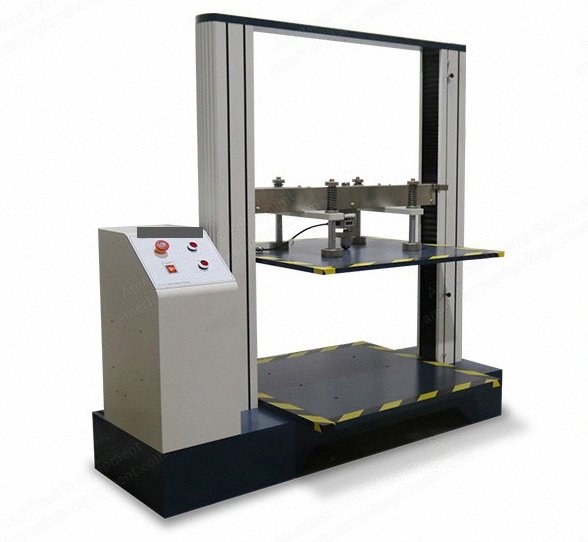

NovaStar, MC291, Box Compression Tester, Computer and LCD Control, 100kN Max Capacity, Servo Motor Drive (New)

NovaStar, MC291, Box Compression Tester, Computer and LCD Control, 100kN Max Capacity, Servo Motor Drive

Description

  1. Overview
    1. Box compression tester (computer + LCD control) with multi-function and high precision is designed to test the compressive strength of standard size corrugated boxes, or packages and containers made of other material with a compressive strength smaller than 100 kN.
    2. Adopting Windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily.
    3. With a variety of measurement units, measure in imperial and metric are switchable.
    4. With user-defined test methods and experimental data analysis function.
    5. Box compression testing machine with high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
  2. Key Specifications
    1. Plate size (mm): 500 x 500 or 600 x 600, 800 x 800 or 1000 x 1000, 1200 x 1200 or 1500 x 1500
    2. Maximum stroke: 500 mm or 600 mm, 800 mm or 1000 mm, 1200 mm or 1500 mm
    3. Measuring range: 0-10 kN, 20 kN, 30 kN, 50 kN, 70 kN, 100 kN (option)
    4. Indication error: +/- 0.5%
    5. Test speed: 0.001 to 500 mm/minute, can set by computer, with up and down fast adjustment button of grips
    6. Force unit switch: kgf, N, ibf, g, ton, MPa
    7. Display: computer display mode
    8. Stop mode: overload stop, emergency stop button, specimen damage automatic stop, upper and lower limit set automatic stop, automatic reset function
    9. Machine drive: servo motor drive, synchronous wheel and precision ball screw drive
    10. Power: AC 220V 5A 50Hz
  3. Mechanical Structure
    1. With advanced mechanical structure of a pair of threaded shafts and guide pillars.
  4. Functions
    1. Corrugated box testing equipment is capable of various functions for all parameters in standards, such as parametric test, display, memory, statistics and print function.
    2. Data processing function to gain the statistical result of all parameters directly.
    3. Automatic reset and fault diagnosis function and easy operation.
