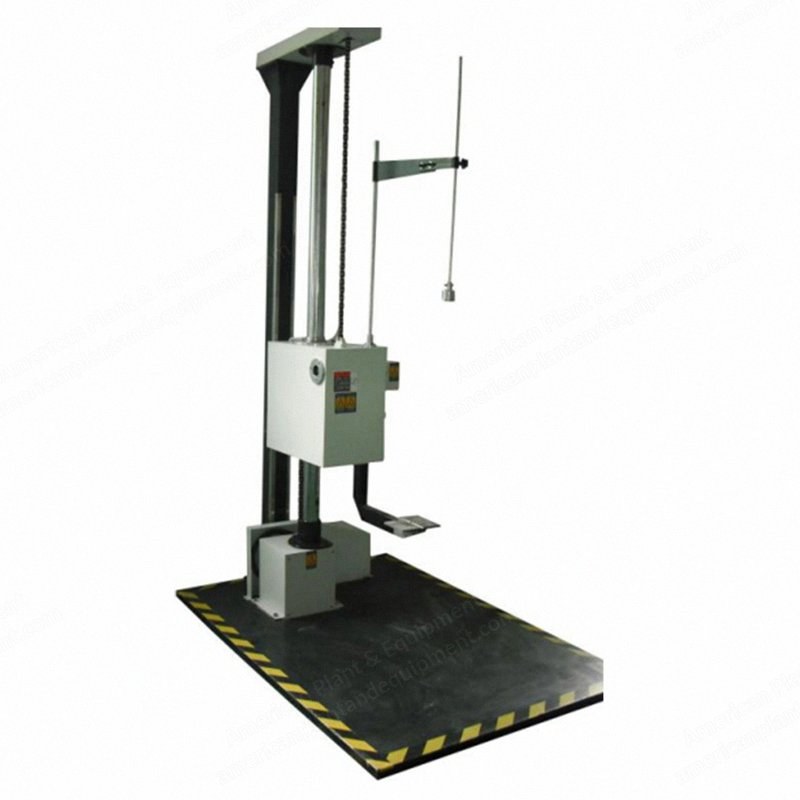

NovaStar, GL317, Single Wing Package Drop Testing Instrument, 300-1500mm Falling Height, 80kg Max Weight (New)

NovaStar, GL317, Single Wing Package Drop Testing Instrument, 300-1500mm Falling Height, 80kg Max Weight

Description

  1. Overview
    1. Single wing package drop testing instrument for precision manufacturing: accurate and accurate test results
    2. Packaging drop test equipment
    3. Has electric reset, electric control drop and electric lifting device, easy to use
    4. Single-arm setting, can easily place products
  2. Application
    1. The free fall drop tester is mainly used to assess the impact of the package during the actual transportation, loading and unloading process, and to evaluate the impact resistance of the package during the handling process and the rationality of the packaging design
    2. Complies with GB/T 4857.5-92, JISZ0202-87, ISO2248, ISTA and other national standards
  3. Specifications
    1. Falling height: 300 mm to 1500 mm (adjustable)
    2. Falling height error: ±10 mm (1%)
    3. Parallel error of impact panel: ≤ 1°
    4. The error angle of the falling surface of the specimen in the process of falling: ≤ 1°
    5. Impact panel size: 1700 × 1200 mm
    6. Bracket arm size: 160 × 250 × 10 mm
    7. Overall dimension of test bench: 1700 × 1200 × 2315 mm
    8. Thickness of the bottom plate: 10 mm (solid iron plate)
    9. Maximum specimen size: 800 × 800 × 1000 mm
    10. Maximum weight of the specimen: 0 to 80 kg
    11. Test method: surface, angle, edge all-round drop
    12. Transmission mode: electric drive
    13. Net weight: about 300 kg
    14. Dimension (W × L × H): 1700 × 1200 × 2315 mm
    15. Power supply: 3 phase AC 480 volts 60 Hz 1.85 kWA
