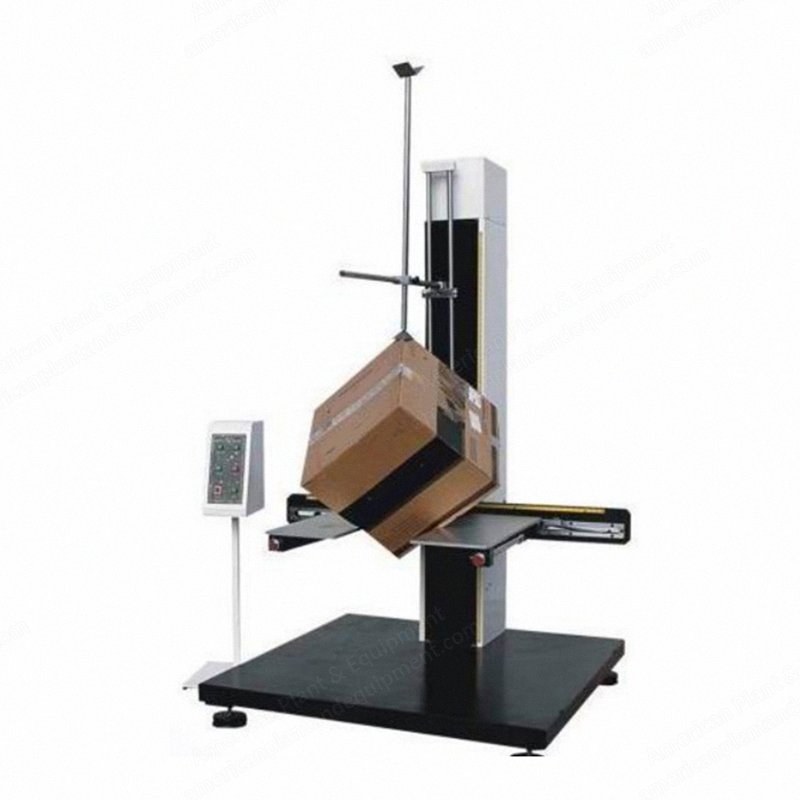

Description Overview Double wing free fall package impact drop tester Complies with standards, easy to operate, adjustable, with multiple protection functions Mainly used to assess the impact of the package during actual transportation, loading and unloading process Evaluates the impact resistance of the package during handling and the rationality of packaging design Meets the bearing capacity of product packaging under transportation conditions to improve and perfect packaging design Features Performs free drop tests on the surface, corner and edge of the package Equipped with a digital display height display and uses a decoder for height tracking Accurately gives the product drop height with error not exceeding 2% or 10 mm of the preset drop height Specifications Display mode: height ruler Drop height: 450 to 1500 mm Dimension of drop panel: (w x l) 1200 x 1400 mm Maximum weight of sample: 70 kg Maximum dimension of sample: (l x w x h) 1000 x 1000 x 800 mm Transfer method: electric drive Single-wing area: (w x l) 350 x 760 mm Power: 1∮, ac220 volts, 50 Hz Weight of machine: about 450 kg Dimension: (l x w x h) 1400 x 1200 x 2140 mm Power phase: 1 phase
