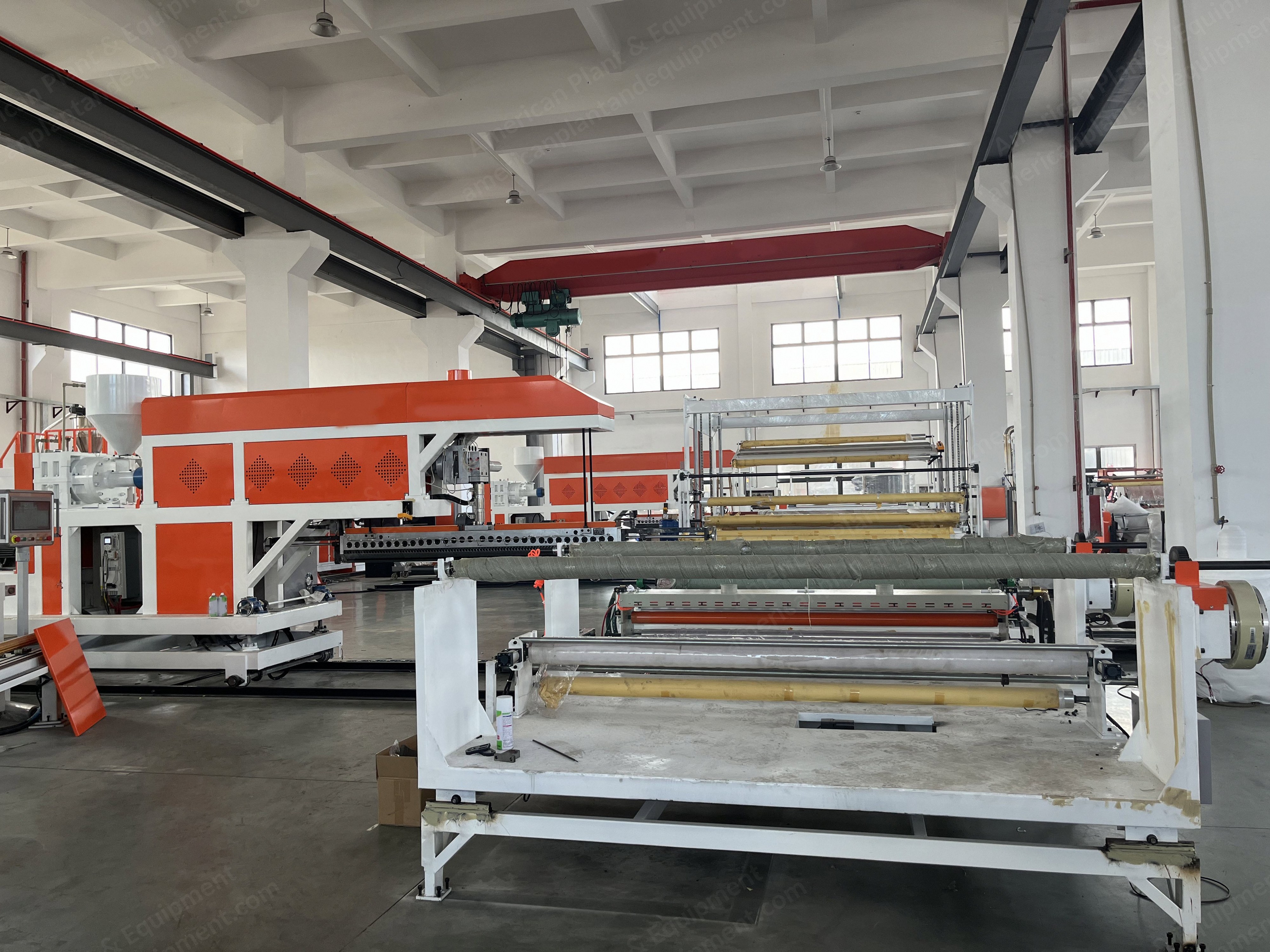

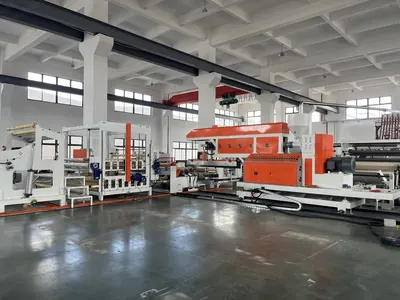

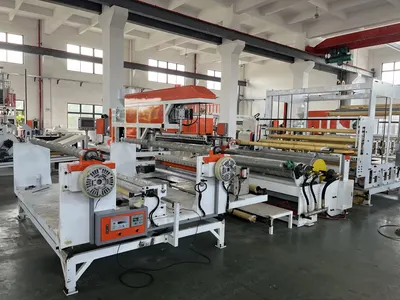

NovaStar, LC163, Extrusion Laminator, 2200mm, One Sided, 100 kW (New)

NovaStar, LC163, Extrusion Laminator, 2200mm, One Sided, 100 kW

Description

  1. Overview
    1. 2200mm one-sided plastic laminating machine
    2. Process extrudes plastic pellets through an extruder and flat die head in a linear extrusion
    3. After stretching, the film adheres to the surface of the base material
    4. Cooling and final pressing provide waterproof, oil anti-seepage, heat sealing, and other functions
    5. Machine composed of automatic feeding device, extruder, mold, unwinding mechanism, compound mechanism, winding mechanism, deviation correction device, cutting device, heating and cooling system, and electrical measurement and control system
    6. Whole production process completed without any chemical solvents
  2. Main Process and Parameters
    1. Technological process: main unwinding, rectifying, extruding, compound cutting, and rewinding
    2. Raw material: suitable for coating resin LDPE, PP, and other coating base material
    3. Auxiliary base material: paper, non-woven fabric, aluminum film, woven cloth, and other applicable materials
    4. Mechanical speed: 60 to 150 meters/minute (actual speed depends on film material, film width, and thickness)
    5. Effective width of laminating: 1200 to 2000mm
    6. Laminating thickness: 0.008 to 0.080mm
    7. Laminating thickness error: ±5%
    8. Tension setting range: 20 to 200 kg/full width
    9. Constant tension maximum extrusion: 200 kg/hour
    10. Inner diameter of base material roll core: 76mm
    11. Machine power: 100 kW
    12. Actual operating power: 50 kW to 60 kW
    13. Control type of compound speed and laminating thickness: PLC computer, fully automatic electrical control
    14. Laminating with embossing: single-layer
  3. Main Configuration and Quantity
    1. Unwinding device: 2 sets
    2. Extrusion compound part: 1 set
    3. Edge trimming device: 1 set
    4. Extrusion device: 2 sets
    5. Rewinding device: 1 set
    6. Control unit system: 2 sets
    7. Automatic paper splicing device: 1 set
    8. Other: 1 set
  4. Specifications
    1. Voltage: 480V 3-phase 60Hz
