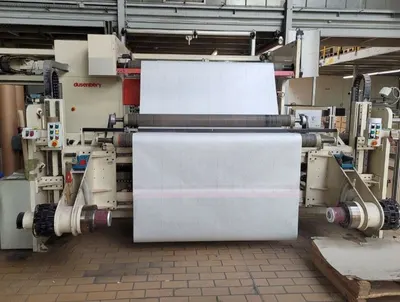

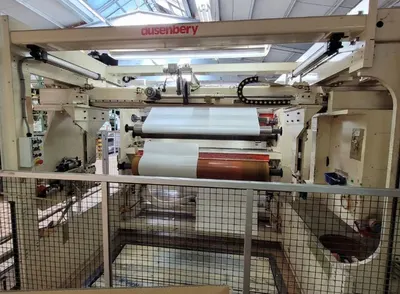

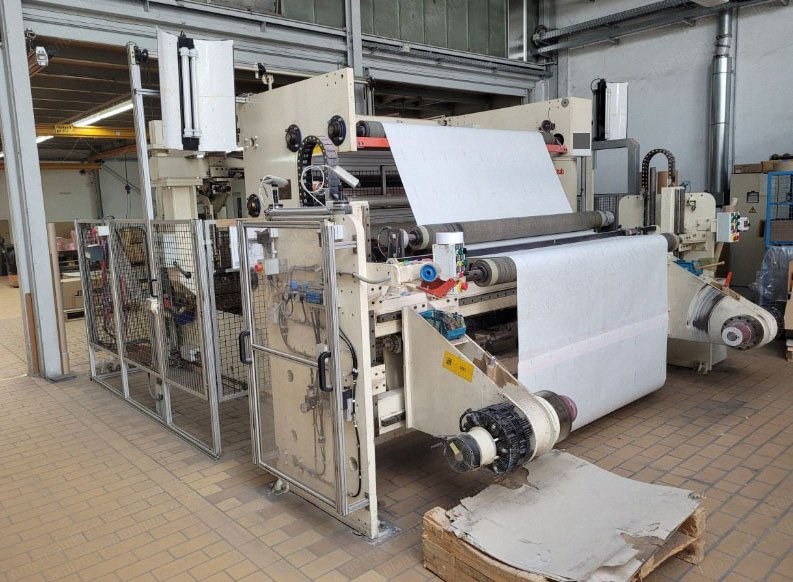

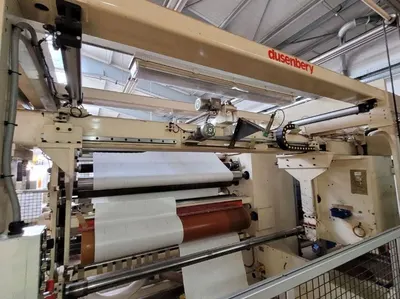

Dusenbery, 281, 2000, 2050mm Working Width, 400 m/min Max Speed

Dusenbery, 281, 2000, 2050mm Working Width, 400 m/min Max Speed Sold

Description

  1. General
    1. Brand: Dusenbery Europe Limited
    2. Model: 281
    3. Year: 2000
    4. Speed: foil max. 400 m/min
    5. Cardboard max. 70 m/min

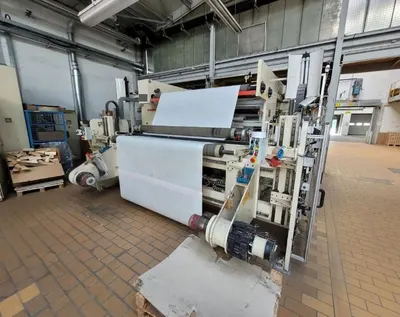

  2. Unwinder
    1. Roll weight: max. 1600 kg
    2. Roll diameter: max. 1250 mm
    3. Roll width: min. 900 mm, max. 2050 mm
    4. Foil tension: min. 0.4 N/cm (82 N/2050 mm), max. 10 N/cm (2050 N/2050 mm)
    5. Minimum roll diameter for role recording from floor: 400 mm
    6. Sleeve width: min. 900 mm, max. 2050 mm
    7. Sleeve inner diameter: 152 mm

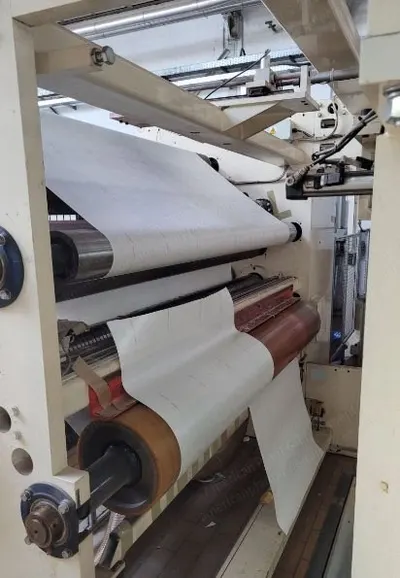

  3. Rewinder
    1. Roll weight: max. 1600 kg
    2. Roll diameter: max. 1250 mm
    3. Roll width: 2050 mm max
    4. Foil tension: min. 0.4 N/cm (82 N/2050 mm), max. 10 N/cm (2050 N/2050 mm), 0 - 2000 N
    5. Draft reduction: 0 - 80% (adjustable)
    6. Acceleration ramp: 10 - 300 sec (for 400 m/min)
    7. Brake ramp: 10 - 300 sec (for 400 m/min)
    8. Core diameter: 70 - 1250 mm (adjustable)
    9. Case inner diameter: 70 / 75 / 152 mm
    10. Winding roller speed: 0.0000 - 1.0000% (adjustable)
    11. Barrel: 0.0 - 6.0 bar (adjustable)
    12. Forward: 0.0 - 6.0 bar (adjustable)
    13. Back: 0.0 - 4.0 bar (adjustable)
    14. Hold: 0.0 - 6.0 bar (adjustable)
    15. Roll length: 0 - 20,000 meters
  4. Condition
    1. Current status: assembled, stopped, not connected to power, last ran September 2022
    2. Machine can cut paper; has previously been used to cut paper with more than 200 gsm
    3. Can cut paper 30 to 80 gsm with no problem

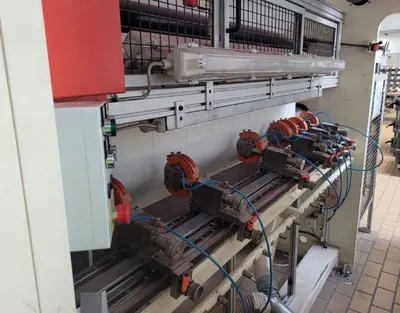

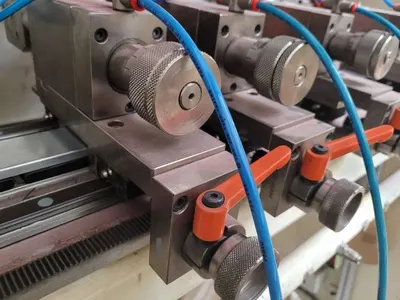

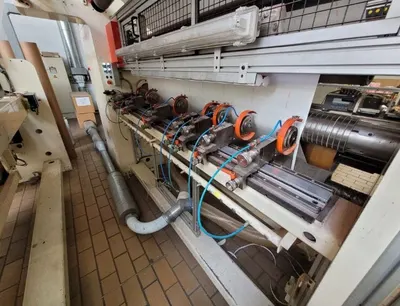

    4. Slitters type: Mario Cotta knives, with flat top knives and a bottom knife

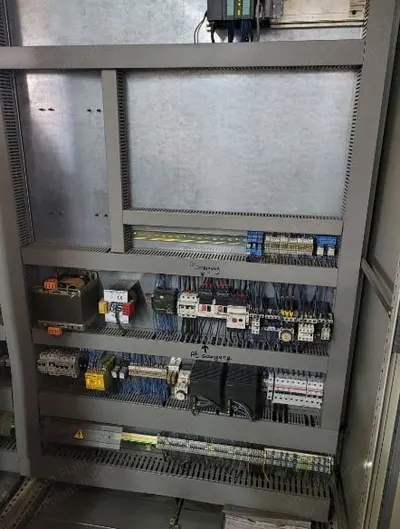

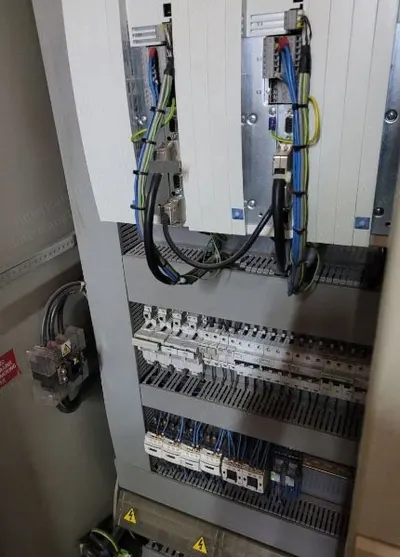

    5. Drive condition: drives are from 2001 but had preventative maintenance every quarter
    6. Tensioner in the back: original Dusenbery, 1600 kgs capacity
    7. Machine has not had any rebuilds
  5. Included
    1. Rewind core diameter: 70 mm, 76 mm and 152 mm
    2. Unwind core diameter: 70 mm, 76 mm and 152 mm
  6. Location and Dimensions
    1. Dimensions: height 2500 mm, length 4500 mm, width 6000 mm (machine is L-shaped)
    2. Weight: approximately 8 to 10 tons
    3. Weight: about 11 tons
    4. Requires 1 40-foot container to ship
