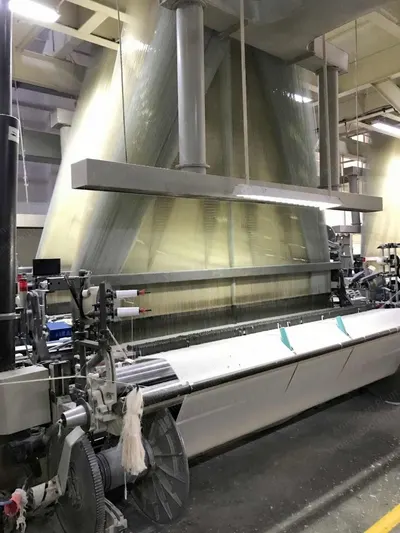

Picanol, Gammax, 2006/2007, Rapier Looms, 3400mm Working Width, Staubli LX3202 Jacquard, 8 Colors

Picanol, Gammax, 2006/2007, Rapier Looms, 3400mm Working Width, Staubli LX3202 Jacquard, 8 Colors

Description

  1. Overview
    1. Working width: 3400 mm
    2. Colors: 8
    3. Prewinder set: 2
    4. Beam type: single
    5. Top beam: 2 looms with top beam

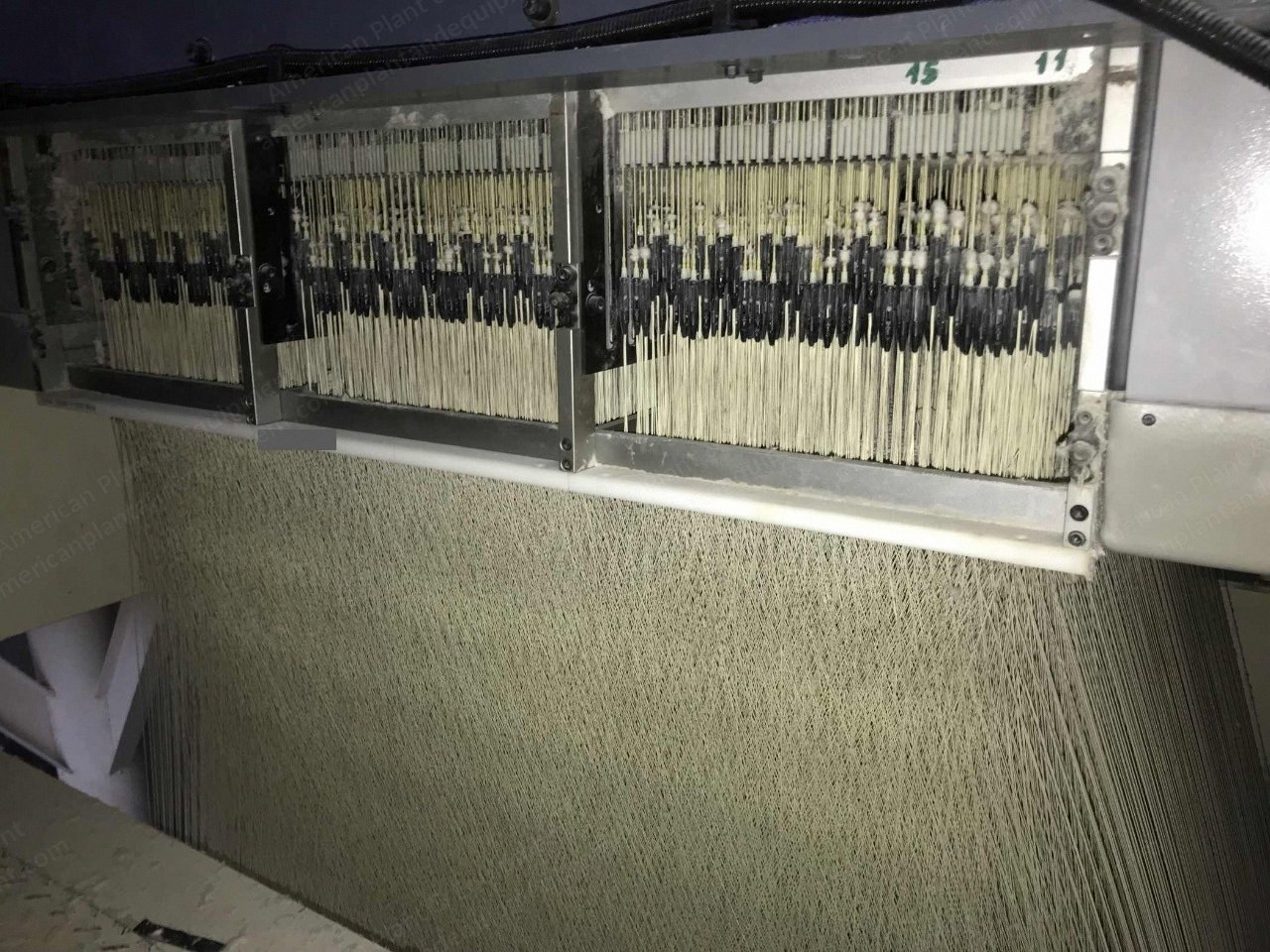

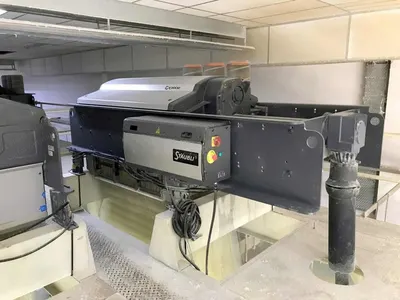

  2. Shedding Motion
    1. Make: Staubli
    2. Model: LX3202
    3. Jacquard controller type: JC5
    4. Jacquard motion type: electronic
    5. Jacquard motion hooks capacity: 6144 (body: 4800 + selvedge: 1344)
    6. Jacquard motion installed hooks: 4800
  3. Take-Up and Let-Off
    1. Take-up motion: electronic
    2. Let-off motion: electronic
    3. Cloth take-up type: on loom
  4. Selvedge and Temple
    1. Selvedge type: leno
    2. Temple type: normal
  5. Rollers and Bars
    1. Back rest roll: 2
    2. Warp stop bar: 6
    3. Cloth roller supplied: 1
  6. Warp and Harness
    1. Warp beam diameter: 800 mm
    2. Warp beam supplied: 1.5
    3. Harness board count: 64/113
    4. Harness cords supplied: 7232
  7. Shipping
    1. 1 loom can fit to a 40 ft container
