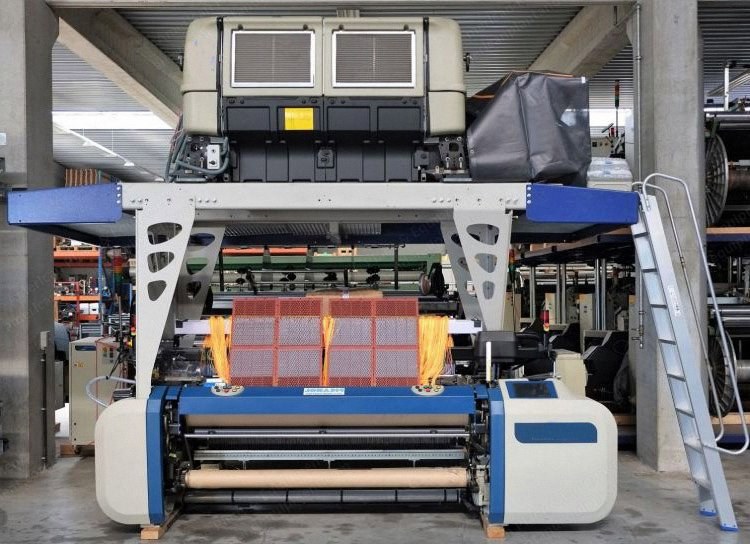

Picanol, Omniplus Summum-4-J-190, 2015, Air Jet Weaving Loom, 1900mm, 4 Colors, Bonas Jacquard

Picanol, Omniplus Summum-4-J-190, 2015, Air Jet Weaving Loom, 1900mm, 4 Colors, Bonas Jacquard

Description

  1. Overview
    1. Picanol Omniplus Summum-4-J-190 air jet loom
    2. Brand: Picanol
    3. Type: Omniplus Summum-4-J-190
    4. Year: 2015
    5. Working width: 1900 mm
    6. 4 colors installed
    7. Maximum speed: 1200 tpm
    8. Blue box (LDEC)
  2. Jacquard Equipment

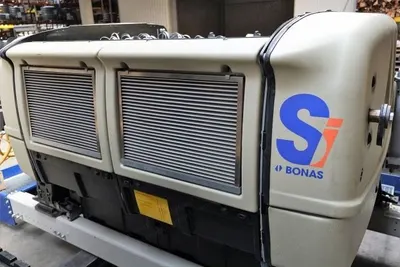

    1. Bonas type SI 09-24 9216 jacquard, year 2015
    2. 5376 hooks installed
    3. Harness Bonas 5376 ends
    4. Controller Bonas S800
  3. Weft System
    1. 4 weft colors
    2. 4 weft feeders Picanol type Blue Easyset with PFL and balloon breaker
    3. Feeder stand
    4. Bobbin creel with 4 bobbin switch sensors
  4. Warp System
    1. Warp tension roll Ø 120 mm with supports for 2nd whip roll
    2. Easing motion RHS
    3. Warp detection Grob with 6 detection bars
    4. Warp beam position 11
    5. Single pressure roll
    6. Warp beam Ø 805 mm
  5. Additional Equipment
    1. Sumo, ELO, ETU, PRA II Plus, Air Master
    2. E-leno RHS + LHS
    3. Elsy Plus RHS, touchscreen, waste-system with dustbin
    4. Internal cloth roll driving system
    5. Cloth roller, cardan axe
    6. Air reed DM1800 N°1259 L.M.1802
    7. Super frame jacquard construction with safety railing and stair
  6. Condition
    1. Testing demo loom (1782 running meters, tested without warp beam and without weft insertion)
