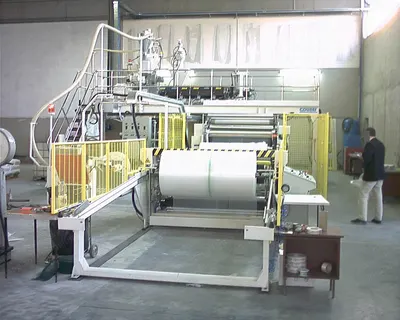

Colines, Air Bubble Line, 2010, 1600mm Width, 300 kg/hr Capacity

Colines, Air Bubble Line, 2010, 1600mm Width, 300 kg/hr Capacity

Description

  1. Overview
    1. Raw material: HDPE in granules, LDPE in granules, M.F.I. 1.7-2, density 0.919 with the possibility of using 30% LLDPE or metallocene LLDPE - 70% LDPE blends for the production of bubble films and the third layer
    2. Max film width: 1500 mm

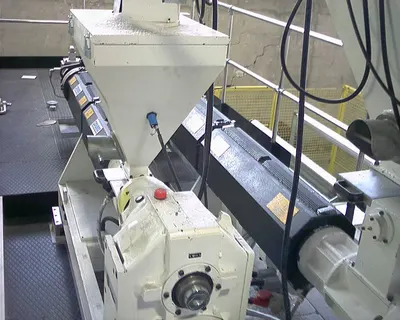

    3. Max capacity of the extruders: about 300 kg/hr
    4. Max line mechanical velocity: 45 m/min
    5. Min-max weight: 50-300 gr/m²
    6. Max reel diameter: 1000 mm
  2. Specifications
    1. Number of temperature control zones (pos. 1.1 + 1.3): 40
    2. Total installed power (pos. 1.1 + 1.2 + 1.3): about 300 kW
    3. Average absorbed power (pos. 1.1 + 1.2 + 1.3): about 200 kW
    4. Power supply: 400 V 3-phase N + G 50 Hz
    5. Useful width of the flat head: 1750 mm
    6. Diameter of the shaping cylinder: 450 mm

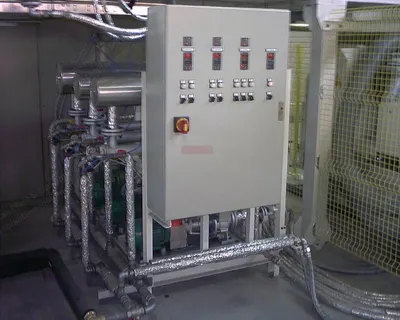

    7. Required water temperature: 14-15 °C
    8. Ambient humidity during production: max 70%
    9. Ambient temperature during production: max 30 °C
    10. Compressed air pressure: 6 bar
    11. Compressed air consumption: 4200 lt/hr
    12. Dimensions: 1600mm width
  3. Condition and Additional Details
    1. Painting of the machine: RAL 9001 (white)
    2. Requires 2 to 3 containers, maximum 4 containers to ship
