NovaStar, NN469, PP Single Beam Spunbonded Nonwoven Production Line, 1600mm Working Width, 3-6 t/day Capacity (New)

NovaStar, NN469, PP Single Beam Spunbonded Nonwoven Production Line, 1600mm Working Width, 3-6 t/day Capacity

Description

  1. Overview
    1. Pp single beam spunbonded nonwoven production line
    2. Single beam design
    3. Suitable for production of nonwoven fabric by spun-laid and hot-rolled reinforcement
    4. Uses pp as main material; color master batch, antioxidant, fire retardant as additives to produce nonwoven fabric with different colors and elements
    5. Able to produce s spunbonded nonwoven fabric
  2. Specifications
    1. Working width: 1600 mm

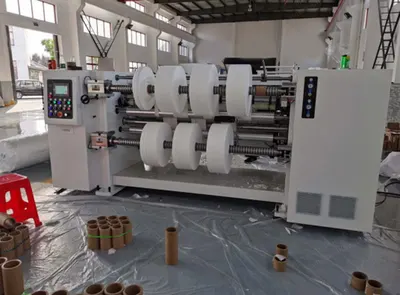

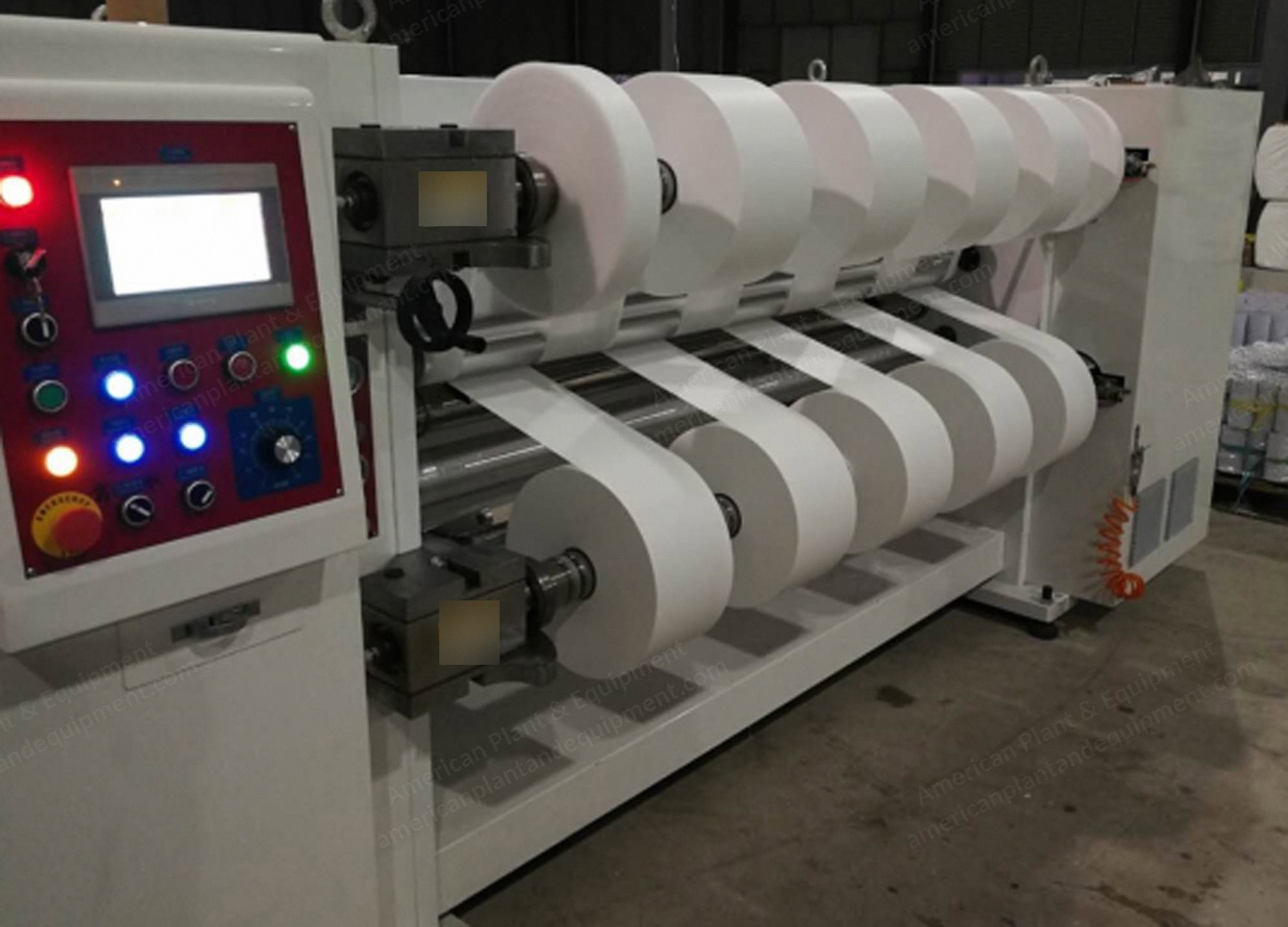

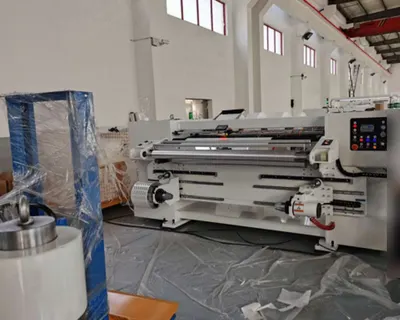

    2. With slitter which can slit into narrow width per exact requirements
    3. Machine speed: 9-150 m/min
    4. Process speed: 9-150 m/min
    5. Capacity: 3-6 t/day (calculation based on fabric 70 gsm, width at 1600 mm)
    6. Filament denier spunbond: 1.8-2.5 d
    7. Fabric weight: 10-250 gsm
    8. Total installed power (kw): 356
    9. Actual power consumption (kw): 150
    10. Water consumption (ton/day): 0.3
    11. Circulation water (m3/h): 0.3
    12. Raw material: 100% polypropylene granule fiber grade; mfi 25-40 for spunbond
    13. Pp chip molecule uniformity degree (%): >98%
    14. Melting point (°c): 166
    15. Ash: <0.15-0.25%
    16. Plant size: 25000 x 20000 x 12000 mm
    17. Labor requirement: 3 workers per shift, 2 shifts per 24 hours, totally 6 workers
  3. Fabric Standard
    1. S nonwoven fabric
    2. Allowable deviation (%) for first class: ±8 for 15-45 g/m2, ±7 for 60-120 g/m2
    3. Allowable deviation (%) for final product: ±10 for 15-45 g/m2, ±9 for 60-120 g/m2
    4. Width deviation (%) for first class: +2.0, -1.0
    5. Width deviation (%) for final product: +2.5, -1.5
    6. Fracture strength md (n/5cm) for first class: 15 at 15 g/m2, 35 at 30 g/m2, 50 at 45 g/m2, 68 at 60 g/m2, 95 at 90 g/m2, 130 at 120 g/m2
    7. Fracture strength md (n/5cm) for final product: 12 at 15 g/m2, 30 at 30 g/m2, 45 at 45 g/m2, 65 at 60 g/m2, 91 at 90 g/m2, 108 at 120 g/m2
    8. Fracture strength cd (n/5cm) for first class: 10 at 15 g/m2, 28 at 30 g/m2, 44 at 45 g/m2, 64 at 60 g/m2, 82 at 90 g/m2, 95 at 120 g/m2
    9. Fracture strength cd (n/5cm) for final product: 8 at 15 g/m2, 25 at 30 g/m2, 38 at 45 g/m2, 57 at 60 g/m2, 57 at 90 g/m2, 90 at 120 g/m2
