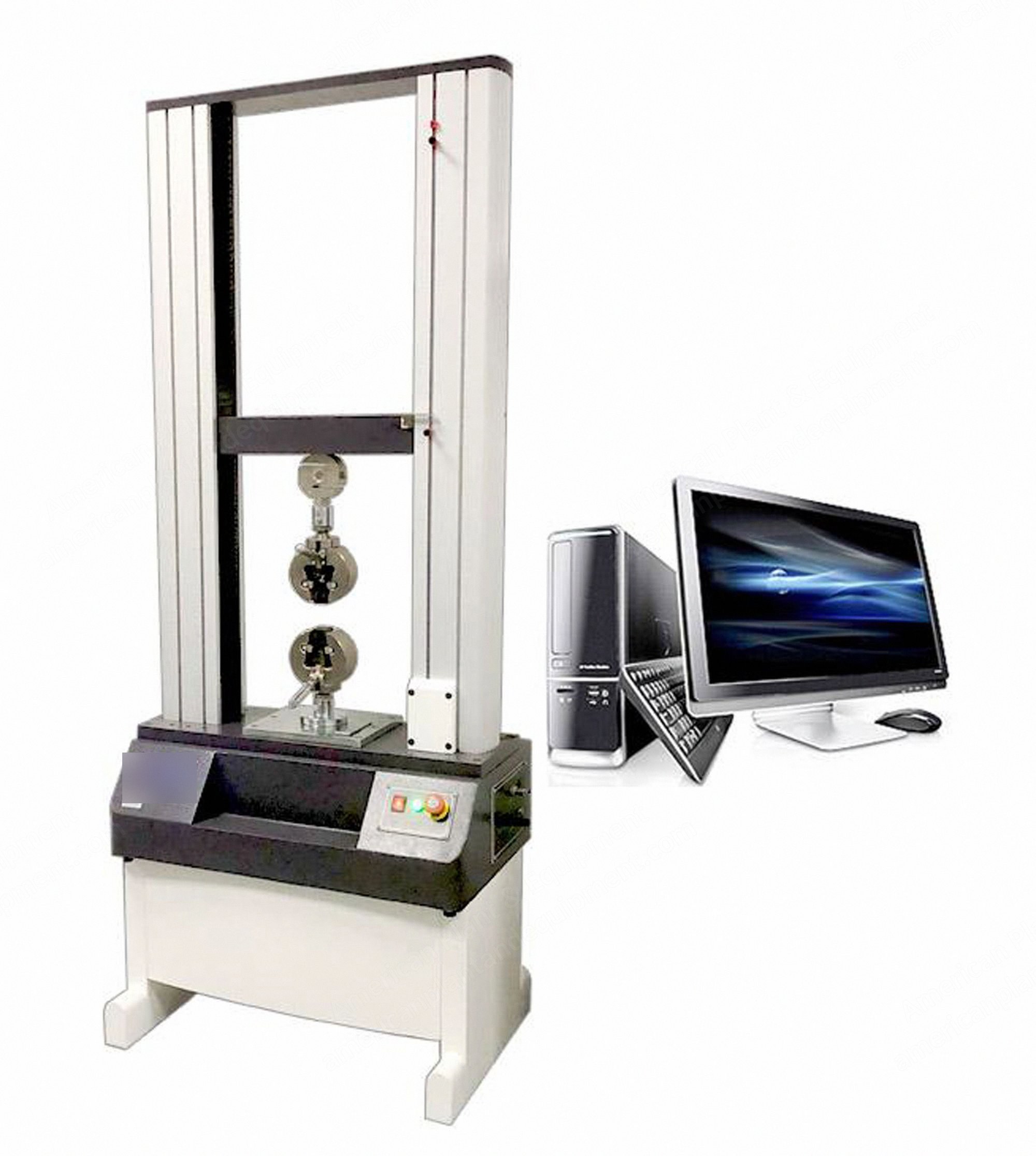

NovaStar, MC295, Universal Testing Machine, Maximum Load 50kN, Test Stroke 800mm, Software Control (New)

NovaStar, MC295, Universal Testing Machine, Maximum Load 50kN, Test Stroke 800mm, Software Control

Description

  1. Overview
    1. 50kn universal testing machine is a new material test machine that combines electronic technology and mechanical transmission.
    2. It has accurate load speed and range of force measurement, with high accuracy and sensitivity for load, displacement measurement and control.
    3. It can test constant-velocity loading and constant-velocity displacement.
    4. The machine is simple to operate, especially suitable for controlling quality in a production line.
    5. This series is mainly applied to test non-metallic and metallic materials with load less than 5 tons.
  2. Main Functions
    1. Applied to test flexible material with large deformations, such as rubber, plastics, leather and others.
    2. Completes tests of tensile, tear, adhesive strength, peel and other tests.
    3. Equipped with a large deformative extensometer with specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
  3. Main Features
    1. Photoelectric encoder to measure displacement; the controller uses an embedded single-chip microcomputer structure with multi-function software, combining measurement, control, calculation and storage.
    2. Automatically calculates stress, rate of elongation (needs extensometers), tensile strength, elastic modulus, and automated statistical results.
    3. Automatically records the biggest point, breaking point, designated point value or rate of elongation.
    4. Uses computer to display dynamic curves in the testing process and process data; after testing, can re-analyse and edit data by amplifying curves through the graphics processing module, printing reports.
    5. Product performance reached the international advanced level.
  4. Applicable Industry
    1. Widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities, research laboratories, inspection arbitration, technical supervision departments and many other industries.
    2. It is the basic equipment for quality management and physical testing.
  5. Technical Specifications
    1. Model: 50kn universal testing machine.
    2. Max load: 5kn, 10kn, 20kn, 50kn.
    3. Accurate grade: 1% / 0.5%.
    4. Effective measuring range: 0.2%~100% (1 grade) / 0.4%~100% (0.5 grade).
    5. Measuring accuracy: display the value ±1% / display the value ±0.5%.
    6. Tester resolution: max load 1/200000, regardless of inside and outside, constant resolution.
    7. Load sensor basic configuration: sensor (max load) one.
    8. Load sensor extended configuration: can add more sensors.
    9. Effective testing width: 390mm (can be widened according to customer’s requirement).
    10. Effective tensile stroke: 800mm; 1000mm; 1200mm (can be customized).
    11. Range of testing speed: 0.001~200mm/min; 500mm/min (1000mm/min is option).
    12. Accuracy of displacement measurement: tolerance ±0.5% / tolerance ±0.2%.
    13. Deformation of measured system min span: 10mm, max range of deformation: 800mm extended deformation.
    14. Deformation of measured system min span: 25mm, 50mm, 100mm, range of deformation: 5mm, 10mm, 25mm.
    15. Accuracy of measured deformation: tolerance ±0.5% (according to choose the larger or small deformation).
    16. Safety: electronic-limit protection.
    17. Testing platform moving device: fast/slow two speeds to control, can jog.
    18. Return back: manual or automatic operation; after the test, the moving iron returns to initial position with the highest speed by manual or automatic operation.
    19. Overload protection: overload 10%, automatic protection.

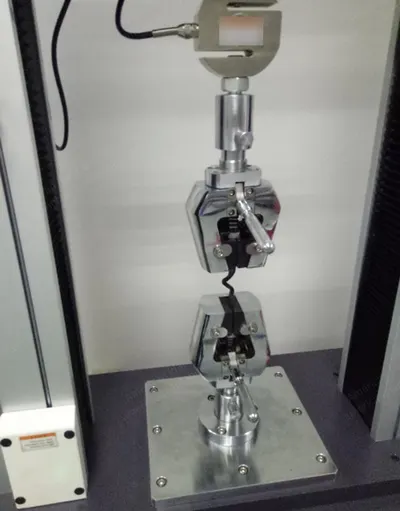

    20. Fixture: a set of tensile fixture.
    21. Machine size: 800 x 550 x 2200mm (length x width x height).
    22. Power system: panasonic ac servo motor + driver + high-precision ball screw.
    23. Power supply: 220v, 60 hz.
    24. Power: 0.4kw (depending on different demand of force, uses different motor).
    25. Machine weight: about 250 kg.
    26. Units: kg, n, lb, ton can be exchanged.
  6. Software Features
    1. Desktop computer type servo tensile testing machine software.
    2. Function of standard modules: provide users with the necessary applications to the test, covering gb, astm, din, jis, bs and other testing standard specifications.
    3. Tested product information: provide users with the data to set about the products, one time to input and re-use permanently; for improving accuracy, the data can be corrected by the formula automatically.
    4. Dual-report editor: provide users with the reported format that users choose (testing program add excel reported format, extend the previous single pattern of statements).
    5. The data’s unit of length and force can be exchanged; unit of force is t, kg, n, kn, g, lb; unit of length is mm, cm, inch.
    6. Auto-optimization of graphic scale, display the best measurement of graphics; it can test the moving exchange in graphics; it has the load-displacement, load-time, displacement-time, stress-strain load-2 points extending maps, and lots of graphs compared.
    7. Test results can be output in excel format.
    8. Testing result can be automatically preserved or manually preserved; after the test, it can automatically calculate the most strength, up and down yield strength, loop method, best method, non-proportional extended strength, tensile strength, compressive strength, tensile strength at any point, constant load extension, elastic modulus, rate of elongation, peel range of maximum force, minimum force, average force, total energy, bending modulus, x% load in break displacement, load x% in break displacement, and so on; the test data can be stored in any disk.
    9. Software has a capability that can output the data.
  7. Included Accessories
    1. Operating instructions.
    2. A group of fixtures.
    3. Testing software for tensile machine.
    4. A brand name computer, color printer.
  8. Testable Items
    1. Tensile stress.
    2. Tensile strength.
    3. Rate of elongation at break.
    4. Fixed stress.
    5. Rate of stress at break.
    6. Stress strength.
    7. Tear strength.
    8. The value of force at any point.
    9. Rate of elongation at any point.
    10. Pull-out strength.
    11. Force of adhesion and the peak of force.
