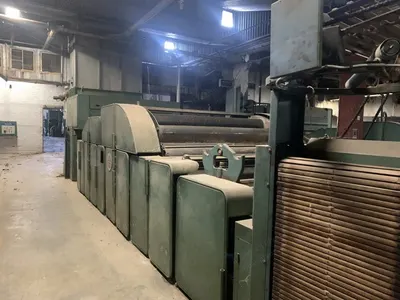

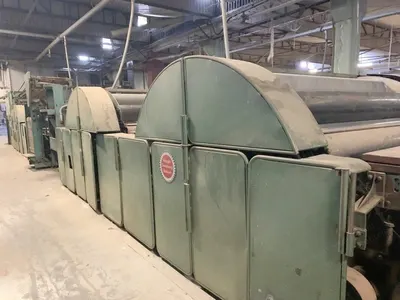

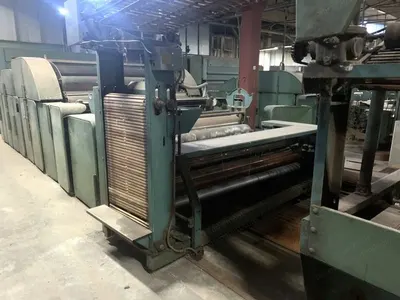

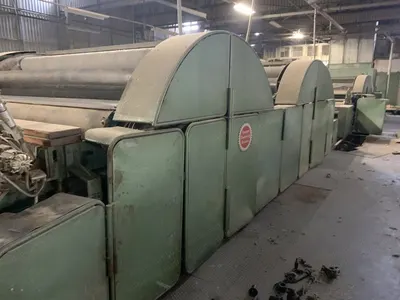

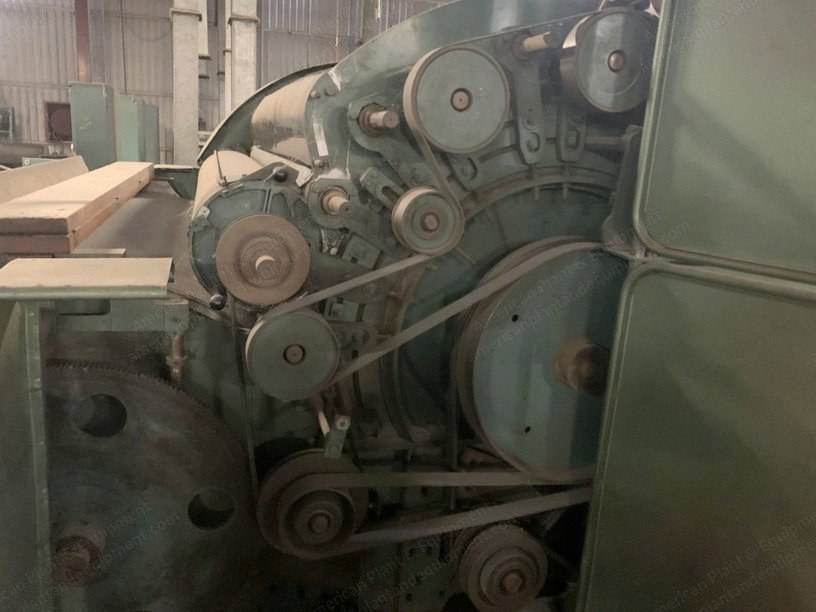

HDB, Tandem Woollen Carding Set, 1975/1976, 2500mm Working Width, 2 and 3 Swifts

HDB, Tandem Woollen Carding Set, 1975/1976, 2500mm Working Width, 2 and 3 Swifts

Description

  1. Item 001: 3-Swift Tandem Woollen Carding Set
    1. Still complete on floor
    2. HDB
    3. Year 1976
    4. Working width 2500 mm
    5. With 160 good ends

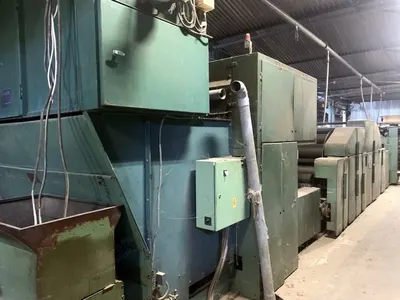

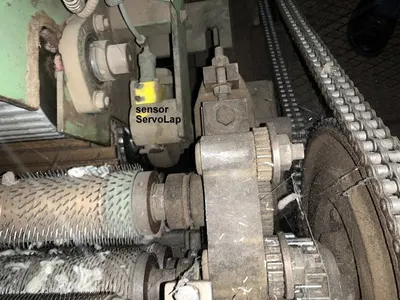

    6. Includes hopper feeder, volumetric feeding, servolap control, licker-in with worker/stripper
    7. Avantrain diameter 1270 mm, rigid wires, 4 workers, 4 strippers, transfer roller, 1 swift

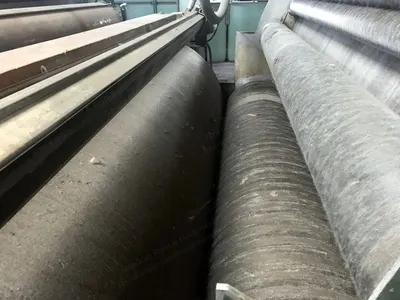

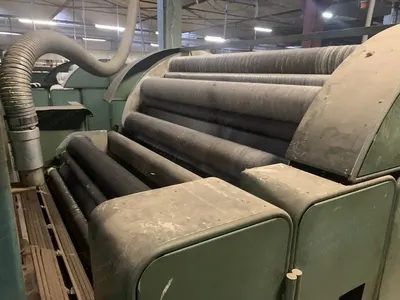

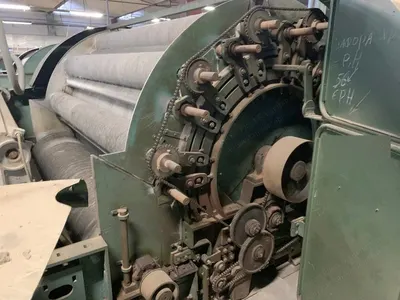

    8. Maincylinder diameter 1500 mm, 5 workers, 5 strippers, fancy roller, comber 1270 mm, flexible clothes, peralta, cross lapper, 2 swift
    9. Licker-in with 1 pair worker/stripper, maincylinder diameter 1500 mm, 5 workers/strippers, fancy roller, comber diameter 1270 mm, traverse roller diameter 550 mm, flexible clothes, 3 swift

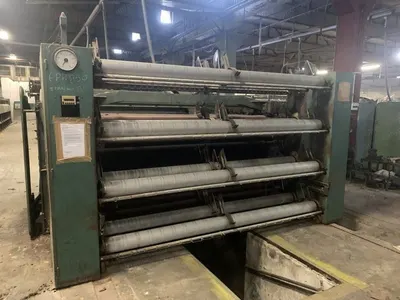

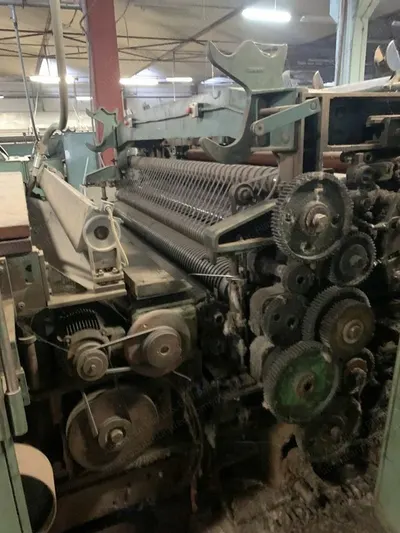

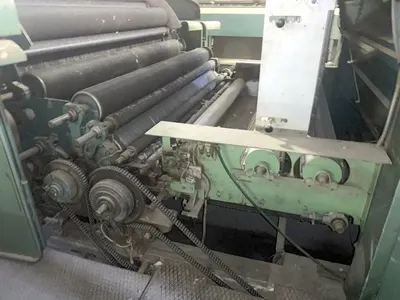

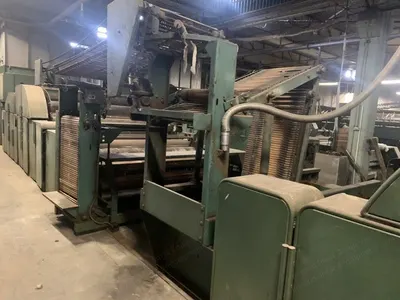

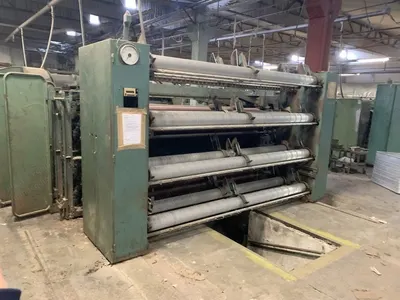

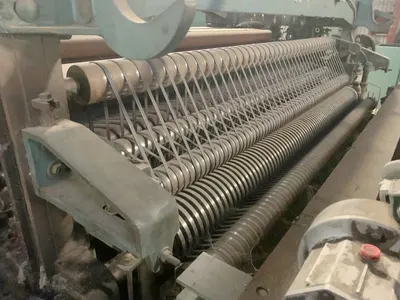

    10. Maincylinder diameter 1500 mm, 5 workers/strippers, fancy roller, comber diameter 1270 mm, flexible clothes, double apron tape condenser, 160 good ends, double winder creel for 16 bobbins each 10 ends
    11. Equipped with cleaning devices on the main cylinders and doffers for pneumatic suction of the dirt

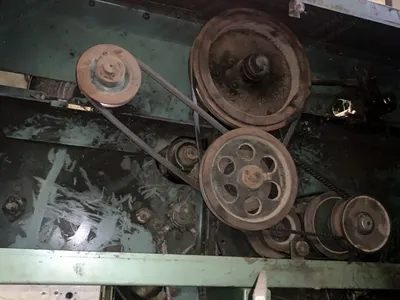

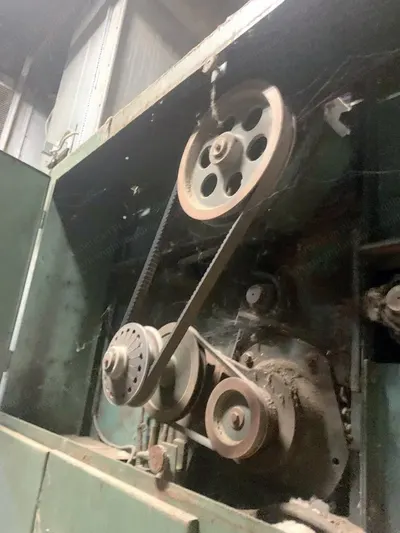

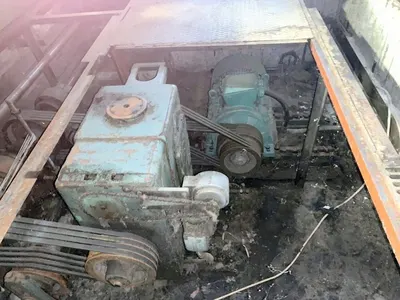

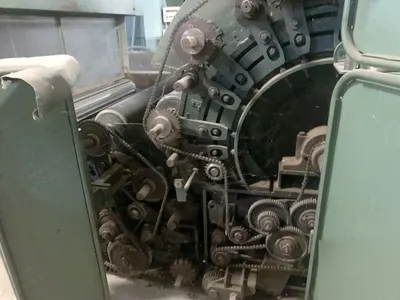

    12. Swifts and double apron tape condenser driven by a longitudinal shaft parallel to the machine with a central motor 37 kW, 380 V/3 ph/50 Hz
    13. Ensures synchronous drive of all machine elements
  2. Item 002: 2-Swift Woollen Carding Set
    1. Still complete on floor
    2. HDB
    3. Year 1975
    4. Working width 2500 mm
    5. With 128 good ends
    6. Includes hopper feeder, volumetric feeding, servolap control, licker-in with worker/stripper
    7. Avantrain diameter 1270 mm, rigid wires, 4 workers, 4 strippers, transfer roller, 1 swift
    8. Maincylinder diameter 1500 mm, 5 workers, 5 strippers, fancy roller, comber 1270 mm, flexible clothes, cross lapper, 2 swift
    9. Licker-in with 1 pair worker/stripper, maincylinder diameter 1500 mm, 5 workers/strippers, fancy roller, comber diameter 1270 mm, flexible clothes
    10. Double apron tape condenser, 128 good ends, double winder creel for 16 bobbins each 8 ends
    11. Equipped with cleaning devices on the main cylinders and doffers for pneumatic suction of the dirt
    12. Swifts and double apron tape condenser driven by a longitudinal shaft parallel to the machine with a central motor 37 kW, 380 V/3 ph/50 Hz
    13. Ensures synchronous drive of all machine elements
