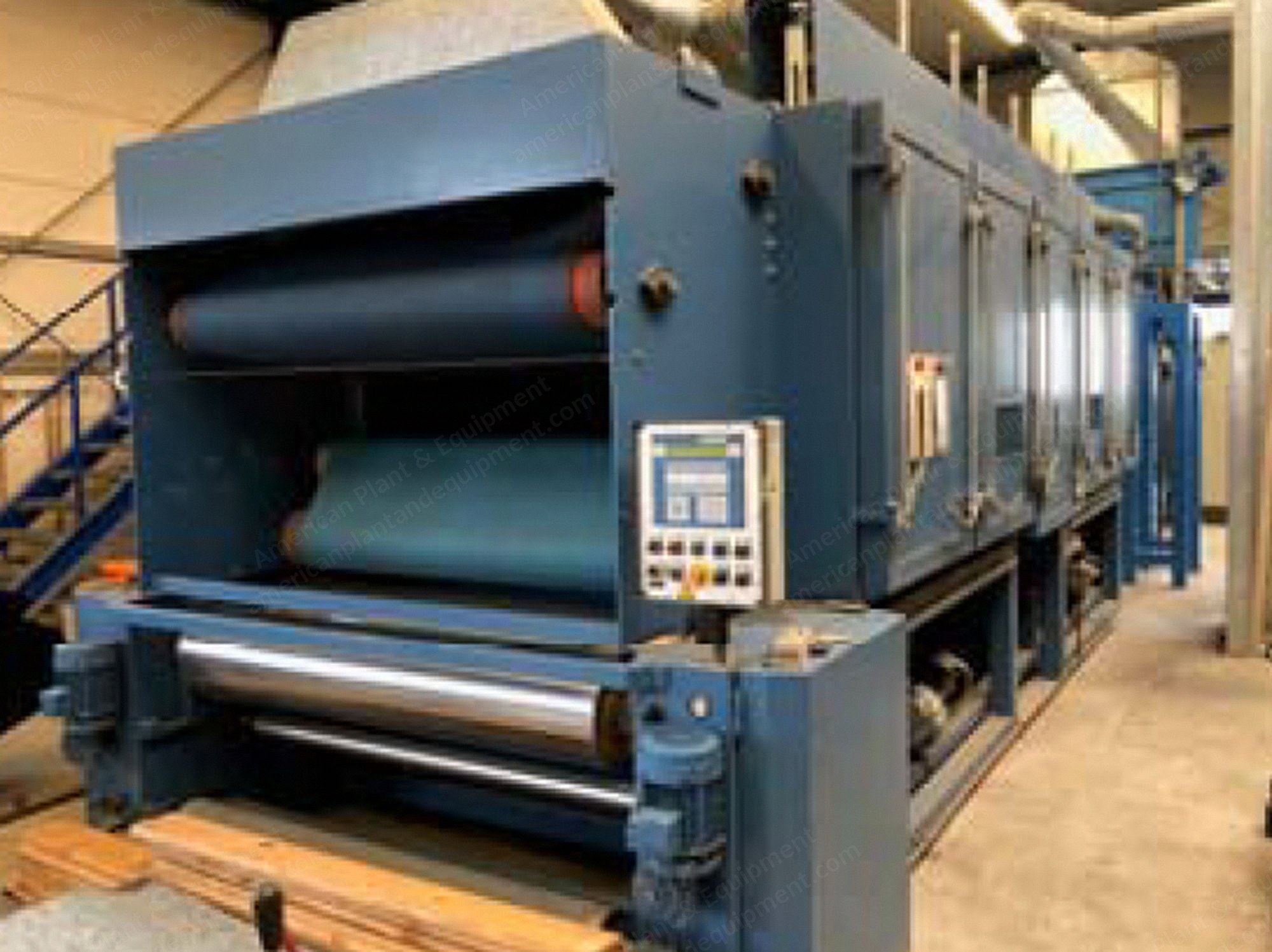

Description Overview Sample system from the laboratory Year 1996 Usable working width 1400 mm 2 heating zones, each separately gas heated Air distribution adjustable above and below Sieve belts above and below Each chamber separately adjustable from 10 to 200 mm Maximum temperature 220° C Weight per unit area approximately 20 kg/m², depending on the fiber type Specifications Cooling calender and circumferential winder Complete with control cabinet Exhaust fan and approximately 10000 mm exhaust pipe External dimensions 10000 mm x 3800 mm (L x W) Condition Calibration included Included Accessories Additional conveyor belt for extension feed table
