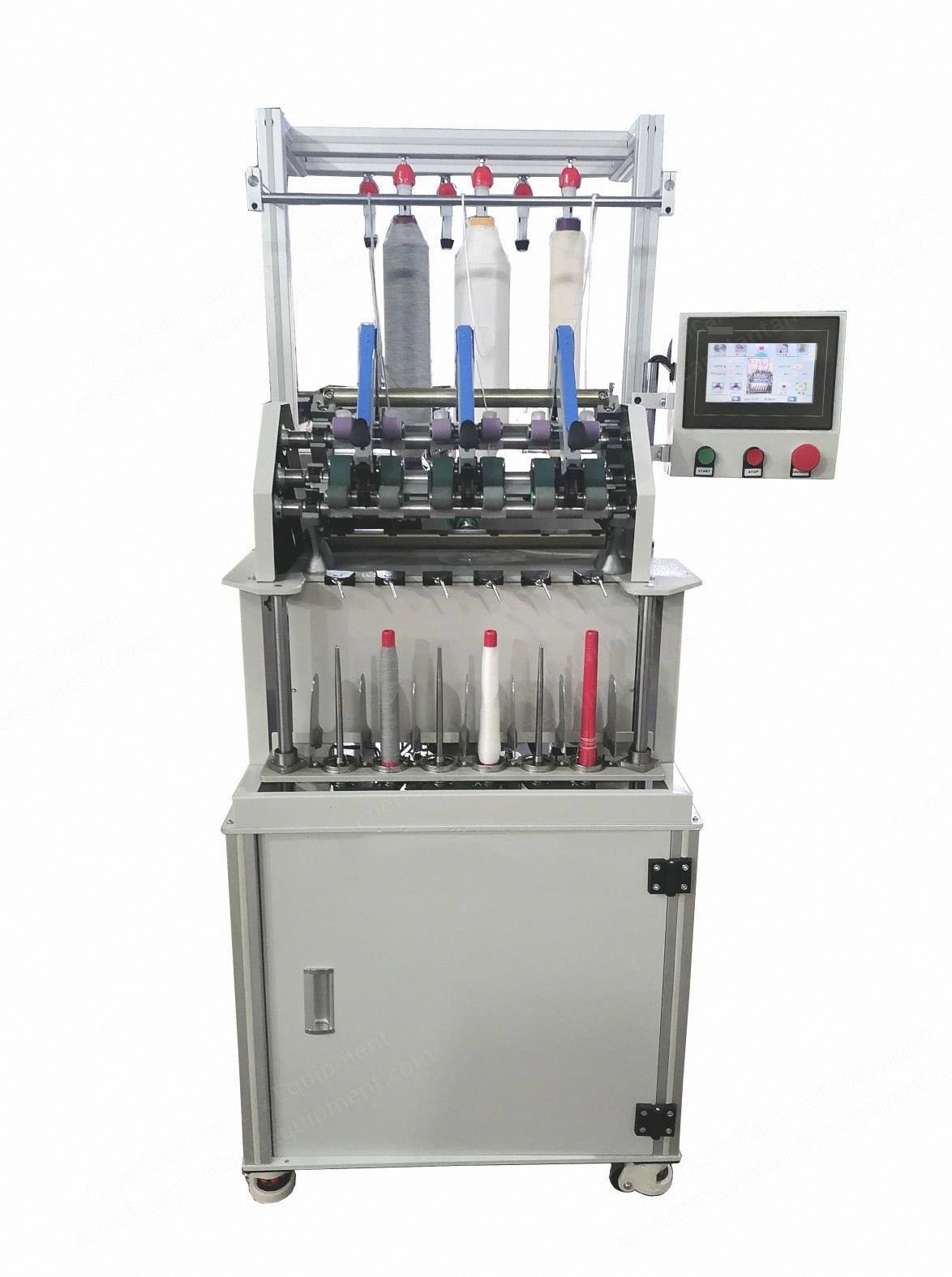

NovaStar, TL161, Lab Ring Spinning Frame, 6 Spindles, 1.5 kW (New)

NovaStar, TL161, Lab Ring Spinning Frame, 6 Spindles, 1.5 kW

Description

  1. Overview
    1. Lab ring spinning frame used to spin roving into spun yarn through drafting and ring spinning
    2. Ideal system for teaching, researching, etc.
  2. Features
    1. Delta brand plc, drive, servo motor
    2. Plc + touch screen control, easy to learn and operate
    3. Use touch screen as man-machine interface, input technical parameters and show machine running state by touch screen
    4. Use s/z twist turning
    5. Rotation speed of spindle accurate to ±1%
    6. Aluminum profile body frame with four casters, free to move
    7. Modular independent drive for drafting, spindle blade and flyer
    8. Multi-functional design, easy to clean, set and maintain
  3. Specifications
    1. Control mode: touch screen & plc
    2. Number of spindles: 6
    3. Applicable fiber length: 22 to 50 mm
    4. Draft range: 10 to 50
    5. Draft control: automatic
    6. Roller diameter: front roller: φ25 mm, middle roller: φ25 mm, back roller: φ25 mm
    7. Center distance of rollers: front and middle: 43 mm, front and back: 143 mm
    8. Pressure mode: spring cradle
    9. Twist settable range: 200 to 2,000 twist/m
    10. Ring diameter: ring not needed if there is no need for twisting function; this machine will use a shaft to move the yarn up and down to wind on the pirn
    11. Total kw: 1.5 kw
    12. Voltage: 220 volts, 3-phase, 60 hz
    13. Weight: 650 kg
    14. Dimensions: 1750 x 760 x 1950 mm
    15. Spindle speed: 3800 rpm
    16. Twist direction: s or z
    17. Max. speed of spindle: 12,000 rpm
    18. Spindle gauge: 70 mm
    19. Spindle length: 205 mm
    20. Ring diameter: φ42 mm
    21. Yarn density range: 6~99 tex (6~100 ne)
    22. Capacity: approx. 0.25~1 kg/h
    23. Power supply: ac220v, 50 hz
    24. Net weight: 430 kg
  4. Standard Configuration
    1. Gauge: 3 pcs
    2. Iron roller: 1 pc
    3. Top apron cot: 4 pcs
    4. Bottom apron cot: 4 pcs
    5. Loose boss roller (front & back): 1 pc for each
    6. Horn mouth: 6 pcs
    7. Belt: 1 pc
    8. Traveller: 100 pcs
    9. Bobbin plastic tube: 30 pcs
    10. Gauge (center to center distance between spindles): 70 mm
    11. Ring diameter: no need for ring diameter, if you have no demand for twisting function, then ring is not necessary; this machine will use a shaft to move the yarn up and down to wind on your pirn
    12. 8 spindles
    13. Dimension: 1750 x 760 x 1950 mm
    14. Spindles rpm to show the speed, max. speed is 3800 rpm
    15. Common feeding yarn bobbin height is about 180 mm
    16. Cotton yarn counts the machine can spin: suitable fiber length is 22 to 50 mm
    17. Range of yarn counts: 6 to 99 tex (6 to 100 ne)
    18. Spindle rpm: 12,000 rpm maximum, adjustable
