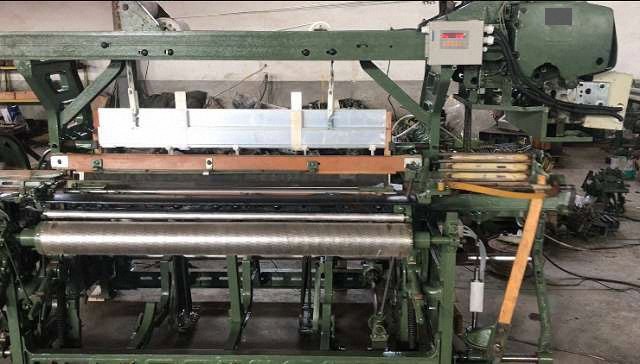

Description Overview Multicolor warp yarn or twisted warp Weft with four different colored weft yarns possibility and/or weft threads as per color-mixing pattern Right hand or left-hand loom is offered Technical Specifications Type: under picking type, multi-shuttle-box, automatic stop, manual weft releasing Mechanical dobby with 20 levers, including 16 harnesses mounted Reed spaces offered: 75, 80, 100 in or 110 in Crank shaft speed: 80 to 140 rpm Angle between reed and shuttle plate: 86°36' Clutch driven by motor with triple belt drive Motor model: 0.8/1.5 kW, 960 rpm Shuttle box type: 1×4 multi-box Shuttle box movement: servo motor Shuttle size: 380 x 45 x 35 mm Pirn sizes: 230 mm and/or 190 mm Shedding device: mechanical dobby with electrical card Beating-up motion: warp yarn protecting reed beating-up Let off motion: outside let-off motion Take-up motion: continuous take-up motion, max rolling diameter: 300 mm Weft stop motion: side fork or weft feeler with automatic stop upon detection when no weft
