Solar, Titan 130, 2007, 15000 kWe, 50Hz / 60Hz, Natural Gas

Solar, Titan 130, 2007, 15000 kWe, 50Hz / 60Hz, Natural Gas Sold

Description

  1. Overview
    1. Solar Titan 130 gas turbine
    2. 15,000 kWe
    3. 11,170 rpm / 60 Hz
    4. 11,197 rpm / 50 Hz
    5. Fuel gas

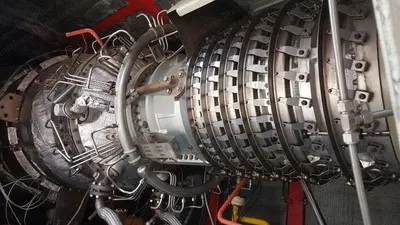

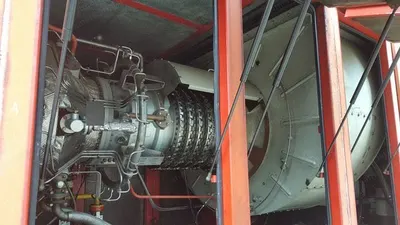

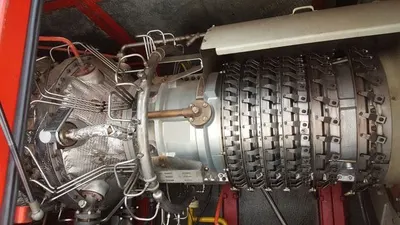

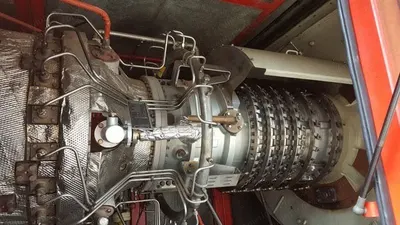

  2. Gas Turbine Specifications
    1. Brand: Solar (Turbomach Company)
    2. Model Titan: 130 (T-20501)
    3. Operation: Continuous
    4. Turbine design: Open cycle, single shaft, cold-end drive
    5. Compressor: 14 stage, axial
    6. Combustion ratio: 16:01
    7. Combustion chamber: Annular with 21 injector
    8. Turbine: 3 stage, axial-reaction
    9. Turbine speed: 11,197 rpm
    10. Nominal shaft power rating: 15,587 kW
    11. Heat input: 42,613 kJ/s
    12. Turbine air inlet flow: 48.9 ng/s
    13. Exhaust gas temperature: 496 °C
    14. Exhaust gas mass flow: 49.7 kg/s
    15. Thrust bearing: Tilting pad type
    16. Fuel type: Natural gas
    17. Hours: 19,000 hours
    18. Year built: 2007
    19. Gas turbine weight: Approx. 91 ton
  3. Generator Specifications
    1. Brand: Leroy Somer
    2. Type: LSA58 BMCL 14 4P (gas turbine drive)
    3. Synchronous: Triphased
    4. Connections: Star
    5. Rated output: 15,970 kVA
    6. Voltage: 3,450 V
    7. Frequency: 50 Hz
    8. Power factor: 0.9
    9. Polarity: 4P
    10. Speed: 1,500 rpm
    11. Machine protection: IP 54
    12. Terminal box protection: IP 55
    13. Insulation: H
    14. Temperature rise: F
    15. Generator air gap: 15 mm
    16. Exciter air gap: 1.5 mm
    17. Ambient temperature: 40 °C
    18. Cooling: IC8A1W7
    19. Weight of rotor: 10,239 kg
    20. Total weight: 30,480 kg
    21. Hours: 2,000 hours (new overhaul)
    22. Year built: 2007
  4. Gas Compressor
    1. Brand: Enerproject SA
    2. Year: 2007
    3. Suction flow: 710 m³/h
    4. Suction pressure: 7 bar g
    5. Discharge pressure: 25 bar g
    6. Rotating speed: 2,980 1/min
    7. Power: 400 kW
  5. Included Equipment
    1. Boiler HRSG (heat recovery steam generator) 30 ton
    2. Feed water transfer pump
  6. Specifications
    1. Weight: 91000
