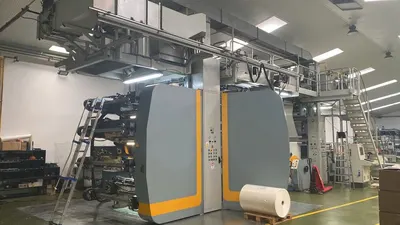

Schiavi, Syrio, 1997, 8 Colors, 1300mm Max Printing Width, Central Drum

Schiavi, Syrio, 1997, 8 Colors, 1300mm Max Printing Width, Central Drum

Description

  1. Overview
    1. Flexographic printer, 8 colors
    2. Syrio model by Schiavi, Italy
    3. Flexo central drum, geared
    4. Year manufactured in 1997; first run in 1998
    5. Printing groups: 8 around the central drum
  2. Specifications
    1. Material passage width: max. 1320 mm, min. 660 mm
    2. Printing width: max. 1300 mm, min. 640 mm
    3. Printing developments: min. 300 mm, max. 900 mm
    4. Max speed printing: 300 to 350 mpm
    5. Plate thicknesses: anilox 1.14 mm
    6. Plate holder: integral
    7. Ink types: solvent based
    8. Printing possibilities: 8+0
    9. Inversion bar to do: 4+4 (currently not used)
    10. Registration control: longitudinal and transversal, automatic
    11. Group feed motors: 4+4 per color (anilox + plate holder)
  3. Printing Inspection
    1. Video camera: BST
  4. Inking System
    1. Raclas: 8 closed chambers
    2. Ink pumps: 8 electric pumps
    3. Tanks: 8 ink tanks
    4. Viscometers: existing but not working
    5. Clichés: 8 sleeve holders + pinions

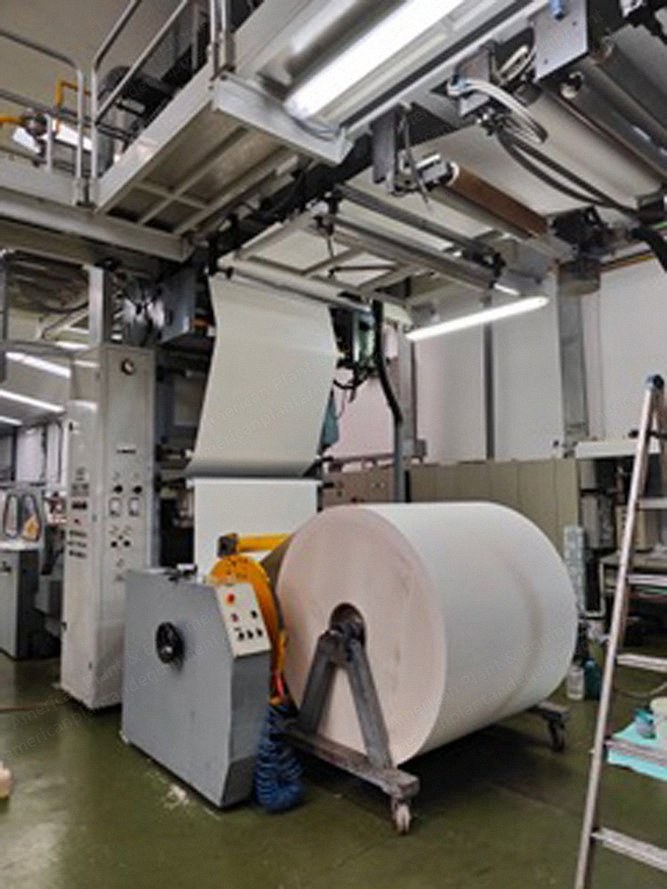

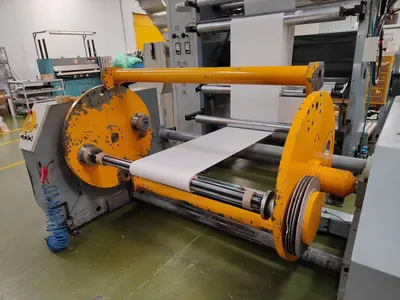

  5. Unwinder
    1. Type M-3011 non stop, automatic, 800 mm
    2. Extra unwinder in diameter 1100 mm
    3. Max. of coil: expandable shafts 2x76 mm, 2x152 mm
    4. Coil loading: hoist
    5. Brake: electric motor
    6. Tension control: by rocker
    7. Tension range: from 3 to 22 kg

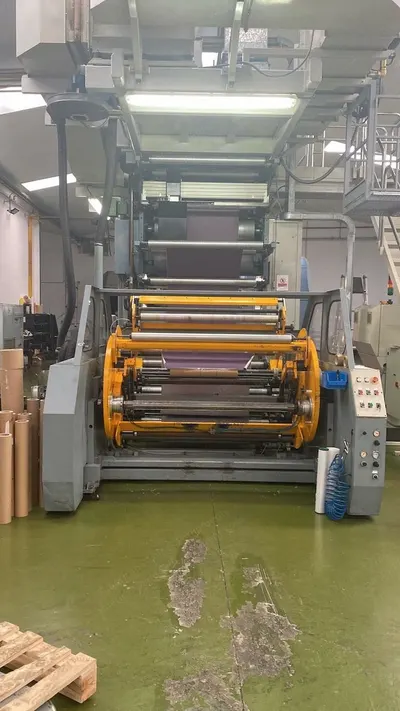

  6. Rewinder
    1. Type M-4012 non stop, automatic
    2. Diameter max. coil length: 800 mm
    3. Expandable shafts: 2x76 mm, 2x152 mm banana
    4. Spreader roller: banana
    5. System of cut to the change: in 2 senses
    6. Tension control: decreasing (taper tension)
    7. Meter counter: digital counter

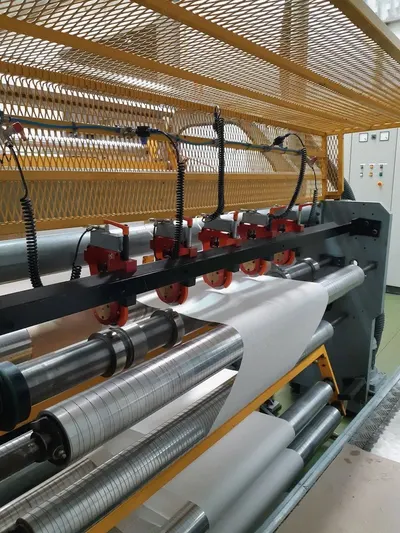

    8. Selvedge cut: 2 side cuts
    9. Line cutting: 4 knife holders (recent equipment)
  7. Drying System
    1. Drying between colors and in tunnel
    2. Energy for drying: natural gas
    3. Number of burners: 2
    4. Tunnel length: 4000 mm
    5. Air recirculation: pneumatic dampers
  8. Calender and Temperature Control
    1. Ironers: 2 units
    2. Temperature control: Co-Re-Ma (included in the supply)
  9. Included Equipment
    1. Band aligners: 2x BST
    2. Cliché holder sleeves: 120
    3. Anilox rollers: 11
    4. Additional blades: 8
    5. Additional ink pump: 1
    6. Pressure for trolling motor: 1
    7. Hoists for changes: 2
  10. Materials to Be Printed
    1. OPP: 15-80 µ
    2. BOPP: 15-80 µ
    3. PET: 12-80 µ
    4. PA: 15-80 µ
    5. Paper: 35-80 gsm, but the client gets to work with thicknesses also over 100 g/qm
  11. Condition and Availability
    1. Available immediately
    2. Can be tested
