Wartsila, 18V32, HFO Fired Generator Sets, 6 MW, 6.6 kV, 50 Hz

Wartsila, 18V32, HFO Fired Generator Sets, 6 MW, 6.6 kV, 50 Hz

Description

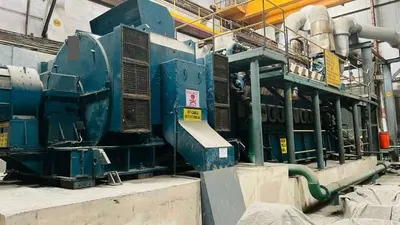

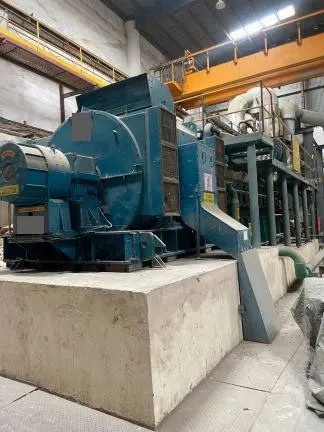

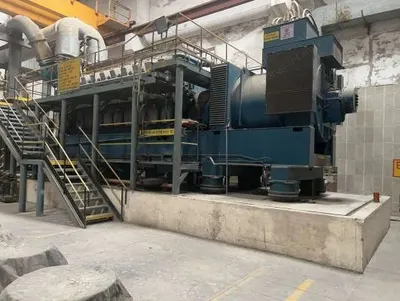

  1. Generator Set 1
    1. Engine brand: Wartsila
    2. Engine type: 18V32
    3. Power capacity: 6 MW
    4. Rpm: 750
    5. Running hours: 4175
    6. Alternator brand: Jyoti Ltd
    7. Alternator type: THG B 195-8-D5
    8. Kva: 7500
    9. Rpm: 750
    10. Hz: 50
    11. Volt: 6600

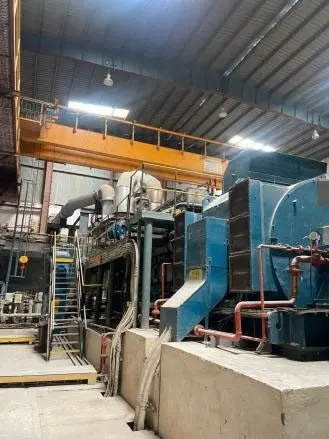

  2. Generator Set 2
    1. Engine brand: Wartsila
    2. Engine type: 18V32
    3. Power capacity: 6 MW
    4. Rpm: 750
    5. Running hours: 3784
    6. Alternator brand: Leroy Somer
    7. Alternator type: PA 160 G 105-95-8P
    8. Kva: 8200
    9. Rpm: 750
    10. Hz: 50
    11. Volt: 6600
  3. Generator Set 1 Components

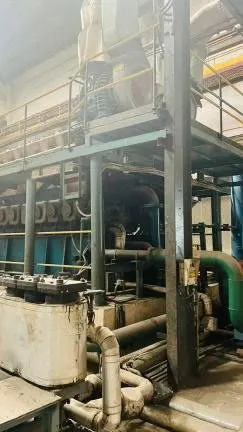

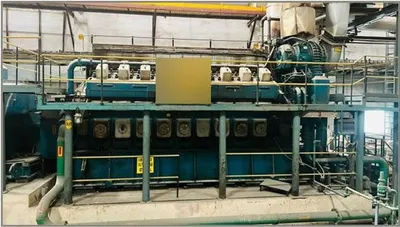

    1. Engine brand: Wartsila, type: 18V32, rpm: 750
    2. Generator brand: Jyoti Ltd, kw: 6000, kva: 7500, volts: 6600, amps: 656, rpm: 750

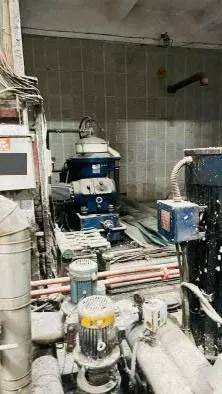

    3. Lubricating oil separator unit brand: Alfa Laval, type: MOPX-207, control unit: DCU-30, capacity: 2000 LPH, kw: 7.5
    4. HT water preheating unit brand: Kirloskar, type: KDP 20/13 Q, rpm: 2900, flow: 42 m³/hr, pressure: 2 bar, temperature: 70 to 80 °C, capacity: 3.0 W/cm², fluid: treated water, heater: 30 kW
    5. Fuel supply unit brand: IMO, model: ACE 038K2, lpm: 70, rpm: 2900, cst: 100/250, pressure: 3.7 bar, kw: 3.7, type: screw
    6. Lubricating oil filter brand: Finn-Filter-Oy, type: FFP, filter design pressure: 11.0 bar, filter working pressure: 8.0 bar, working temperature: 100 °C, filtration size: 30, filtration surface area: 150, filter flow media: HSD

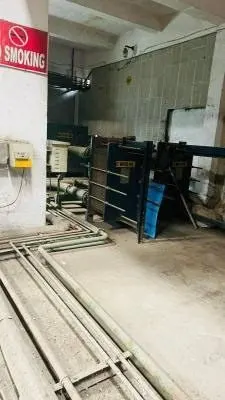

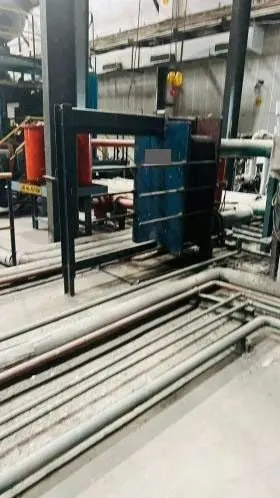

    7. Lubricating oil plate heat exchanger brand: Alfa Laval, model: AK 20 FM, type: plate heat exchanger, pressure: 10 bar, working temperature: 110 °C, number of plates: 154 (L-647 mm)
    8. LT water plate heat exchanger brand: Alfa Laval, model: AK 20 FM, type: plate heat exchanger, pressure: 10 bar, working temperature: 110 °C, number of plates: 174 (L-735 mm)
    9. HT water plate heat exchanger brand: Alfa Laval, model: AK 20 FM, type: plate heat exchanger, pressure: 10 bar, working temperature: 110 °C, number of plates: 50 (L-202 mm)
    10. Pre-lube pump brand: IMO, type: screw, model: ACG 60-2N3F, kw: 11, pump head: 33 m, pressure: 2.0 kg/cm², rpm: 2900
    11. Air receiver tank model: Geecy Engineering Corporation, design pressure: 33.6 kg/cm², test pressure: 50 bar
    12. Turbocharger A bank brand: ABB, type: VTR 354-11
    13. Turbocharger B bank brand: ABB, type: VTR 354-11
    14. Governor brand: Woodward, type: PGG-58, engine speed: 750 rpm
    15. Fuel feeder unit brand: Allweiler Tushaco Ind. Ltd., type: SNF-40/46, lpm: 35, kw: 3.7

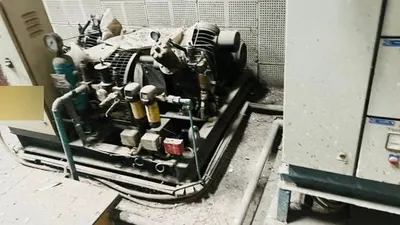

    16. Air compressor unit 1 brand: Ingersoll Rand, model: 15T2, kw: 22, pressure: 30 bar
    17. HFO day tank capacity: 40 kL, heater: 5/GP-013F2 insulated
    18. HFO settling tank capacity: 30 kL, heater: 1/-GP-012F2 insulated
    19. HFO unloading unit 1 brand: Initial Corporation-Gujarat, discharge: 415 LPM, size: 3 x 3, fitting frame: DSP, type: ICR X 300 S
    20. HFO separator brand: Alfa Laval, type: MOPX-308 SGT-24, control unit: EPC-400, capacity: 3500 LPH, motor: 30, rpm: 1500
    21. FO transfer unit: 2 pumps without motor, capacity: 2.2 kW
    22. Raw water pump: 6 UP 3.15 deg (2 nos.) / UP 150/388 (1 no.)

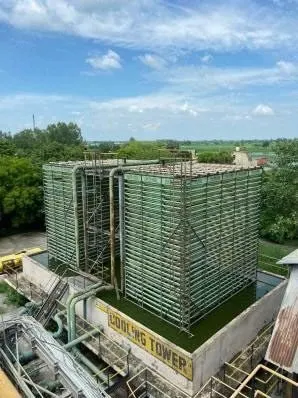

    23. Cooling tower brand: Matangi
    24. Chimney: 76 meters with supporting structure
  4. Generator Set 2 Components
    1. Engine brand: Wartsila, type: 18V32, rpm: 750
    2. Generator brand: Leroy Somer, kw: 6560, kva: 8200, volts: 6600, amps: 717.3, rpm: 750
    3. Lubricating oil separator unit brand: Alfa Laval, type: MOPX-207, control unit: DCU-30, capacity: 2000 LPH, kw: 7.5
    4. HT water preheating unit brand: Kirloskar, type: KDP 20/13 Q, rpm: 2900, flow: 42 m³/hr, pressure: 2 bar, capacity: 3.0 W/cm², fluid: treated water, heater: 30 kW
    5. Fuel supply unit brand: IMO, model: ACE 038K2, lpm: 70, rpm: 2900, cst: 100/250, pressure: 3.7 bar, kw: 3.7, type: screw
    6. Lubricating oil filter brand: Finn-Filter-Oy, type: FFP, filter design pressure: 11.0 bar, filter working pressure: 8.0 bar, working temperature: 100 °C, filtration size: 30, filtration surface area: 150, filter flow media: HSD
    7. Lubricating oil / HT / LT plate heat exchanger brand: Alfa Laval, model: AK 20 FM, type: plate heat exchanger, pressure: 10 bar, working temperature: 110 °C
    8. Pre-lube pump brand: IMO, type: screw, model: ACG 60-2N3F, kw: 11, pump head: 33 m, pressure: 2.0 kg/cm², rpm: 2900
    9. Air receiver tank model: Geecy Engineering Corporation, design pressure: 33.6 kg/cm², test pressure: 50 bar
    10. Turbocharger A bank brand: ABB, type: VTR 354-11
    11. Turbocharger B bank brand: ABB, type: VTR 354-11
    12. Governor brand: Woodward, type: PGG-58, engine speed: 750 rpm
    13. Fuel feeder unit brand: Allweiler Tushaco Ind. Ltd., type: SNF-40/46, lpm: 35, kw: 3.7
    14. Air compressor unit 1 brand: Ingersoll Rand, model: 15T2, kw: 22, pressure: 30 bar
    15. HFO day tank capacity: 40 kL, heater: 5/GP-013F2 insulated
    16. HFO settling tank capacity: 30 kL, heater: 1/-GP-012F2 insulated
    17. HFO unloading unit 1 brand: Initial Corporation-Gujarat, discharge: 415 LPM, size: 3 x 3, fitting frame: DSP, type: ICR X 300 S
    18. HFO separator brand: Alfa Laval, type: MOPX-308 SGT-24, control unit: EPC-400, capacity: 3500 LPH, revolution: 118-125, motor: 30, rpm: 1500
    19. FO transfer unit: 2 pumps without motor, capacity: 2.2 kW
    20. Chimney: 2 pumps without motor
  5. Scope of Supply

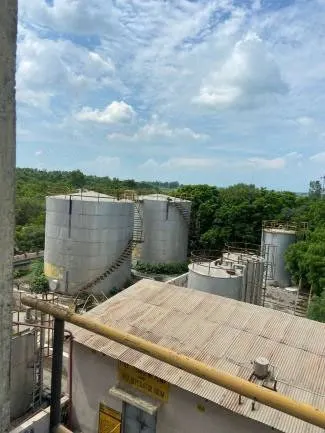

    1. HFO tanks: 4 nos.
    2. HFO sludge tanks: 4 nos.

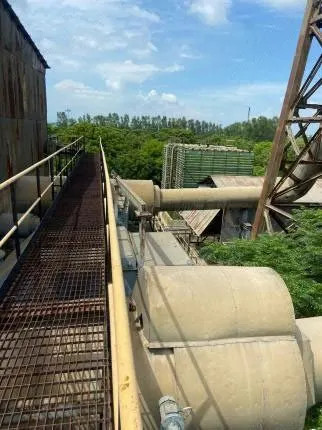

    3. Cooling tower

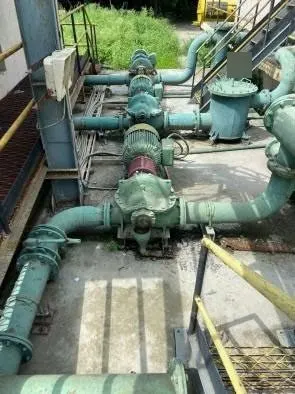

    4. Cooling water pump sets: 3 nos.
    5. HFO separators: 2 nos.
    6. HFO unloading pump set: 1 no.
    7. HFO transfer pumps: 2 nos.
    8. HFO feed pumps: 2 nos.
    9. Booster unit: 2 nos.
    10. HFO filter unit: 2 nos.
    11. Pre-lube pump: 2 nos.
    12. Heat exchangers: 4 nos.
    13. Water preheater unit: 2 nos.
