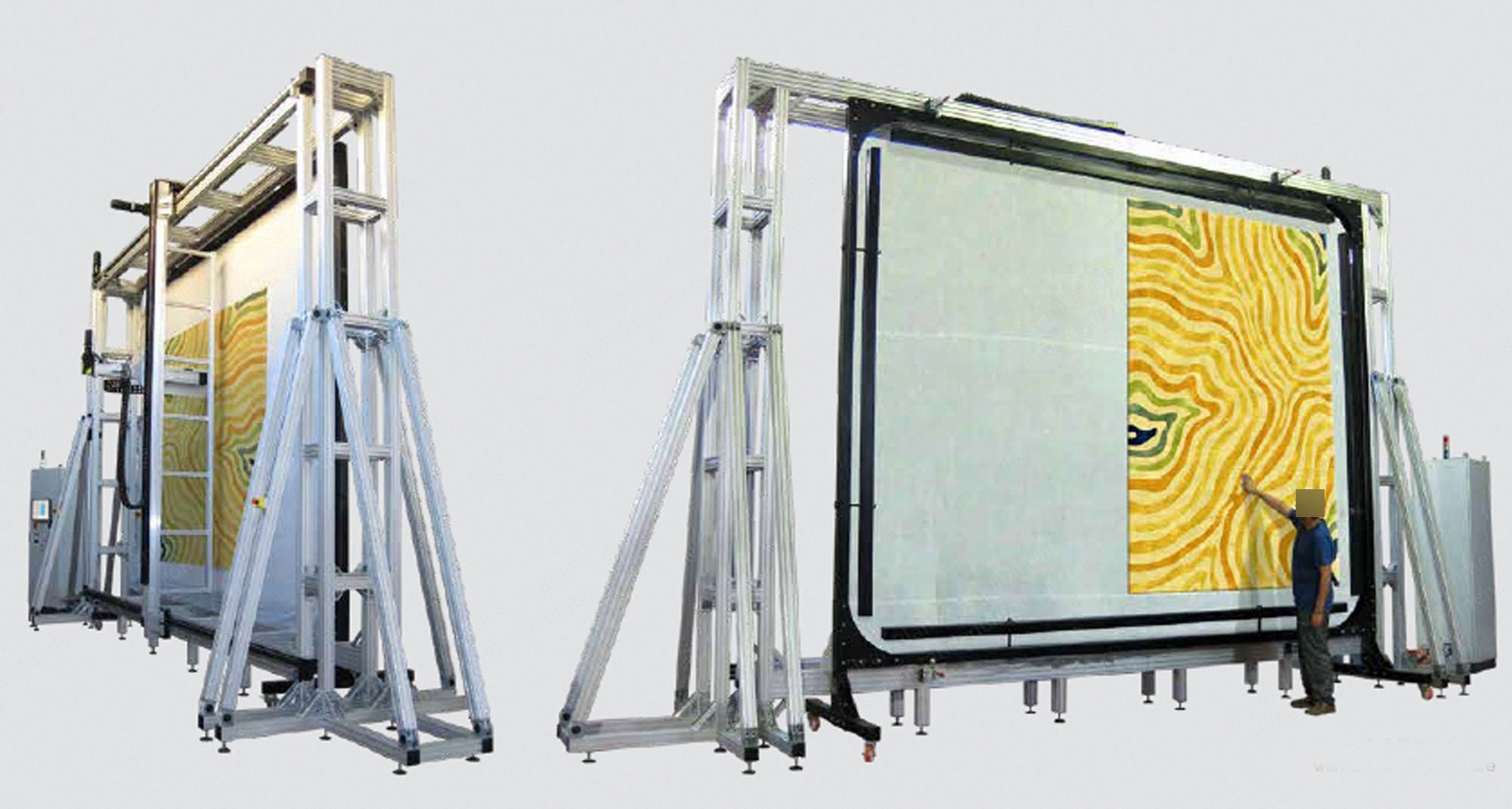

Advanced robotic tufting machine for production of fashionable tufted carpets and area rugs
Ideal for single orders, ongoing mass production, or sampling
General Specifications
Interchangeable tufting-gun mechanism
Cut pile height: 12 to 75 mm (u-tuft or j-tuft)
Loop pile height: 4 to 55 mm
Production throughput: 1 to 6 sqm/hour
Variable pile height tufting effects
Nonstop cut-loop changeover
Works with wide range of yarns: wool, viscose, bamboo, polyester, fancy yarns, nylon, linen, polypropylene, cotton, or their blends
Rigid mechanical structure for high speed and accurate production
Laser pointer synchronized with controller for precise positioning of the tufting head
Camera on tufting head for easy repairing by machine
Wireless remote control for operation from different spots
Seamlessly integrated with Edesigner carpet design software
Minimum return on investment within one year (subject to customer’s production requirements and design complexities)

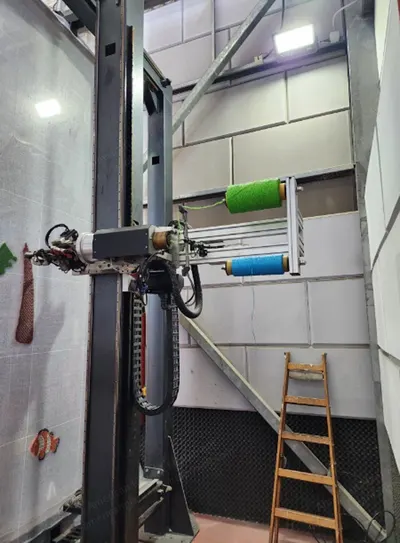

Interchangeable Tufting-Gun Mechanism
Etuf robots are equipped with an innovative interchangeable tufting-gun mechanism
Efab’s latest development – the unique interchangeable tufting head – combines the advantages of both mechanisms
Mechanical tufting gun can tuft on a variety of backing fabrics and produce very detailed or over-tufted designs with high densities in short pile height
Pneumatic gun can compensate for supposed disadvantages by switching between cut and loop pile automatically (nonstop changeover), tufting with different pile heights (3d effects), or j-tuft
Easy docking system: operator can change the tufting gun to switch from mechanic to pneumatic easily by opening just 6 screws and without any electrical hassle
Mechanical Tufting Gun
Y-scissor cutting principle
Loop pile: 4 mm to 15 mm
U-tuft cut pile: 9 to 18 mm
Deliberate over-tufting
Pneumatic Tufting Gun
Guillotine principle for cutting a wide range of yarns
Loop pile: 5 mm to 70 mm
U-tuft cut pile: 12 to 60 mm
J-tuft cut pile: 15 to 100 mm
Various tufting needles: 4.8 mm, 6 mm, 8 mm, or 11 mm
Variable pile height accessories for 3d effects
Nonstop cut/loop changeover
Dimensions and Electrical
Frame dimensions: 4000 x 3000 mm
Voltage: 220 volts, 50 Hz
Condition and Included
Full working condition
Including 2 software licenses
Including artificial grass yarn
Shipping
Requires 1 40-foot container to ship
Freight to your door in included at no extra charge
Customer responsible for all import duties or Canadian forwarder fees or Canadian forwarder cost of processing paperwork and import, if any
