Joa, Baby Diaper Line, 1985, 5 Sizes, 175-200 PPM, 20 Inch Hammer Mill

Description

Overview
1. Joa baby diaper line
2. Year: 1985
3. Sizes 2, 3, 4, 5 and 6 featuring standing leg cuffs, elastic waistband, hook frontal tape, stretch velcro tapes, breathable nonwoven poly backsheet
4. Speed: 175-200 ppm
Pulp And Forming Section

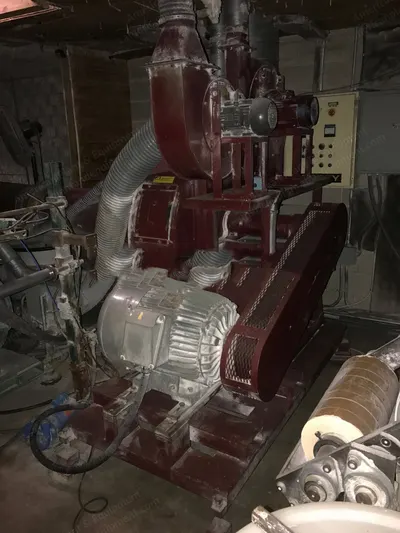

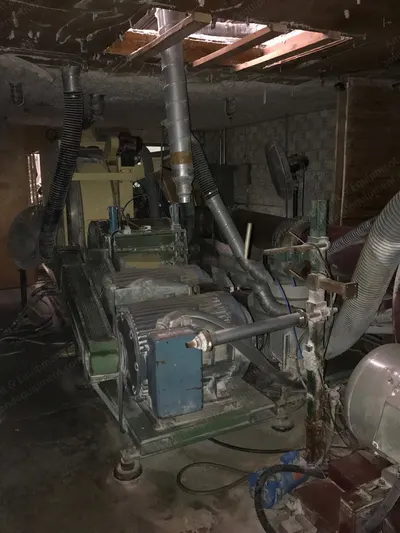

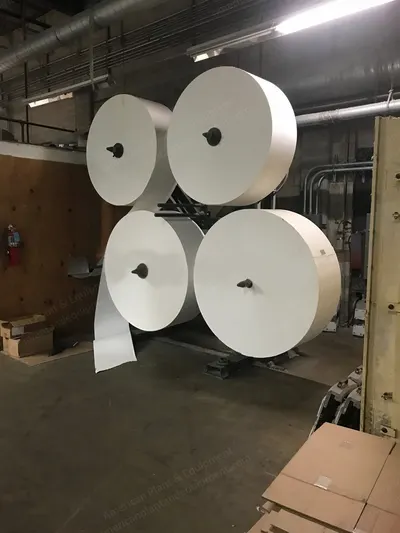

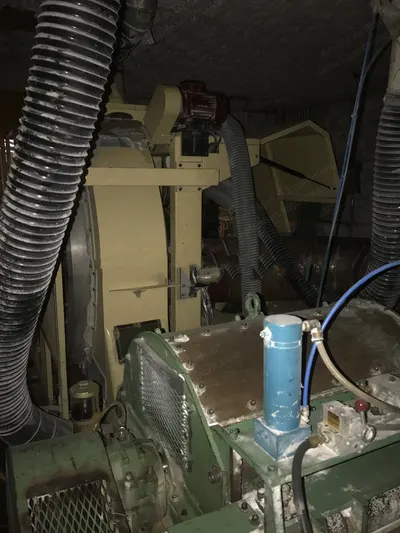

1. 4-roll pulp stand - 20 inch hammer mill running 2 rolls at a time, connected to
2. 1 Tekma drum former with rotating die pocket formers
3. 1 K-Tron sap dosing unit
Unwind And Adhesive Application

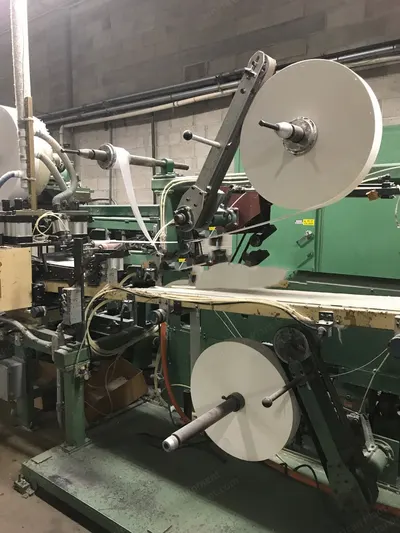

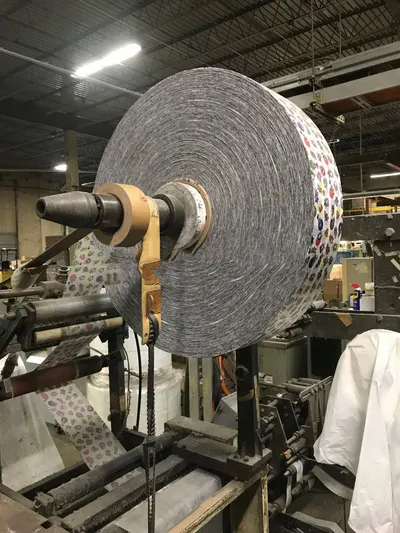

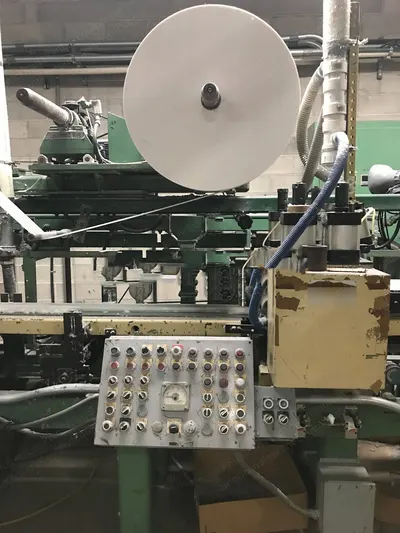

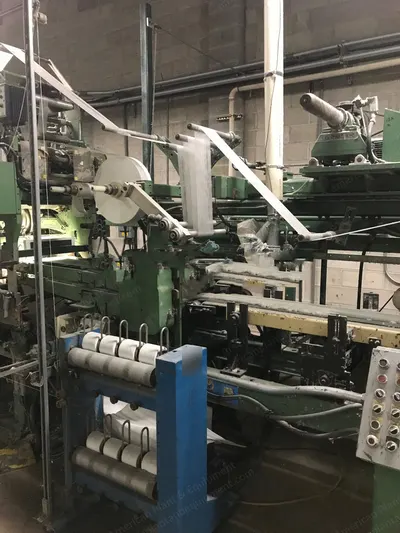

1. 1 ITW double un-winder for nonwoven and tissue with Nordson spray modules and Meltex glue tanks
2. 1 ITW Dynatec poly/nonwoven spray applicator with 9 spray modules
Elastic And Tape Application
1. 1 PCMC elastic waistband unit with Dynatec tank and 5 module spray heads

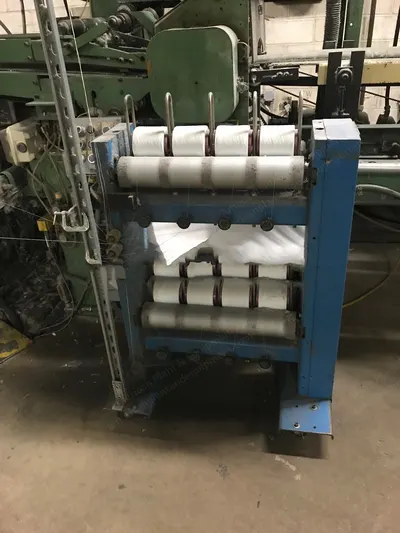

2. 2 x 4 strand elastic leg application unit
3. 1 x 3000 mm adhesive tape application unit
4. 1 x Fiber Converting frontal hook/loop application unit
Cutting, Compression And Folding
1. 1 x Joa cut-off knife with water jet cutting
2. 1 x compression and calendering unit
3. 1 x end-product folding
Packaging And Reclaim

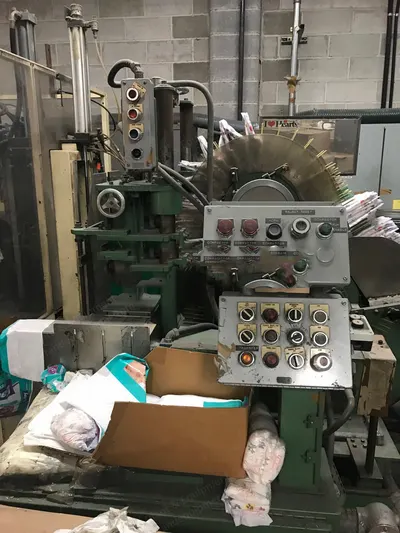

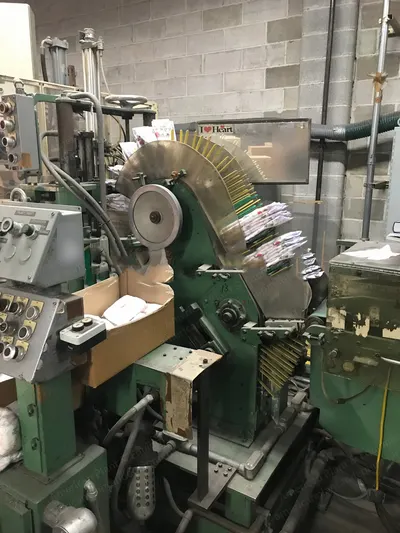

1. 1 x stacker with compactor
2. 1 x semi-automatic bagging unit

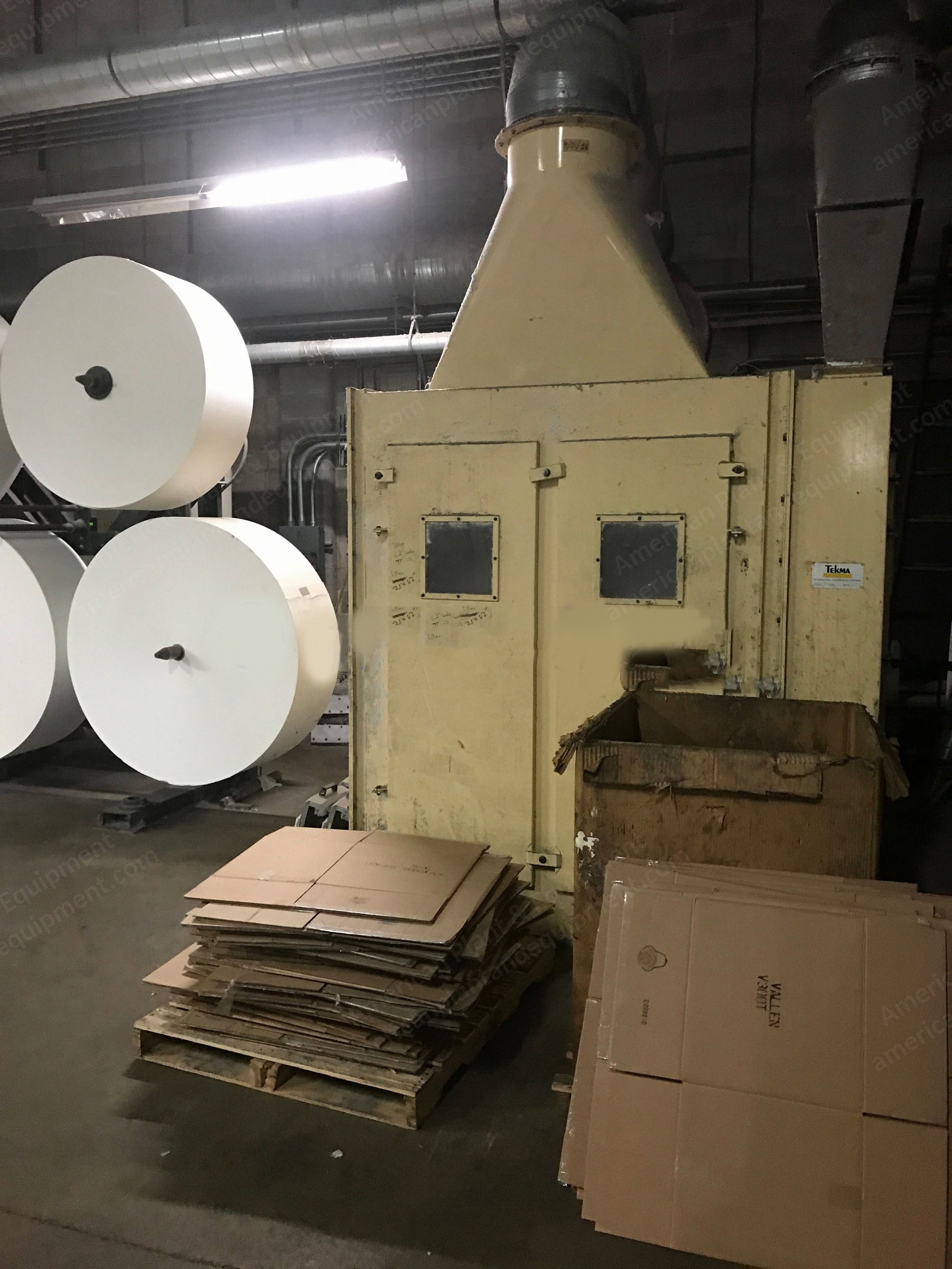

3. 1 x Tekma reclaim/recycling drum filter
Specifications
1. Voltage: 400V 3ph 60Hz

Capacity	175-200 PPM
Features	standing leg cuffs, elastic waistband, hook frontal tape, stretch velcro tapes, breathable nonwoven poly backsheet
Included	['4-roll pulp stand - 20 inch hammer mill', '1 Tekma drum former with rotating die pocket formers', '1 K-Tron SAP dosing unit', '1 ITW double un-winder with Nordson spray modules and Meltex glue tanks', '1 ITW Dynatec poly/nonwoven spray applicator with 9 spray modules', '1 PCMC elastic waistband unit with Dynatec tank and 5 module spray heads', '2 x 4 strand elastic leg application unit', '1 x 3000mm adhesive tape application unit', '1 x Fiber converting frontal hook/loop application unit', '1 x Joa cut-off knife with water jet cutting', '1 x Compression and calendering unit', '1 x End-product folding', '1 x Stacker with compactor', '1 x Semi-automatic bagging unit', '1 x Tekma reclaim/recycling drum filter']

Voltage	400 V
