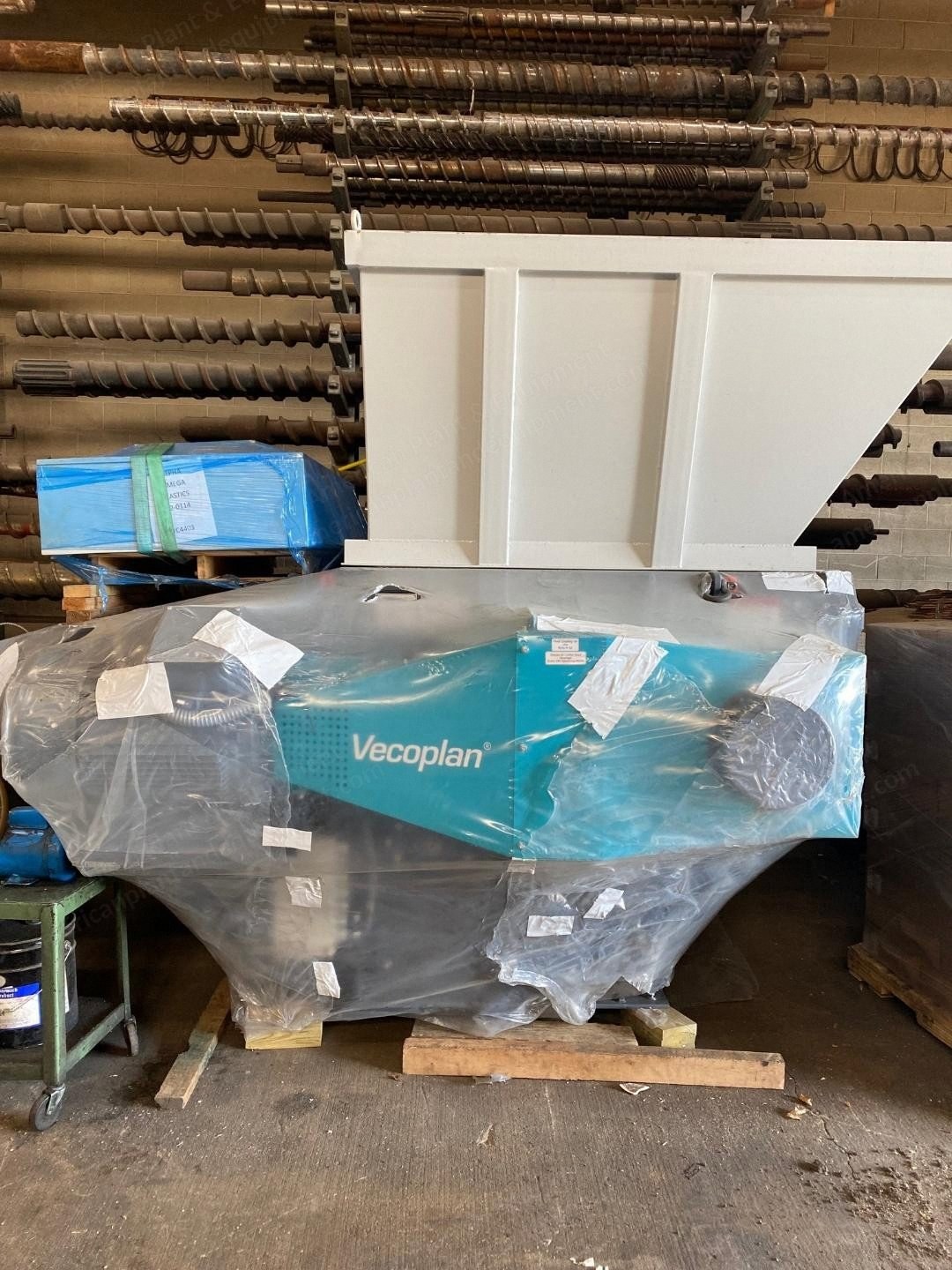

Description Overview Vecoplan shredder model Vaz 1300-M, new condition In plant, company decided not to use it, available immediately, still in wrapper Infeed and Cutting Area Bolt-on approximate 80 in x 80 in flared infeed hopper Machine cutting area 58 in long x 58 in wide with abrasion resistant top plate Rotor and Bearings Rotor is 15 in diameter x 52 in long with full load startup capacity and self-cleaning rotor side pockets to help prevent a possible fire hazard Rotor bearings are double spherical, tapered roller bearings in solid steel housings Sidewall is high manganese contact for abrasion resistance Hydraulic Ram and Controls Pls controlled 2-speed and dual pressure hydraulic ram, external ram guides for bridge-free interior and simplified maintenance Ram has automatic shut off when the machine runs empty, automatic reversal in an over-amp situation, 5 hp with vfd speed control External guide rails and spring loaded wipers for even wear Cutting Tools 60 total rotor d2 cutting tools fully supported and 4-way indexable 5 sections of reversible and individually adjustable stationary cutters Drive System Drive system is a driveshaft power transfer to a fluid clutch assembly and a solid case gear reducer 100 hp 460/3/60 drive motor Cutting Chamber and Screen Machine is fitted with Vecoplan's exclusive rotating rotor end plates and double walled cutting chamber This feature prevents material from rubbing against the inner sidewall wear Screen is a reversible 2-piece design with 2.5 in holes Controls System controls are Allen Bradley plc controls package in a Nema 4 enclosure with touch screen hmi control screen Excluded Items Option: machine riser base and 10 in airveyor discharge tubes and evacuation system not included SpecificationsRotor length: 52 inchesRotor diameter: 15 inches
