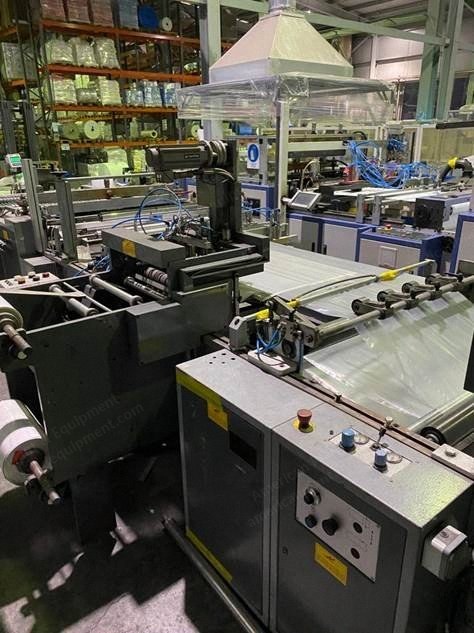

De Bernardi, DB 100 SH, Plastic Bag Making Machine, 2001

Description

Machine Overview
1. De Bernardi model DB 100 SH plastic-carrybag and t-shirt bag making machine
2. Year 2001
3. Year totally refurbished 2018
Sealing Configuration
1. Welding machine with 3 different sealing bars: side sealing bar, bottom sealing bar, and shopper sealing bar
Bag Types
1. Loop handle bag
2. Die cut handle bag
3. Bottom sealed bag
4. Shopper bag (t-shirt)
Accessories
1. Flex loop handle
2. Perforators
3. Photocell for printed films
4. Edge guide in the unwinder
5. Extra accessories for bottom gusset
Working Materials
1. HDPE, LDPE, biodegradable
Specifications
1. Welding bar width: 930 mm
2. Maximum speed: 150 bpm
3. Maximum sealing thickness: 100 microns
4. Maximum forward: 1100 mm
Condition and Availability
1. Can be inspected in production
2. Available immediately

Capacity	150 BPM
Included	['Flex loop handle', 'Perforators', 'Photocell for printed films', 'Edge guide in the unwinder', 'Extra accessories for bottom gusset']
Maximum Forward	1,100 mm
Maximum Sealing Thickness	100 microns
Sealing Bars	['Side sealing bar', 'Bottom sealing bar', 'Shopper sealing bar']
Welding Bar Width	930 mm
Working Materials	HDPE, LDPE, Biodegradable
