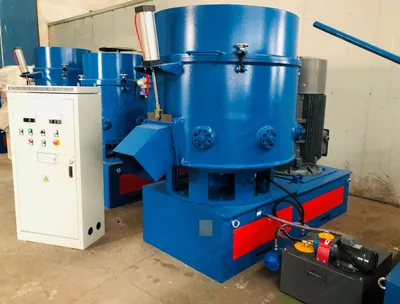

NovaStar, SG229, Plastic Agglomerator, 500 kg/hr, 132 kW, 800L (New)

NovaStar, SG229, Plastic Agglomerator, 500 kg/hr, 132 kW, 800L

Description

  1. Overview
    1. Machine type: X800
    2. Chamber volume: 800 liter
    3. Chamber material: 12 mm stainless steel
    4. Diameter of the main machine chamber (tank): inner diameter 1120 mm
    5. Suitable material: PP PE film fiber
    6. Capacity: 500 kg per hour
  2. Belt Feeding Conveyor
    1. Belt width: 600 mm
    2. Belt length: 4500 mm
    3. Motor power: 2.2 kW, 380 V, 50 Hz, 3P
  3. Plastic Agglomerator Machine
    1. Main motor power: 132 kW, 380 V, 50 Hz, 3P (can be 60 Hz)
    2. Capacity: 500 kg per hour

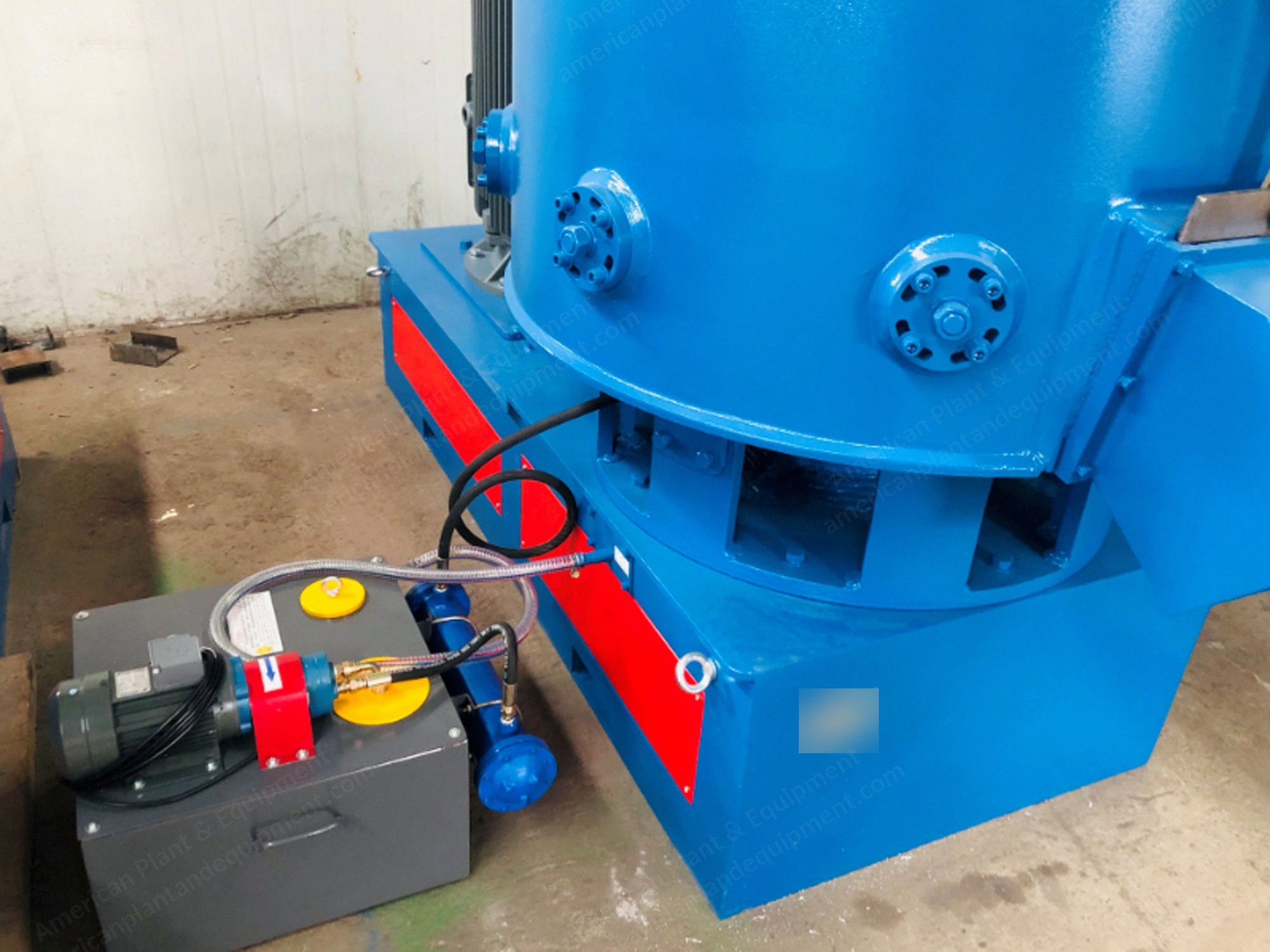

    3. Hydraulic oil cooling system
    4. Discharge method: pneumatic
    5. Rotary speed: 680 rpm
    6. Motor manufacture: WNF famous
    7. Electric control case: solid metal sheet
    8. Contactors and switches: Siemens
  4. Knife Specifications
    1. Extra set of complete knives included
    2. Fixed blades: 9 pcs, 45# steel
    3. Rotating knife: 4 pcs, T7
    4. Rotating knife: 4 pcs, can be adjustable
    5. Fixed blades: 9 pcs
    6. Knife life time: more than 1000 tons at the first time, then it can be re-sharpened to use again
    7. Blade and knife material: 9CrSi
  5. Included Spare Parts and Accessories
    1. Extra switches, quantity: 2
    2. Extra time relay, quantity: 2
    3. Tools for disassembling the knives
    4. Machine installation diagram and instruction manual
    5. Water spraying device can be installed with timer delay control so the operator can watch the material melting conditions and then push the switch to spray the water automatically; then it will auto delay open and close
  6. Operation Modes
    1. Manual: operator watches the materials and decides when to use water
    2. Semi-automatic: spray water is installed in the machine and the operator pushes the switch to spray; operator can adjust the timer parameters according to different material characteristics
    3. When to spray water: depends on operator’s experience to watch melting condition
    4. Agglomerator top design is open and does not have a door
