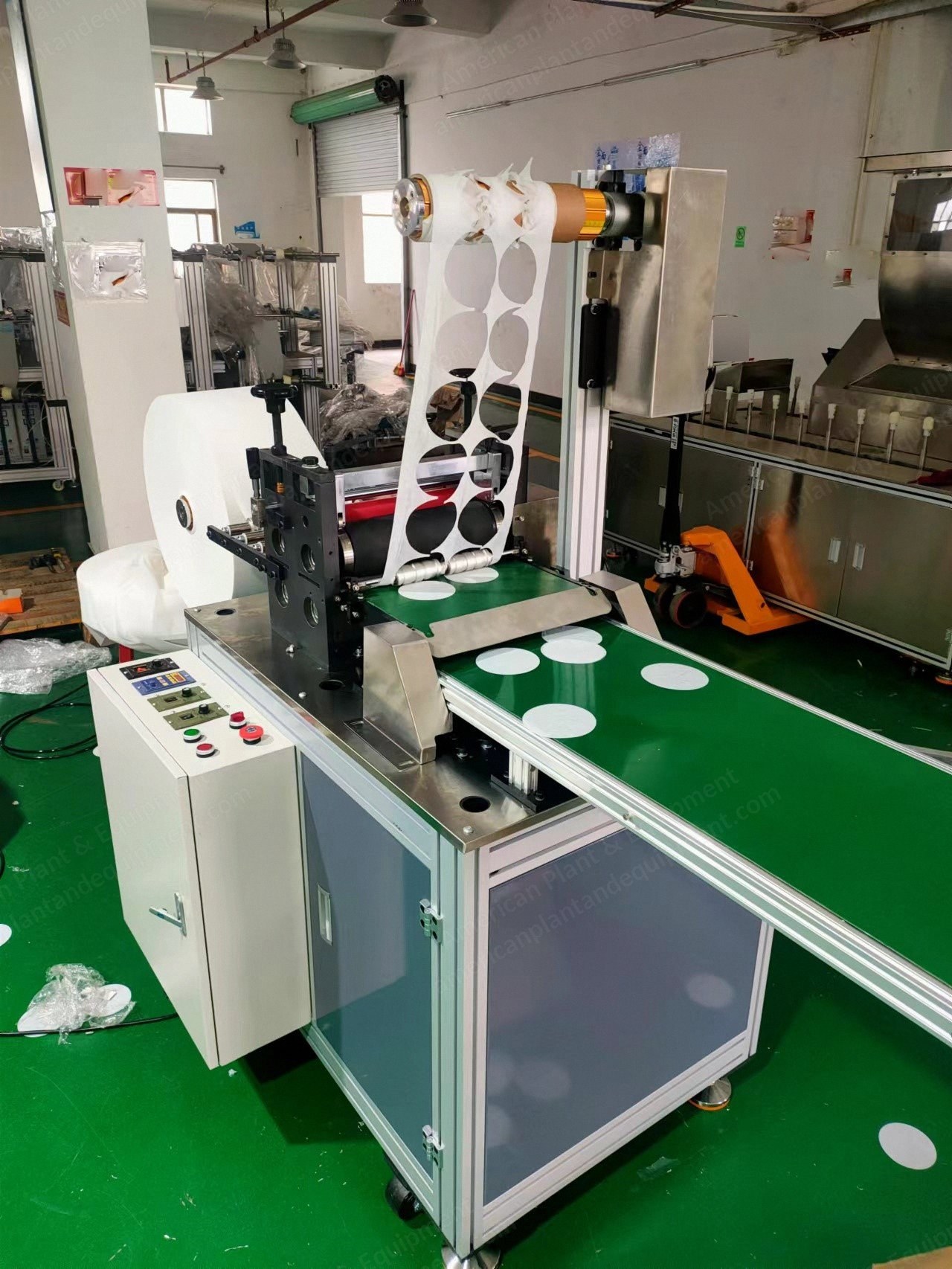

NovaStar, DT155, Automatic Die Cutting Machine, Roll Width 350mm, 440 Pieces per Minute, 220V (New)

NovaStar, DT155, Automatic Die Cutting Machine, Roll Width 350mm, 440 Pieces per Minute, 220V

Description

  1. Overview
    1. Automatic die cutting machine for roll material, plastic film, thin paper roll, etc.
    2. Realizes circular die-cutting using a circular hob rolling cutter and a circular hob pillow roller knife.
    3. Finished products are automatically separated and discharged via conveyor belt.
    4. Manual rewinding; edge material rewinding shaft is automatically rewound.
    5. Can die-cut round, oval and other diverse shapes.
    6. Good stability and consistency; fast production speed; stepless speed regulation; simple and convenient operation.

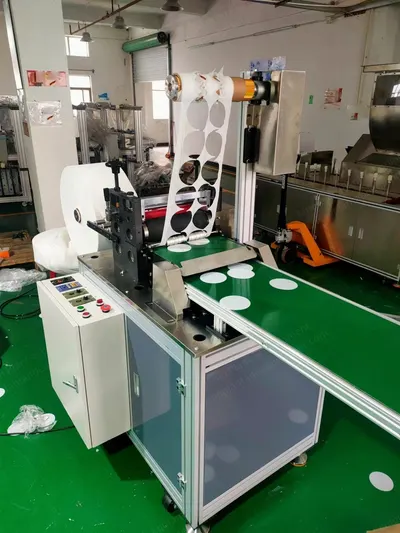

  2. Process Flow
    1. Manual loading to the roll material.
    2. Pulling material on the roller rubber shaft.
    3. Automatic die cutting.
    4. The finished product is automatically discharged to the conveyor belt and collected automatically.
    5. Automatic rewinding of waste edge material.
  3. Specifications
    1. Material input max width: 350 mm (other sizes can be custom-made).
    2. Die cutting mold: round roller.
    3. Rewinding: automatic release and collection.
    4. Waste rewinding: by motor.
    5. Max speed: 30 meters per minute (440 pieces per minute; 4 pieces cut at same time).
    6. Power: 220 volts; 3.0 kW; 1850 watts.
    7. Dimension: 1400 x 1100 x 1800 mm.
    8. Weight: 550 kg.

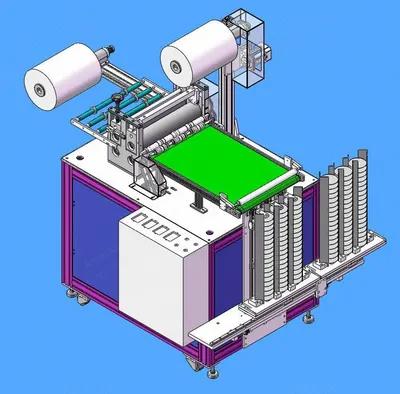

  4. Operation Details
    1. Feeding is by roll material.
    2. Automatic rolling in for cutting.
    3. After cutting, the conveyor takes the pads to the next station where cylinders press the pads down into the holder.
    4. The holder has motors to descend slowly to load more pads.
    5. On top, a cylinder pushes the pad down to internal of the holder, and the holder slows the motor down to slowly descend when more pads are being discharged.
