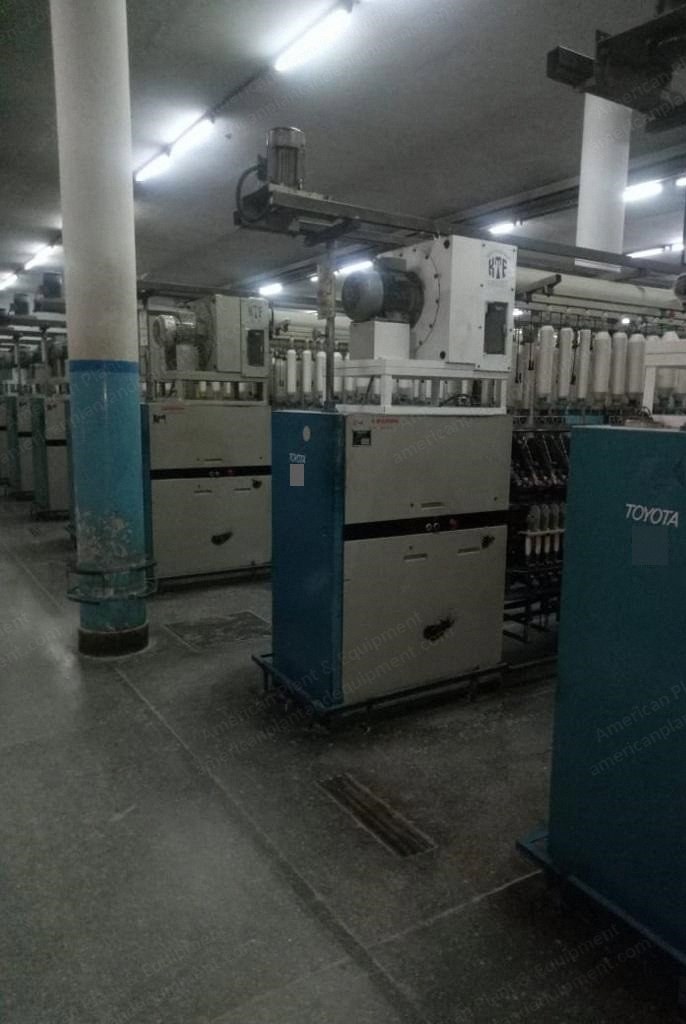

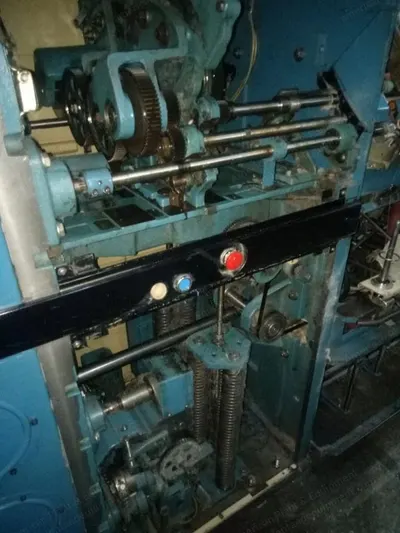

Toyota, RY-5, 1989, 480 Spindles, 75mm Spindle Gauge, SKF-PK225 Weighing Arm

Toyota, RY-5, 1989, 480 Spindles, 75mm Spindle Gauge, SKF-PK225 Weighing Arm

Description

  1. Item 001: Toyota Ring Frame Ry-5
    1. Year: 1989
    2. Total spindles: 480
    3. Compact type: Suessen with CDS + Eli fan system

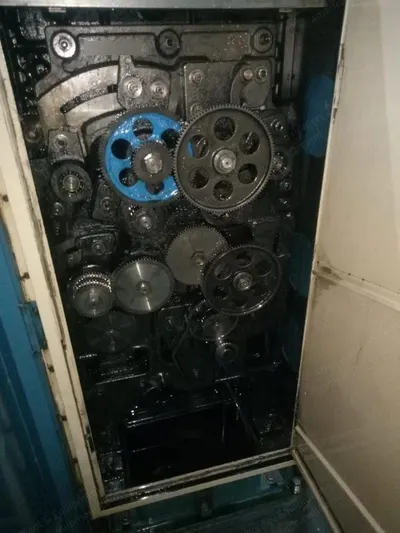

    4. Machine type: Gear box with oil bath

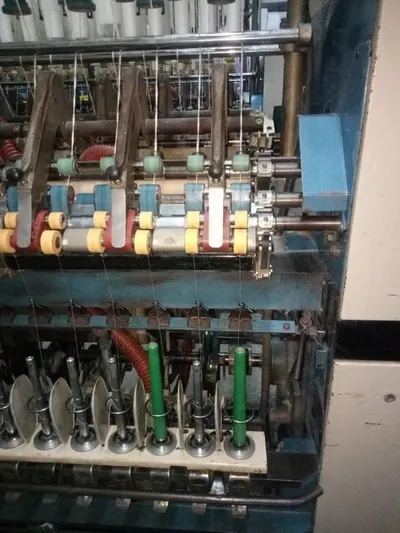

    5. Weighing arm: SKF-PK225
    6. Count range: 20/1 ~ 80/1
    7. Bobbin height: 210 mm
    8. Spindle lift: 7 inches
    9. Spindle gauge: 75 mm
    10. Spindle wharve diameter: 19 mm
    11. Spindle type: Novibra HP - S68 (adopter)
    12. Spindle drive system: 4-spindle tape
    13. Ring cup: Kanai 36 mm
  2. Item 002: Toyota Ring Frame Ry5 + Lycra
    1. Year: 1989
    2. Total spindles: 480
    3. Lycra attachment: Pinter Fani
    4. Machine type: Gearbox with oil bath
    5. Weighing arm: SKF-PK225
    6. Count range: 20/1 ~ 80/1
    7. Bobbin height: 210 mm
    8. Spindle lift: 7 inches
    9. Spindle gauge: 75 mm
    10. Spindle wharve diameter: 19 mm
    11. Spindle type: Novibra HP - S68 (adopter)
    12. Spindle drive system: 4-spindle tape
    13. Ring cup: Kanai 36 mm
