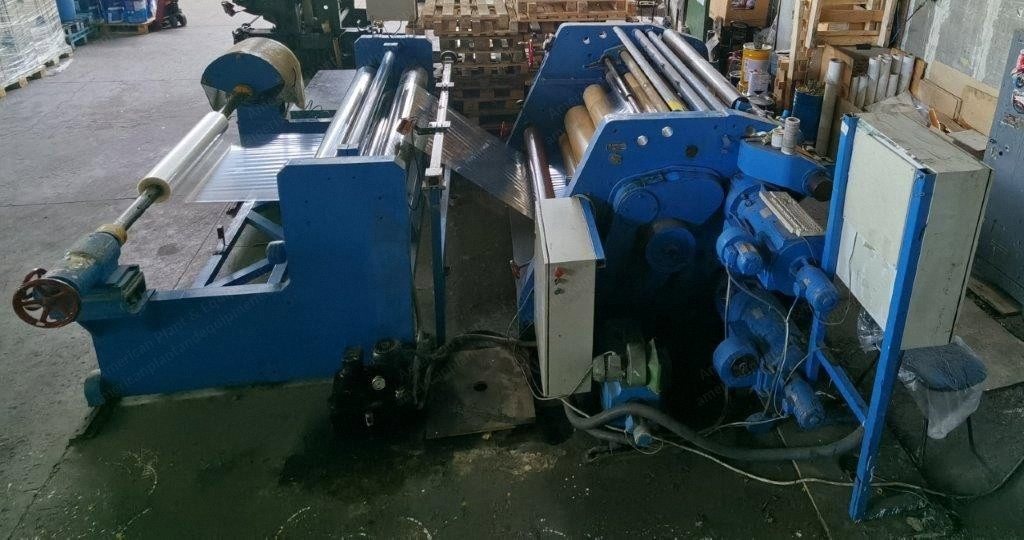

Kampf, 106, 1965, Working Width 1640mm, Speed 300 m/min

Kampf, 106, 1965, Working Width 1640mm, Speed 300 m/min

Description

  1. Overview
    1. Kampf 106 slitter
    2. Year 1965, restored 2007
    3. The machine was mechanically and electrically restored in 2007
  2. Specifications
    1. Working width: 1640 mm
    2. Materials: paper, laminates, PP, PET, LDPE, etc.
    3. Working speed: max. 300 meters/minute
    4. Cutting with direct and rotary knives
    5. Cut width: 50 to 1600 mm
  3. Unwinding
    1. Diameter: 80 to 1200 mm with pneumatic axes 76.2 or 152.4 mm
  4. Winding
    1. Diameter: 80 to 600 mm
  5. Axles
    1. 70 mm - pneumatic
    2. 76.2 mm - pneumatic
    3. 152.4 mm - pneumatic
    4. 76.2 mm - friction
  6. Accessories
    1. Lateral edge control
