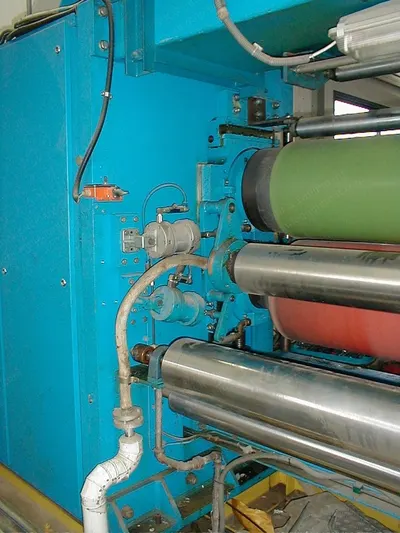

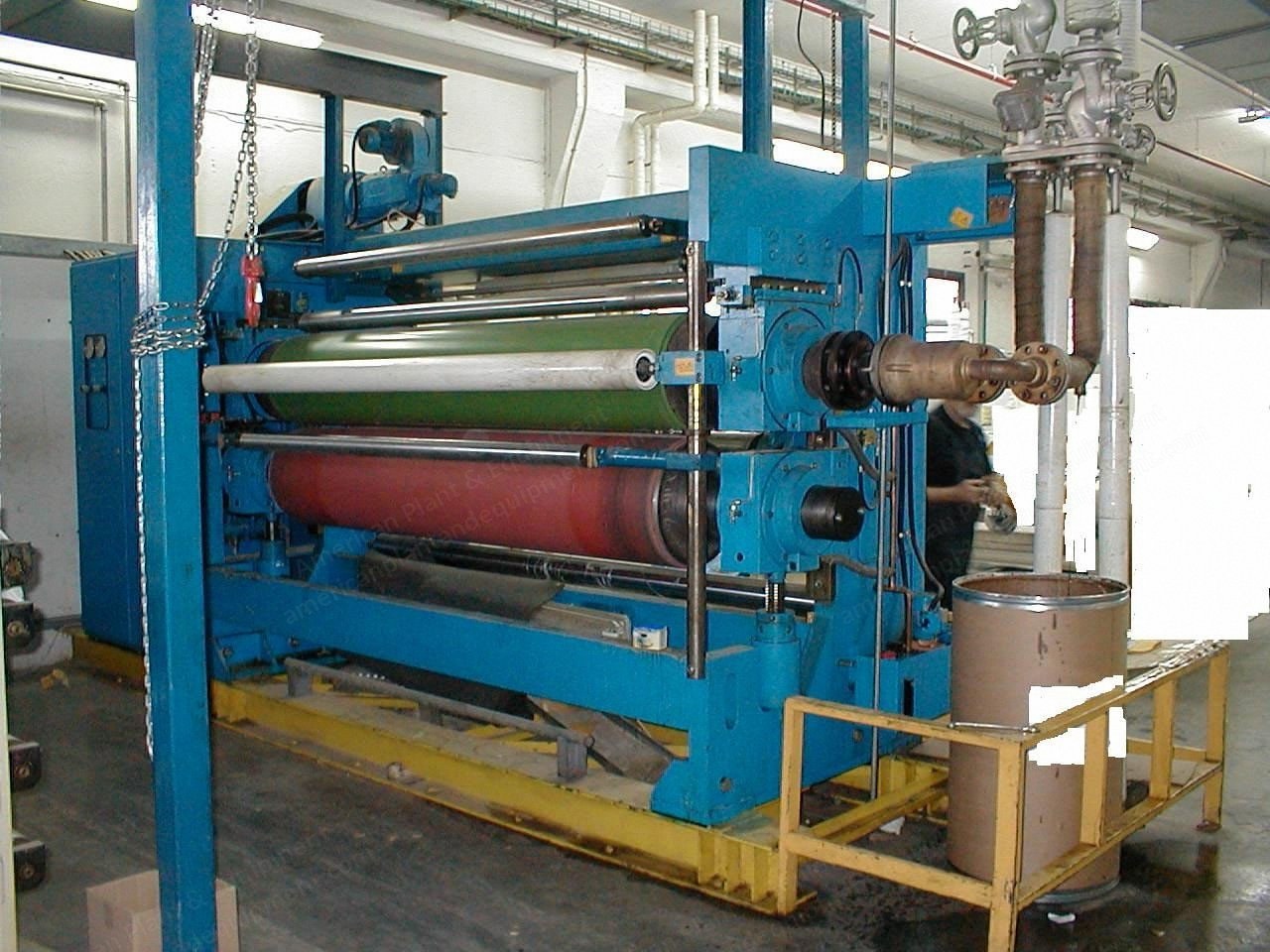

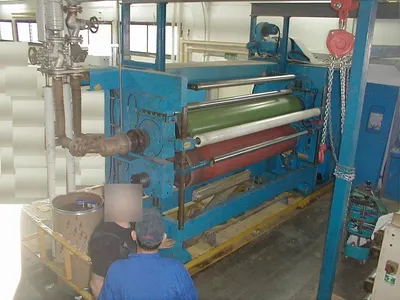

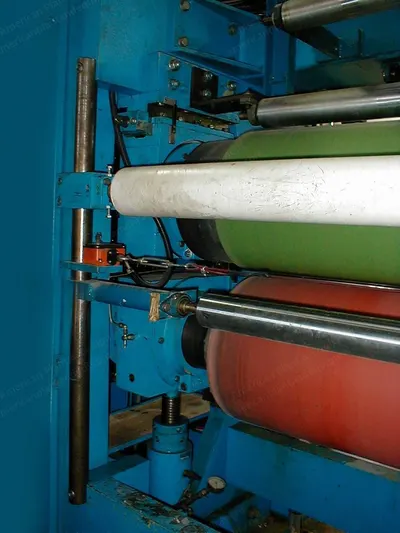

Ramisch Kleinewefers, RKK 210, 2 Roll Thermobond Calendar, 2200mm Width, 380V

Ramisch Kleinewefers, RKK 210, 2 Roll Thermobond Calendar, 2200mm Width, 380V

Description

  1. Overview
    1. Ramisch Kleinewefers 2 roll thermobond calendar
    2. Type RKK 210
    3. Application: laminating of nonwoven fabrics
    4. Material: PE
  2. Specifications
    1. Maximum roll width: 2200 mm
    2. Roll surface width: 2400 mm (94)
    3. Steel roll, top: 430 mm diameter - plus new spare roll
    4. Silicone, rubber coated: 470/440 mm diameter - plus new spare roll
    5. Cooling roll: 200 mm diameter
    6. Heating roll: 200 mm diameter
    7. Operating pressure: 15 to 35 N/mm
    8. Speed: 5 to 30 m/min
    9. Heating system: thermal oil heating

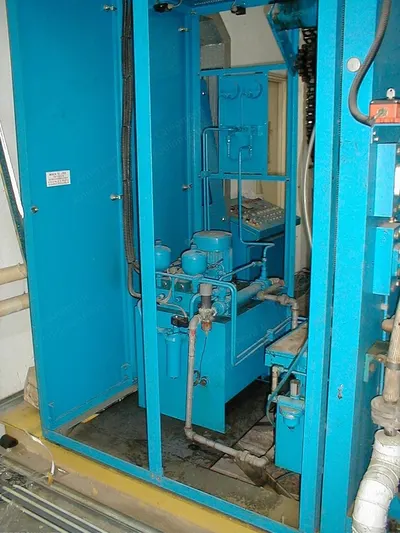

    10. Input power: steel roll about 5 kW, hydraulic about 3 kW, lubrication about 0.1 kW
    11. Voltage: 380 V, 50 Hz, three phases with loadable neutral conductor (no transformer included)
    12. Control and solenoid valve voltage: 220 V, 50 Hz, G 24 V
    13. Paint finish: RAL 5015 - sky blue
    14. Drive side: right viewed in direction of fabric passage
    15. Cooling water: maximum 15 to 180 °C at 2 to 3 bar
  3. Condition
    1. 380 volt, no transformer
  4. Included

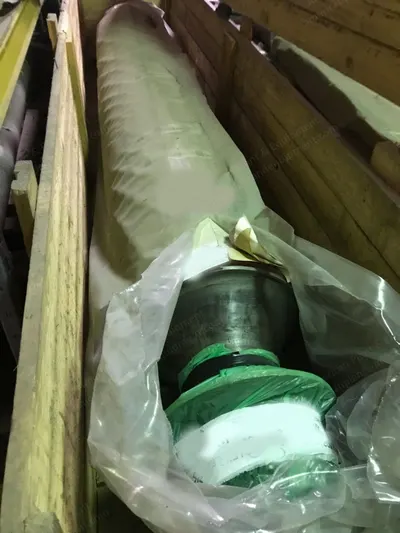

    1. New spare steel roll

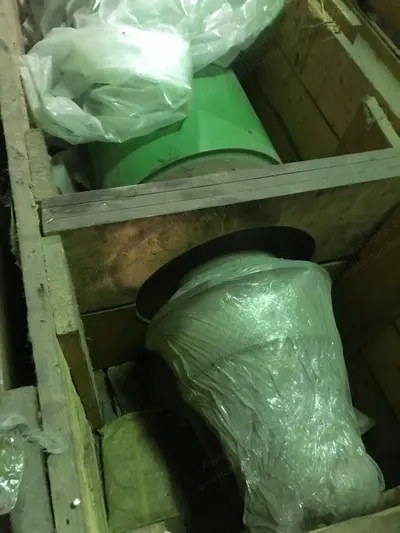

    2. New spare silicone rubber coated roll
    1. Not specified
