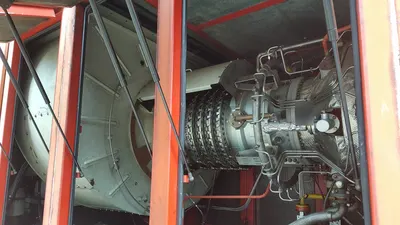

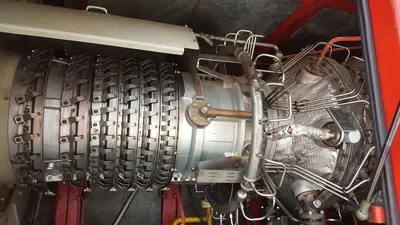

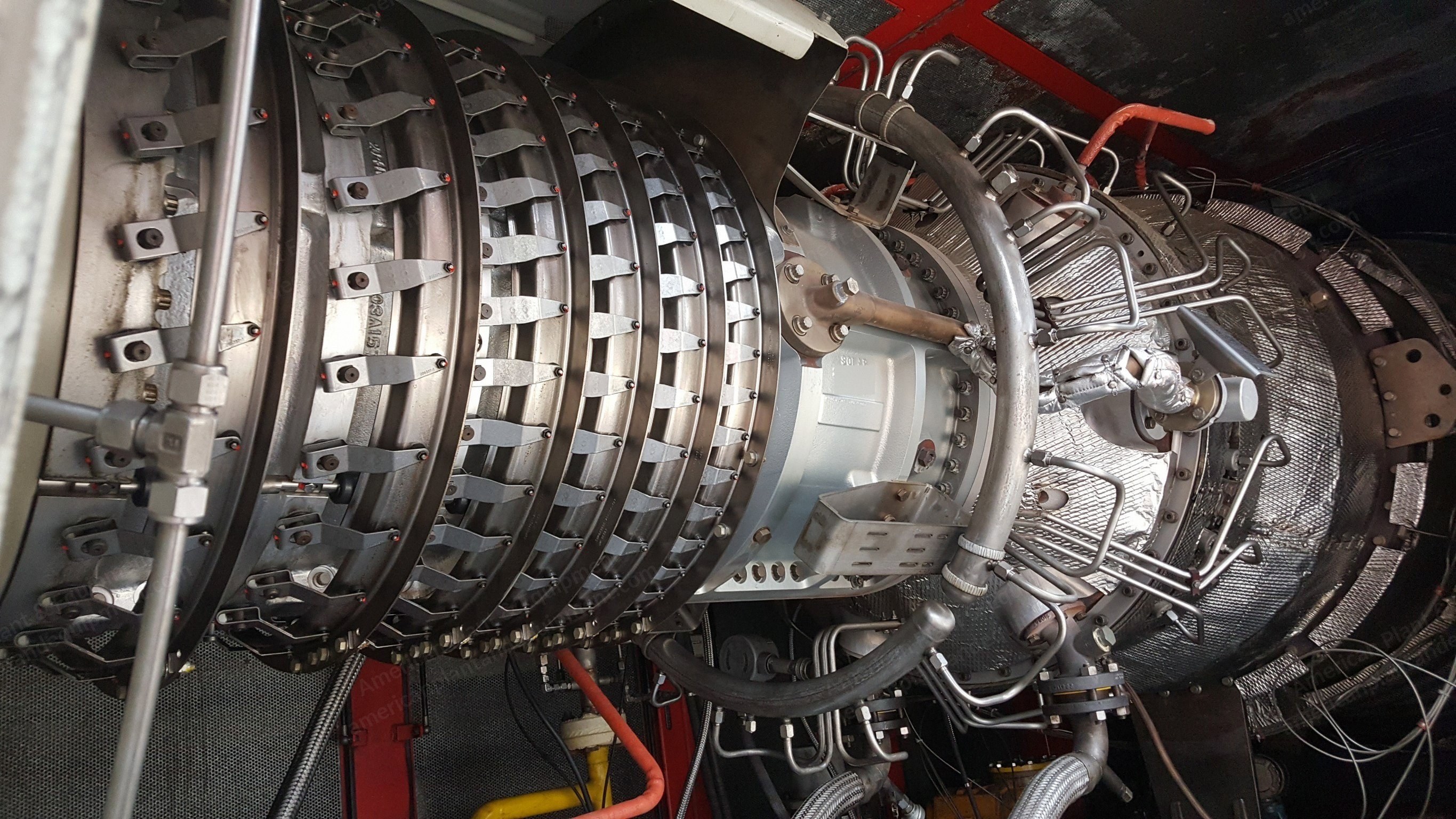

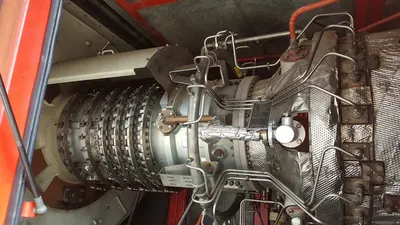

Solar, Titan 130, 2007, 15.0MW, 3.45KV, Gas, 50Hz

Solar, Titan 130, 2007, 15.0MW, 3.45KV, Gas, 50Hz Sold

Description

  1. Overview
    1. Solar T130 CED gas turbine
    2. 15.0 MW power output
    3. 3.45 kV voltage
    4. 16,813 operating hours
    5. Fuel: gas
    6. 50 Hz frequency
    7. Year: 2007
    8. Generator: Leroy Somer
  2. Gas Turbine Specification
    1. Brand: Solar (Turbomach Company)
    2. Model Titan: 130
    3. Operation: continuous
    4. Turbine design: open cycle, single shaft, cold-end drive
    5. Compressor: 14 stage, axial
    6. Combustion ratio: 16:01
    7. Combustion chamber: annular with 21 injector
    8. Turbine: 3 stage, axial-reaction
    9. Turbine speed: 11,197 rpm
    10. Nominal shaft power rating: 15,587 kW
    11. Heat input: 42,613 kJ/s
    12. Turbine air inlet flow: 48.9 ng/s
    13. Exhaust gas temperature: 496 °C
    14. Exhaust gas mass flow: 49.7 kg/s
    15. Thrust bearing: tilting pad type
    16. Fuel type: natural gas
    17. Year: 2007
    18. Gas turbine weight: approx. 91 ton
  3. Generator Specification
    1. Brand: Leroy Somer
    2. Type: LSA58 BMCL 14 4P (gas turbine drive)
    3. Synchronous: triphased
    4. Connections: star
    5. Rated output: 15,970 kVA
    6. Voltage: 3,450 V
    7. Frequency: 50 Hz
    8. Power factor: 0.9
    9. Polarity: 4P
    10. Speed: 1,500 rpm
    11. Machine protection: IP 54
    12. Terminal box protection: IP 55
    13. Insulation: H
    14. Temperature rise: F
    15. Generator air gap: 15 mm
    16. Exciter air gap: 1.5 mm
    17. Ambient temperature: 40 °C
    18. Cooling: IC8A1W7
    19. Weight of rotor: 10,239 kg
    20. Total weight: 30,480 kg
    21. Hours: 2,000 hours (new overhaul)
    22. Year: 2007
  4. Gas Compressor
    1. Brand: Enerproject SA
    2. Type: EGSI-S-70/400 W
    3. Year: 2007
    4. Suction flow: 710 m³/h
    5. Suction pressure: 7 bar g
    6. Discharge pressure: 25 bar g
    7. Rotating speed: 2,980 1/min
    8. Power: 400 kW
  5. Boiler Hrsg (Heat Recovery Steam Generator)
    1. 30 ton capacity
  6. Feed Water Transfer Pump
    1. Quantity: 1
  7. Specifications
    1. Weight: 91000
