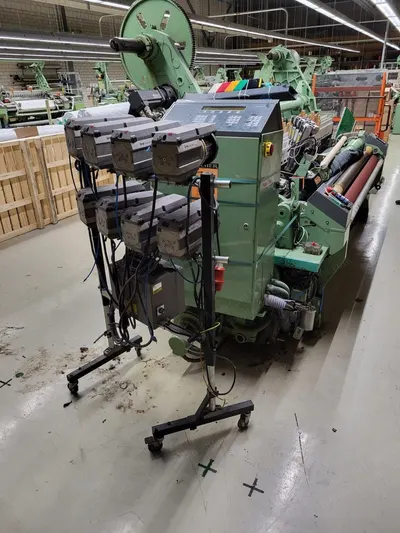

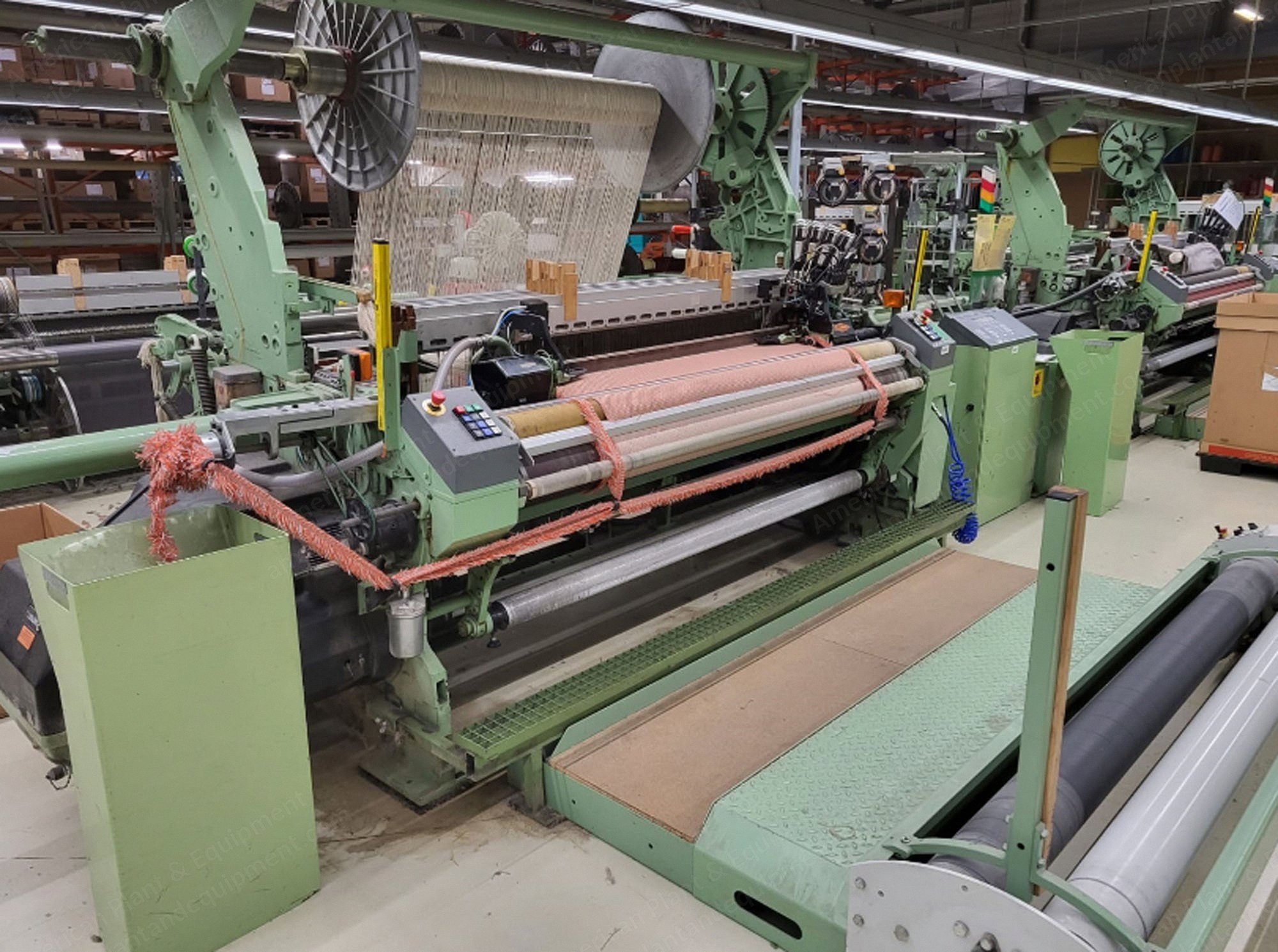

Dornier, HTV S8/8, 1997, Rapier Loom, 2200mm Width, 8 Colors, Staubli Dobby

Dornier, HTV S8/8, 1997, Rapier Loom, 2200mm Width, 8 Colors, Staubli Dobby Sold

Description

  1. Overview
    1. Dornier rapier loom
    2. Type HTV S8/8
    3. Year 1997 to 1998
    4. Nominal width 2200 mm
    5. At1 dialog panel
    6. Stäubli electron
    7. Dobby 2667/2670
    8. 1 x 20 and 1 x 24 shafts installed
    9. Electr. color selector ECS - 8 colors
    10. ECT electr. cloth take up, EWL electr. warp let-off
    11. With top beam device, selvedge leno, on-loom take-up
  2. Additional Accessories Per Loom
    1. 8 weft feeders, type Iro Galaxy RS-H
    2. 10 heald frames
    3. 1 warp beam (800 mm flanges)
    4. 1 cloth roller
    5. Heddles and droppers
    6. Optional with Grob batching motion
