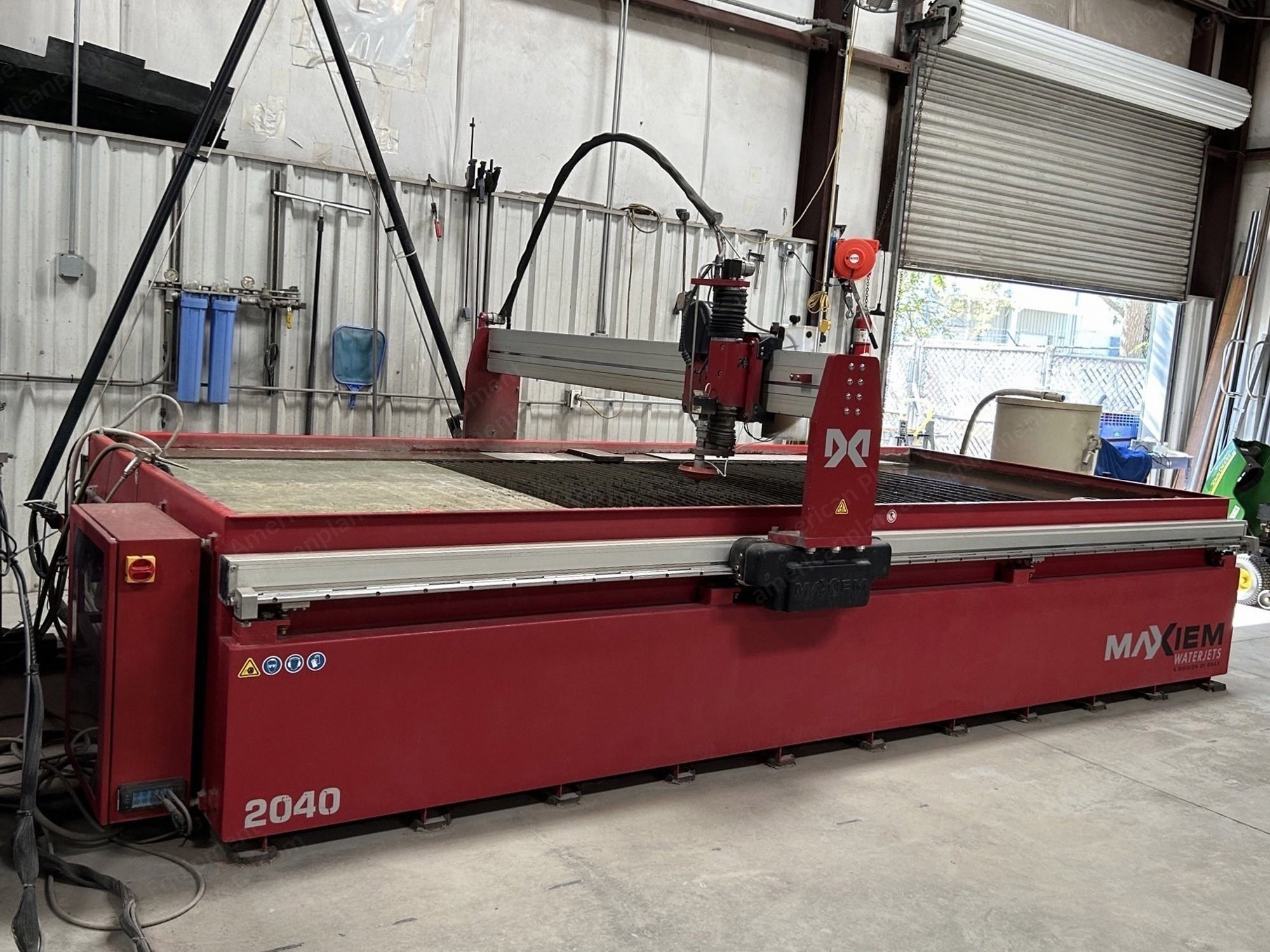

Omax, Maxiem 2040, 2014, 13'10" x 6'7" Cutting Travel, 30 HP, 50kpsi Pump

Omax, Maxiem 2040, 2014, 13'10" x 6'7" Cutting Travel, 30 HP, 50kpsi Pump

Description

  1. Overview
    1. Brand: Omax
    2. Year: 2014
    3. Model: Maxiem 2040
    4. Type: Waterjet cutters
  2. Specifications
    1. X-Y cutting travel: 13’10” x 6’7”
    2. Z-axis travel: 12”
    3. Table size: 16’1” x 7’0”
    4. Material support slats: (40) 4" x 14 ga
    5. Max. supported material load: 300 lbs / sq ft
    6. Maximum travers speed: 500 in/min
    7. Pump hp: 30 hp
    8. Pump operating pressure: 50 kpsi
    9. Electrical requirements: 480 vac ±10%, 3-phase, 50 to 60 hz footprint
    10. Electrical requirements (no controller): 18’0” x 12’2”
    11. Weight (tank empty): 5,500 lbs
    12. Height (with scissor plumbing): 8’10”
    13. Operating weight (with water in tank): 26,400 lbs
    14. Weight: 2495
  3. Condition
    1. Under 1,248 hours total operational time
  4. Included Equipment

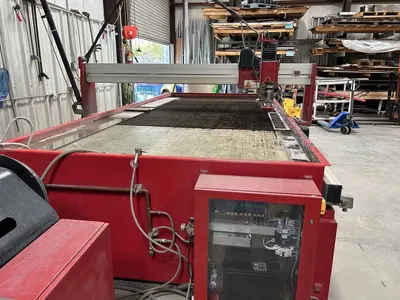

    1. Omax pc based controller
    2. A-jet 3-axis cutting head

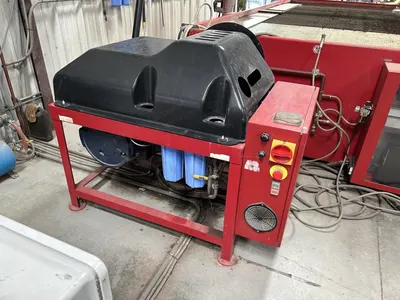

    3. Maxiem pump 30 hp 50 kpsi direct drive pump
    4. Water level control

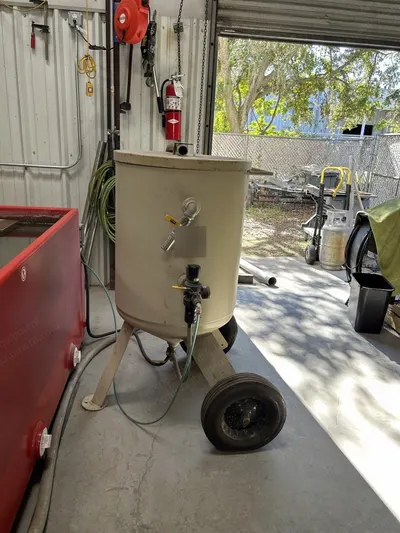

    5. 600 lb bulk abrasive hopper
