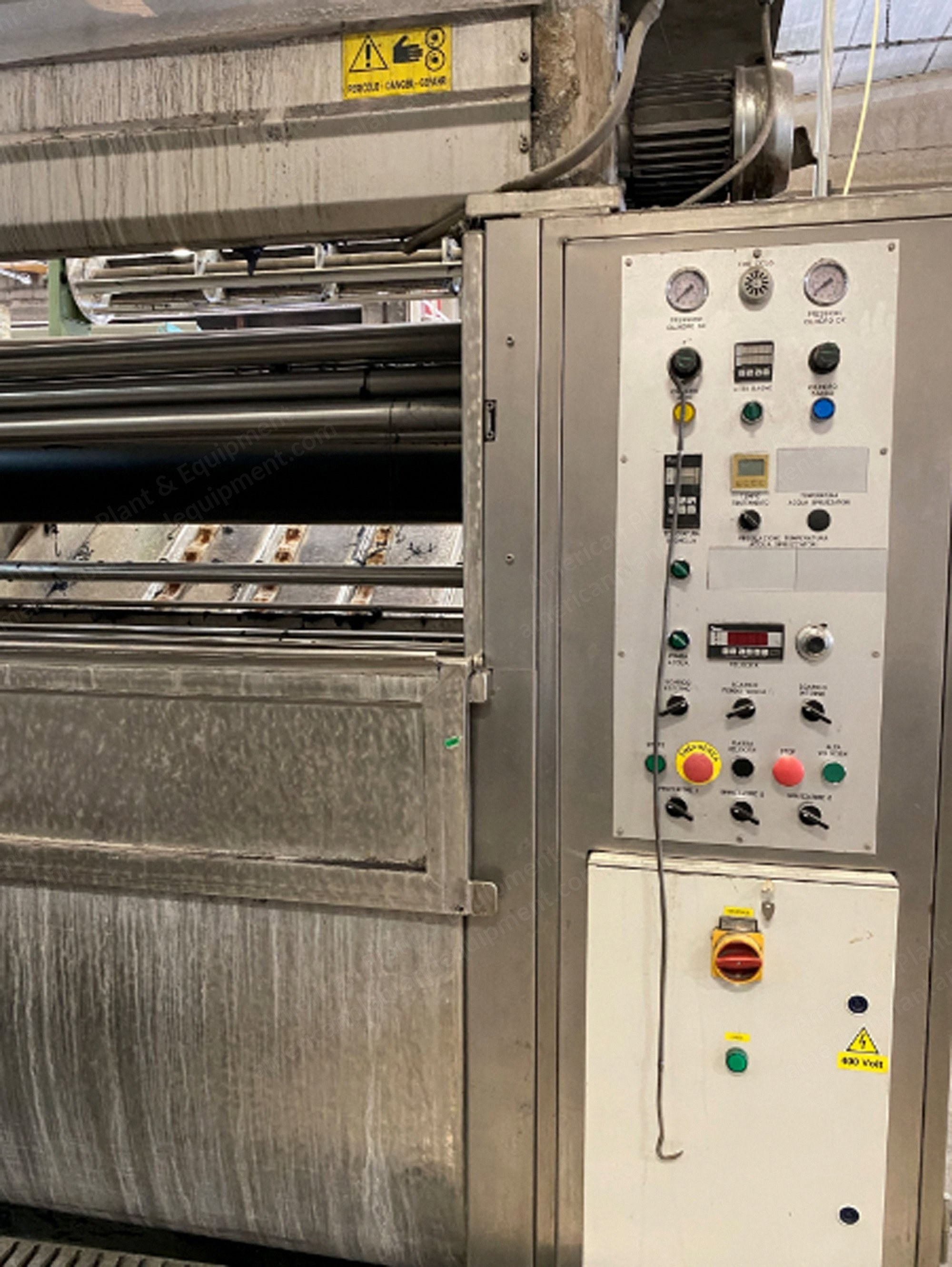

Zonco, LL4inox, Open Width Washing Machine, 1800mm Width, 180kg Capacity

Zonco, LL4inox, Open Width Washing Machine, 1800mm Width, 180kg Capacity

Description

  1. Overview
    1. Washing machine for open-cloths «Rapid» LL-4 Inox
    2. High quality results and cost reduction are secured with our washing machine for open-cloths «L.L.4 Inox», equipped with quick rinsing device and large capacity tub (up to 180 kg each loading)
    3. Suitable for the treatment of wool and mixed cloths of all types and weights, up to 1800 mm width
  2. Specifications
    1. Tub and all inner parts are made of Aisi 304 stainless steel; it is a self-bearing tub, isolated from the structure and partly demountable, in order to reduce the volume of the machine in transport
    2. Squeezing rollers, 1950 mm width, covered with special rubber
    3. Automatic centring device for the cloth piece
    4. Folding device
    5. Complete pneumatic equipment, to regulate the pressure on rollers with controls for bottom drain, for the basin inner valves and for the outer valve
    6. Electric equipment with 24 volt distant controls, and Enpi electric blocking
    7. Control of cylinder with motion-reducer and speed-variator from 60 to 160 revolutions
    8. All the transmissions between the various revolving parts are closed in guards obtained in the structure of the machine or in the main locker
    9. Quick rinsing device with Inox steel spraying tubes
    10. «Leonard» water-steam mixer
    11. Telethermometer for bath control, with maximum indicator
    12. Intermediate accompanying roller, for washing patterns, partial loads and heavy cloths
    13. Centering device: Bianco
  3. Dimensions
    1. Width (frontal): 3230 mm
    2. Depth (sides): 3000 mm
    3. Height: 2450 mm
  4. Operating Modes
    1. A - Running for partial loads and patterns
    2. B - Running for normal loads
    3. C - Loading
    4. D - Unloading
  5. Other Machines Manufactured
    1. Combined milling-washing machine
    2. High speed rope scouring machine
    3. Milling machine
    4. Lags and pins for rag tearing machines
  6. Disclaimer
    1. The data in this pamphlet are given as an indication, and our company is entitled to modify the described machine at any time, owing to technical or commercial reasons
