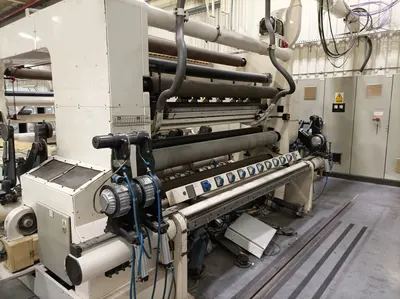

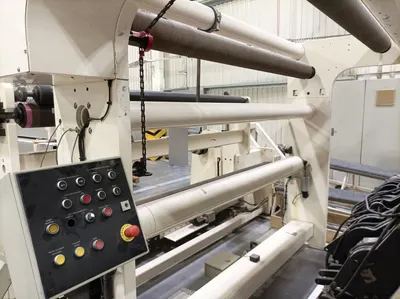

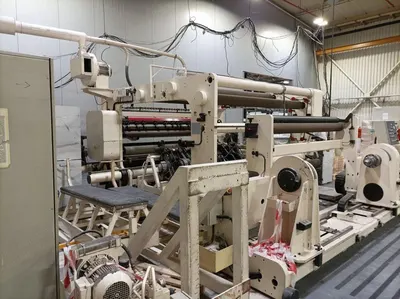

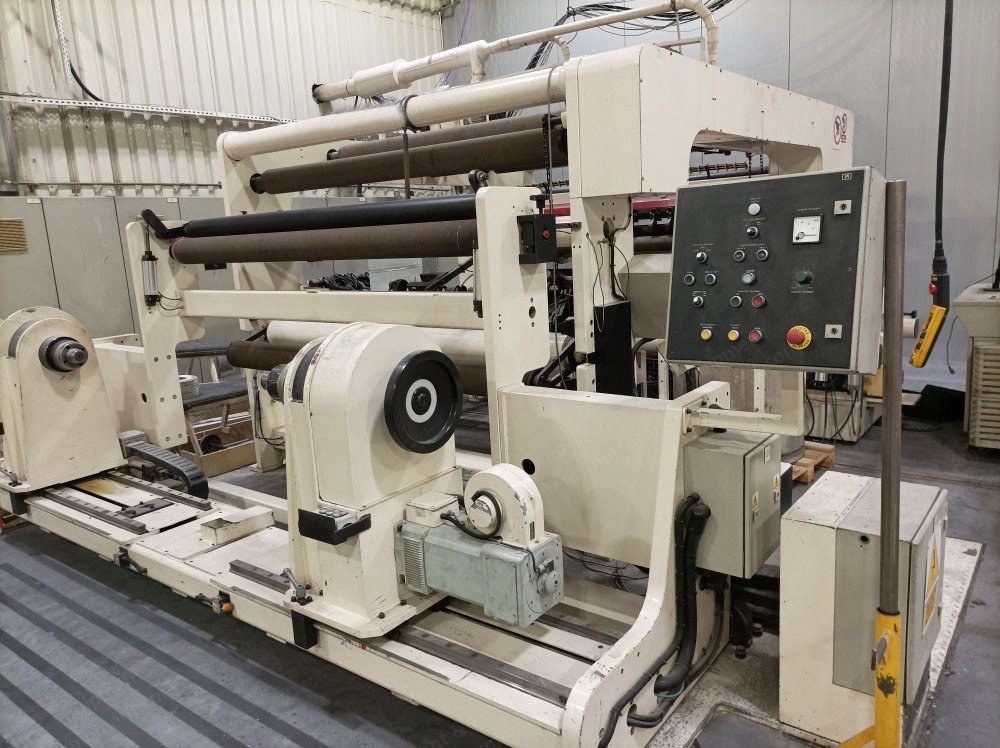

Atlas, II OCSE 620R, 1998, Film Width 2200mm, Speed 600 m/min, BOPP Film

Atlas, II OCSE 620R, 1998, Film Width 2200mm, Speed 600 m/min, BOPP Film

Description

  1. Overview
    1. Film type: BOPP
    2. Maximum film width: 2200 mm (86.6 in)
    3. Top speed: 600 m/min

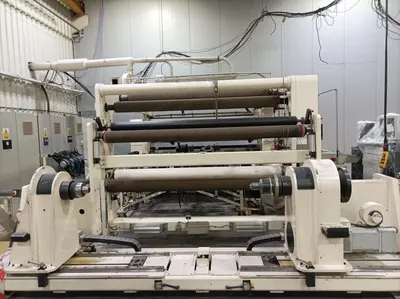

  2. Unwinding
    1. Maximum film width: 2200 mm (86.6 in)
    2. Maximum diameter: 1000 mm (39.4 in)
    3. Minimum width of core on unwinding: 700 mm (27.6 in)
    4. Core size: 6", 3"
    5. Drive: DC motor with brake

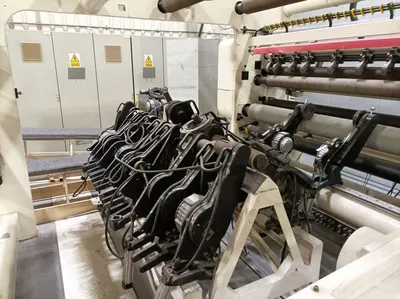

  3. Winding
    1. Number of winding stations: 5 packages
    2. Minimum winding width: 185 mm (7.3 in)
    3. Maximum winding width with single drive motor: 500 mm (19.7 in)
    4. Maximum winding width with two drive motors: 1000 mm (39.4 in)
    5. Maximum winding diameter: 600 mm (23.6 in)
    6. Core diameter: 6", 3"
    7. Winding station drive: DC motor 1 kW (1.3 hp)
  4. Edge Tracking System
    1. Sensor type: Ultrasonic
    2. Quantity: 1
  5. Specifications

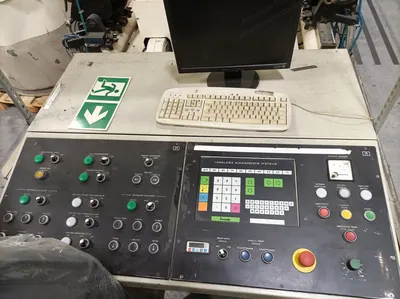

    1. Control system: Simatic S5 Siemens
