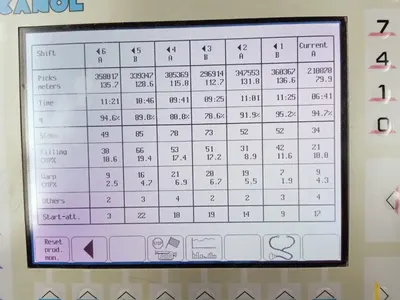

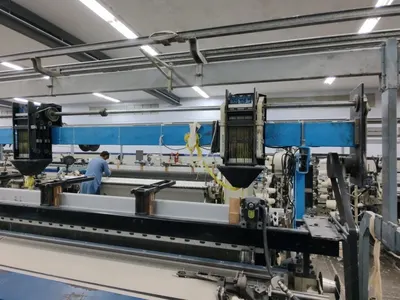

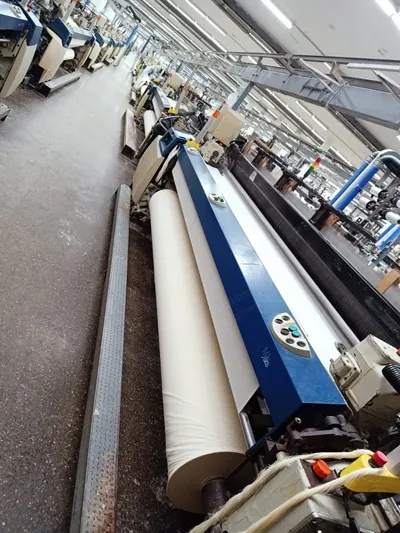

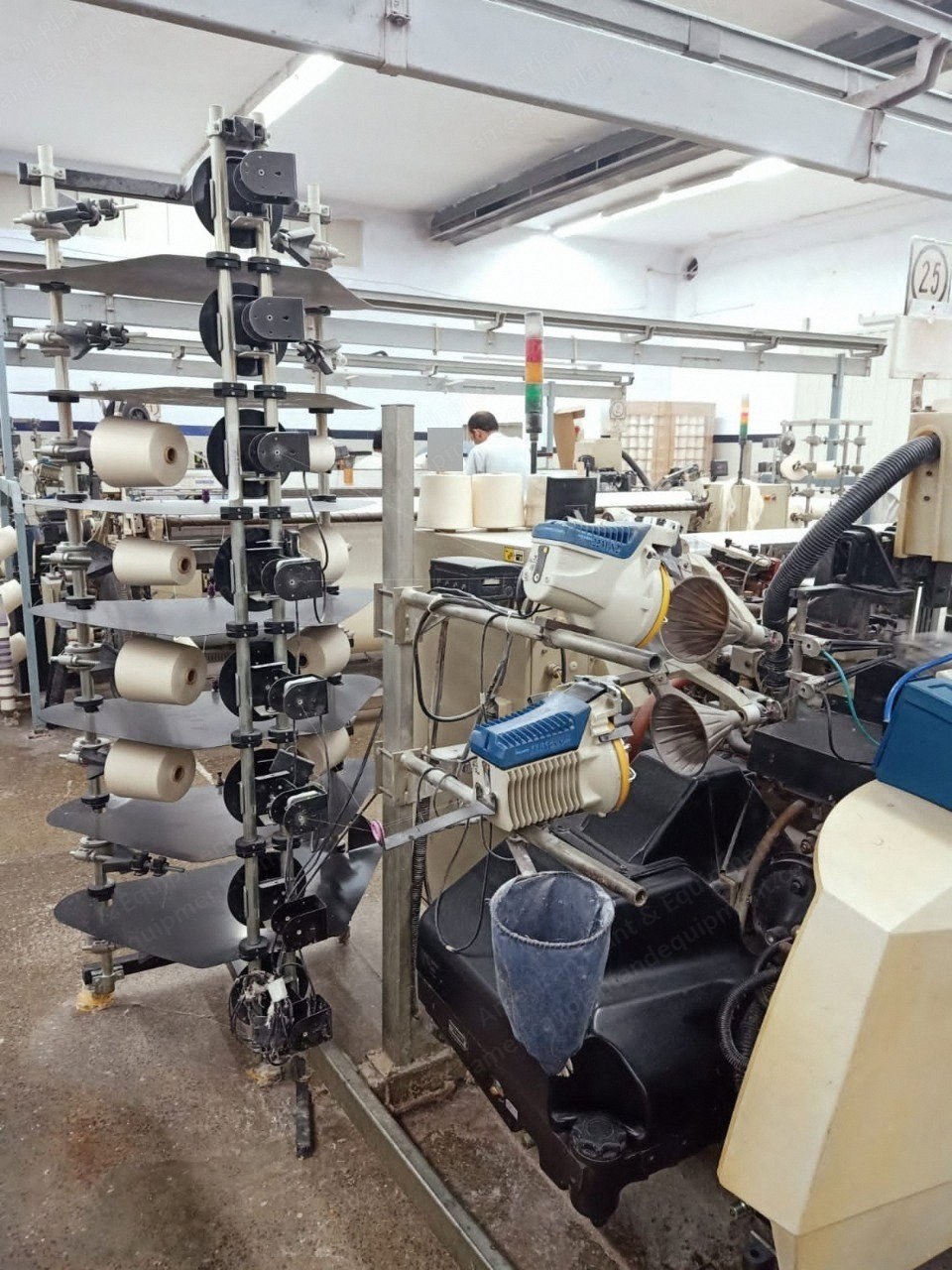

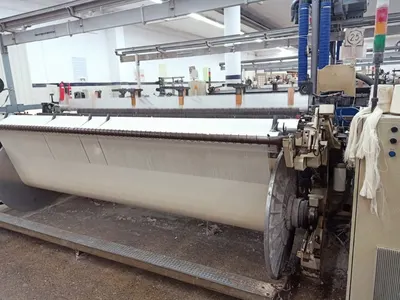

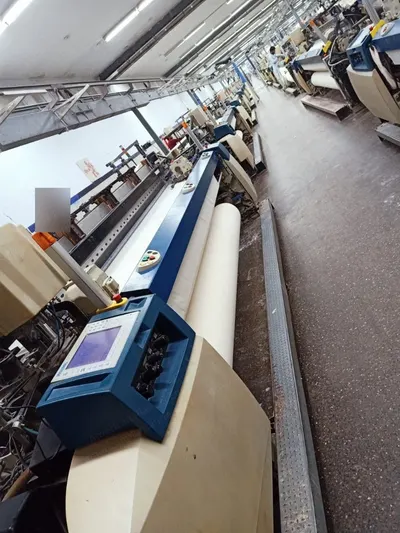

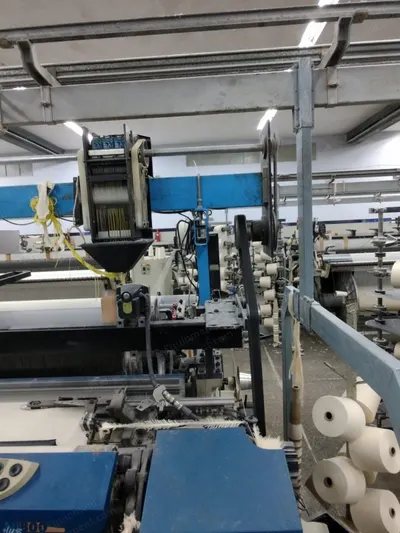

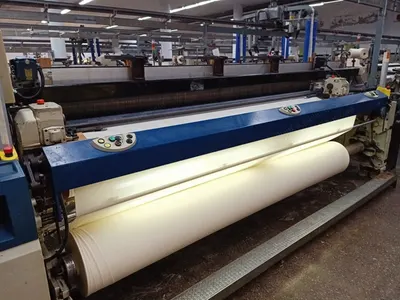

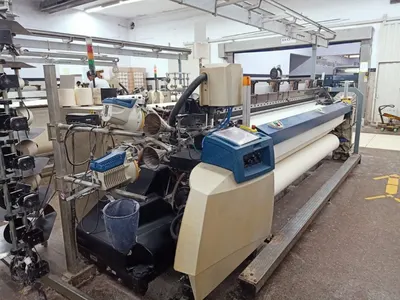

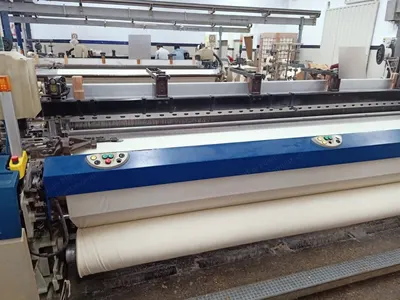

Description Overview Basic machine Integrated microprocessor monitoring and controlling all major mechanical and electronic functions With keyboard and display Sensitivity of detection and control through microprocessor with 4 color light column for stop indications Reed Motion Balanced sley, driven by conjugated cams Reed holder for profile reed Reed height: 110 mm Weft Insertion Pneumatic weft insertion by main and relay nozzle Timing of electro-magnetic valves set and controlled by microprocessor With electrical weft cutter Filling Detection Double optical, for the use of continuous reeds Color Selection 2 colors, pattern monitored by microprocessor Harness Drive With suspension elements (2-points drive) for 6 harness with DRC3 quick attachment Heald length: 13 inches Pick Finding Automatic slow motion device Automatic pick finder driving the harness independently Beam Bearings Bearings for the use of beam flanges Max. diameter: 1000 mm (with adaptors type DIN) Let-Off Motion Microprocessor controlled, with continuous driven motor Working in closed oil bath Back Rest Smooth hard-chromium plated feeler roller on ball bearings Whip roll tube hard-chromium plated on ball bearings With easing motion With warp tension measuring device type TSF Warp Stop Motion Electrical, Grob type KFW-2400/KFW-4200 Pitch: 30~25 mm Max. possible capacity: 6 electrodes With 6 serrated electrodes Zone detections on 24 looms also included Cloth Take-Up Take-up roll: coarse metallised Pressure roll: felt strip cover With second pressure roll Cloth roll wind up in the machine With fixed grooved anti-crease rod With metallised cloth roll Cloth wind up system: on-loom wind up system with 24 looms Selvedges With electronic driven independent selvedge devices LHS and RHS (ELSY) With collecting drum for waste Temples With fixed grooved/smooth spreader bar Temple with adjustable brackets 47 needle rings – varied angle – 2x24x0.75 + 42x1x0.50 + 1x0.38 Lubrications All main drive mechanisms running in oil bath with continuous forced oil circulation High pressure pump and oil filter Machine Drive By “SUMO” (voltage 380~460) – multispeed Electronically controlled slow forward and backward motion Max. production speed: 650 ppm Machine speed depending on: yarn and preparation quality, type of fabrics, shedding motion (number of harnesses), use of specific options Power Supply Tension: 400-415 volt – 3 phases – frequency: 50 hertz Maximum allowed variations: ±10% Additional Equipment Shedding motion: positive outside cam motion – Staubli type 1761 Frame up to 6 harnesses, 12 mm pitch, equipped with 6 drive levers Single barrel With leveling device Warp beam: single section ground beam, with flanges class 1, diameter 1000 mm Barrel diameter: 214 mm, with buttonholes Weft supply: horizontal bobbin rack for 4 bobbins diameter 320 2 weft accumulator heads with wobbling disc With balloon breaking cone Optional Equipment (Fitted on the Machine) Stepboard: weaver – and warp beam side P.F.T. system: programmable filling tensioner PC-communications: standard BICOM Package break detector: with 2 package break detector(s) Integral Parts and Accessories Quantity Size of yarn beam flange and barrel: 1,000 mm x 214 mm: 24 Cloth roll: 24 Heald frames: 108 Heald wire: rider-less C-type, 331 mm-L: 240,000 Droppers pin: 240,000 Cams 1/1 (4 per loom): 48 Cams 4/1 (5 per loom): 60 Repeat sets R-4: 12 Repeat sets R-5: 12 SpecificationsCapacity: 3400mm width
