High speed texturizing machine 1500 m/min type TMA for PES and PAM yarns (from 10 to 330 dtex)
The particular and straight course of the yarn from the bottom upwards, the simplicity and rapidity of the launch of yarn, make the machine particularly suitable for processing of delicate yarns
The two fronts are completely independent allowing the processing of different yarns
Equipment Included
168 collection positions (84 per side)
7 sections for each side
84 high temperature electric ovens with 2 ways (texturizing oven)
84 high temperature electric ovens with 2 ways (fixing oven)
4 feeding shafts

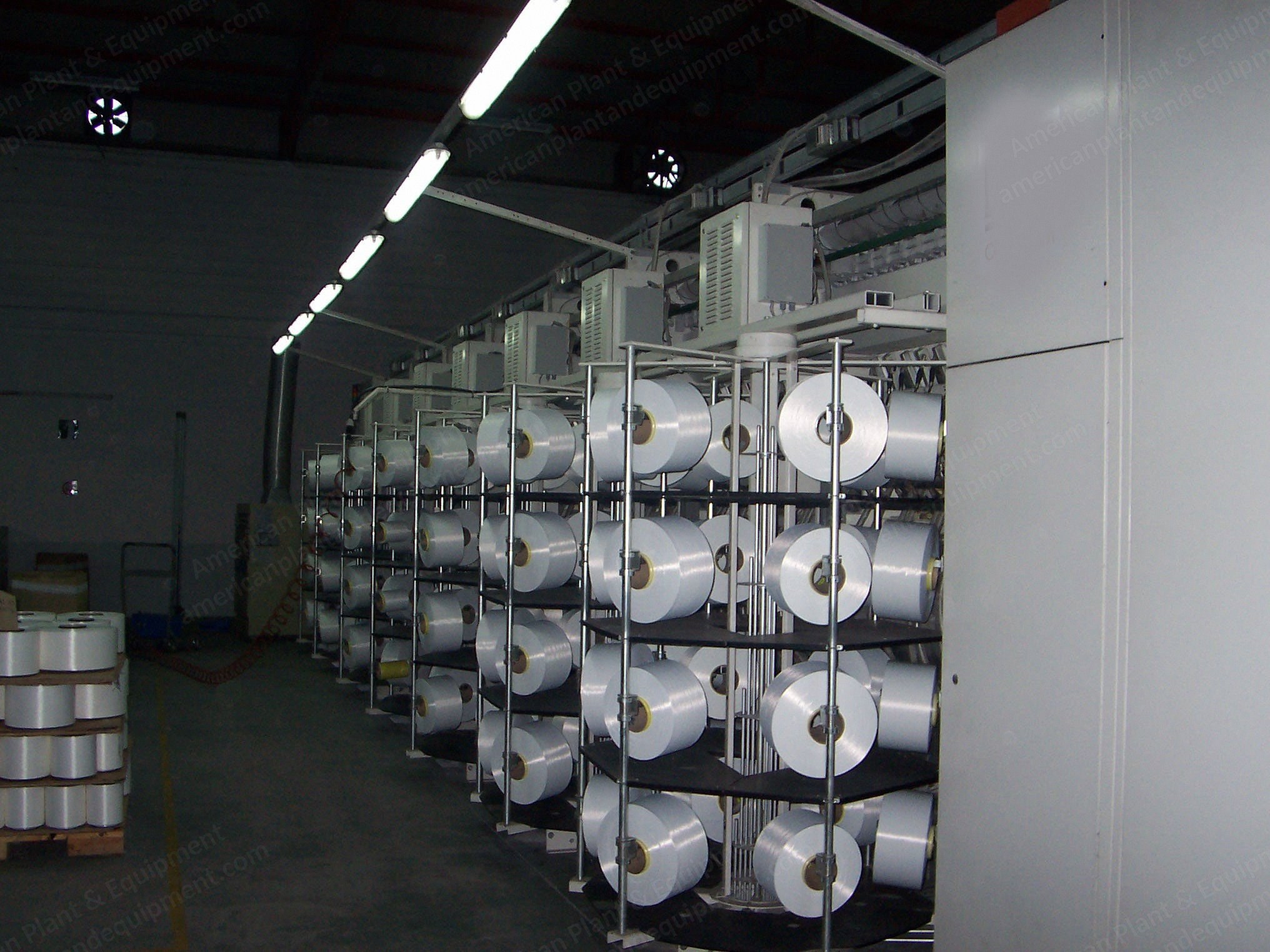

14 special rotary creel with 24 bobbins
168 Temco drive belt spindles
1 set of sensors
1 forced cooling system, complete with refrigeration and fume extraction
Electronics plant complete with Menegatto software
2 trolleys
Manual or automatic doffing

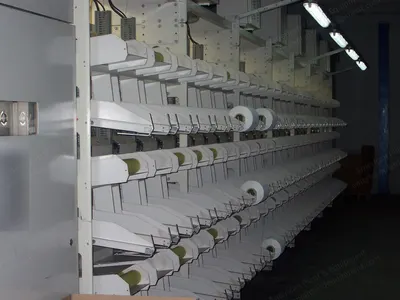

Collection Positions
7 sections for each side
168 collection positions
Collection units are suitable for high speed (1500 m/min) and for bobbins of high dimensions and weights
The unit is equipped with counterthrust pneumatic systems to maintain a constant pressure between bobbin and roll and reduce the vibrations
The groups are arranged on two independent fronts and each three floors
Bobbin Dimensions
Tube length 290 mm
Race 205 mm
Diameter 300 mm
Bobbins can be calibrated for both weight and length of yarns
Texturizing Oven
The texturizing ovens (first oven) are high-temperature electric and self-cleaning
Steel outer casing and high thickness insulation
Length 1000 mm
Temperature from 100 to 650 °C
Fixing Oven
The fixing ovens (second oven) are high-temperature electric and self-cleaning
Steel outer casing and high thickness insulation
Length 700 mm
Dimensions
Height 3000 mm
Width 10480 mm (auto doffing version)
Length 125360 mm (machine with 7 sections, 168 collection positions)
