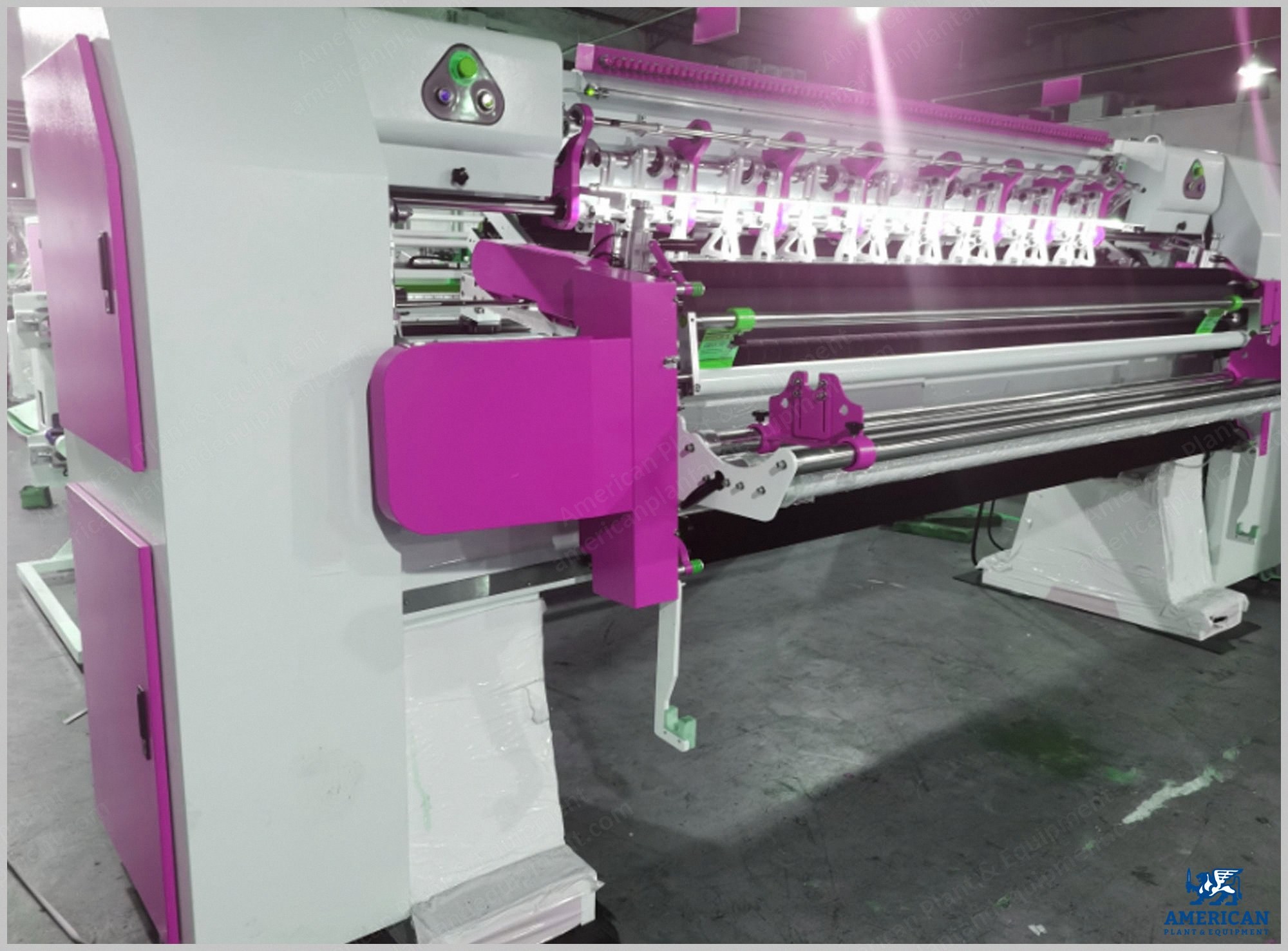

NovaStar, QL238, Chain Stitch Quilting Machine, 2387mm, 1200 RPM (New)

NovaStar, QL238, Chain Stitch Quilting Machine, 2387mm, 1200 RPM

Description

  1. Overview
    1. Chain stitch quilting machine
    2. Regular size 94" (2387 mm)
    3. Higher quilting quality, high quilting speed, higher quilting thickness
    4. Chainstitch
    5. Maximum working speed is to be 1200 rpm
    6. Various kinds of thick products which are made of foam like as the mattresses for bed are also available
    7. 14" color monitor shows information on current job graphically (e.g. stitches number, coordinate value, etc.)
  2. Specifications
    1. Overall (L x W x H): 5400 x 1650 x 2050 mm
    2. Overall weight: 4800 kg
    3. Quilting width: 2450 mm
    4. Row spacing: 50.8, 76.2, 127 (5"), 6.2, 76.2, 152.4 (6"), 3 bar
    5. Needle distance: 25.4
    6. X stroke: 304.8
    7. Quilting thickness: ≤80 mm
    8. Stitch length: 3 to 8 mm
    9. Output: 60 to 300 (meters/hour)
    10. Needle type: 24/180, 23/160, 22/140, 21/130
    11. Quilting speed: 500 to 1200 (rpm)
    12. Rate voltage: 380 V / 220 V, 50 Hz / 60 Hz
    13. Power: 7 kW
