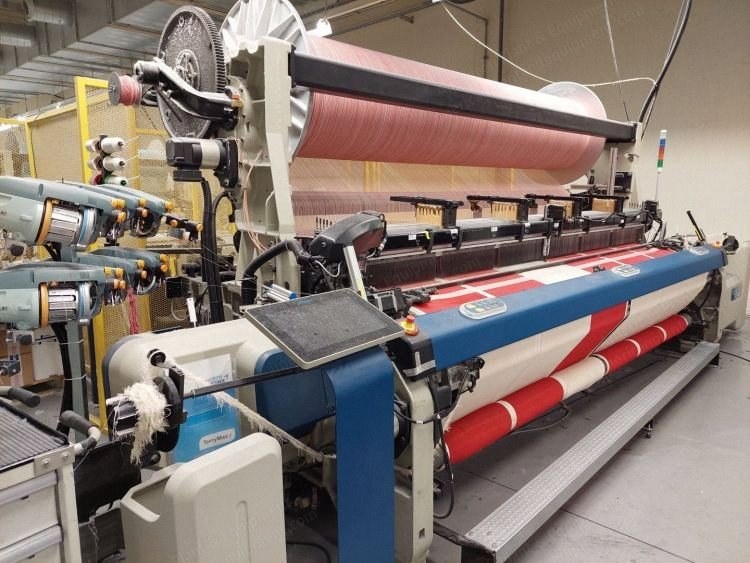

Description Overview Category: Terry looms Brand: Picanol Type: Terry Max-i Year of construction: 2015 Demo-loom Specifications Working width: 3600 mm Gripper-system on guided hooks With electronic dobby Staubli type S3020/C4 can 20 levers installed (= full) Equipped with: 8 weft colors, Sumo, 2 x Elo, ETU Ground and upper beam construction 8 weft accumulators Iro Luna X3 Feeder support 2 bobbin creels, weft detector 8 colors Ground warp tension roll diameter 140 mm with whip roll diameter 140 mm Pile tension roll with 2nd guiding roll Double warp detection Grob with each 2 warp stop detection bars 14 heald frames GTP Alu Power 124 DRC30 13”C Heddles and droppers as on the loom Electronic weft cutter Elsy LHS + RHS Waste cutter LHS + central + RHS Pinned take-up rolls left and right + pinned take-up roll full width (in wood box) Ground warp beam Ø 800 mm Pile warp beam Ø 1000 mm Waste-system with dustbin Interactive touchscreen PD15 Internal cloth roller drive with cloth roller
